Application example
Bracket for balcony power plant made of aluminium profiles

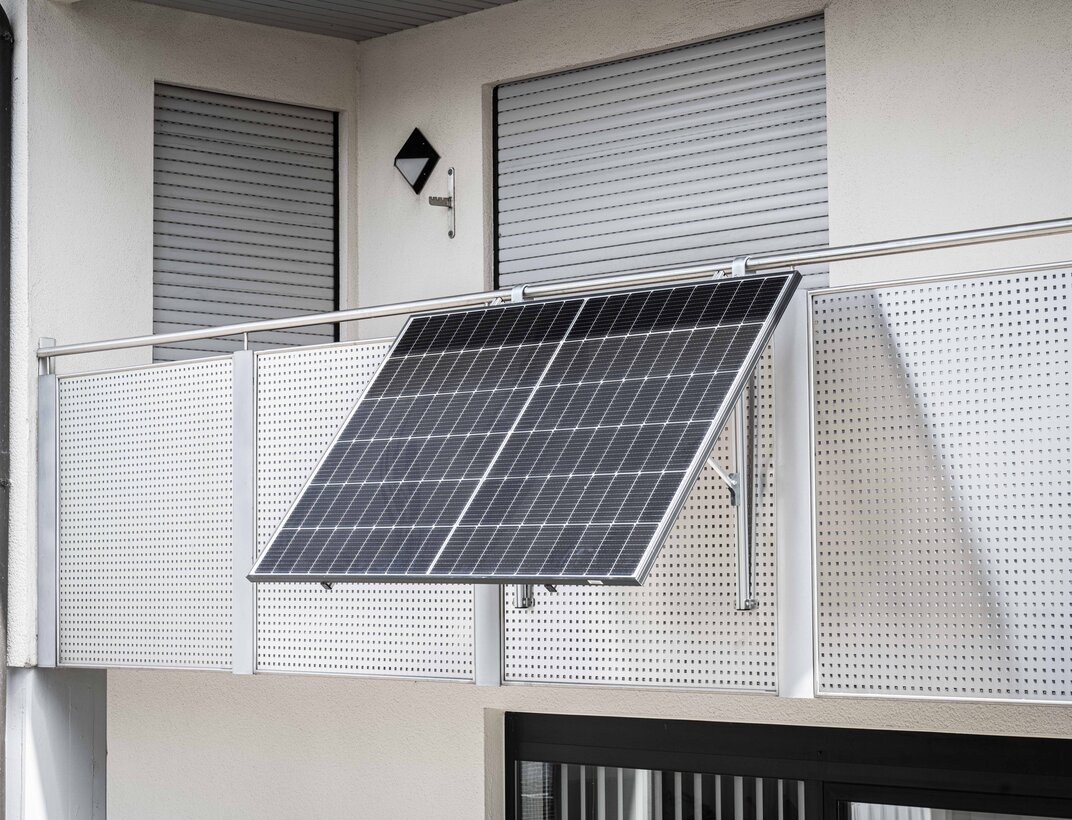

Simple and flexible installation for your balcony power plant: The MUNK Profile Technology mounting set enables PV modules to be quickly attached to balconies, railings and fences, with an adjustable angle of inclination for maximum energy yields.
With the MUNK Profiltechnik mounting set for balconies and railings, you can attach PV modules to balconies, parapets, fences and railings in next to no time.
The adjustable angle of inclination allows you to align the modules perfectly and thus maximise your energy yield.

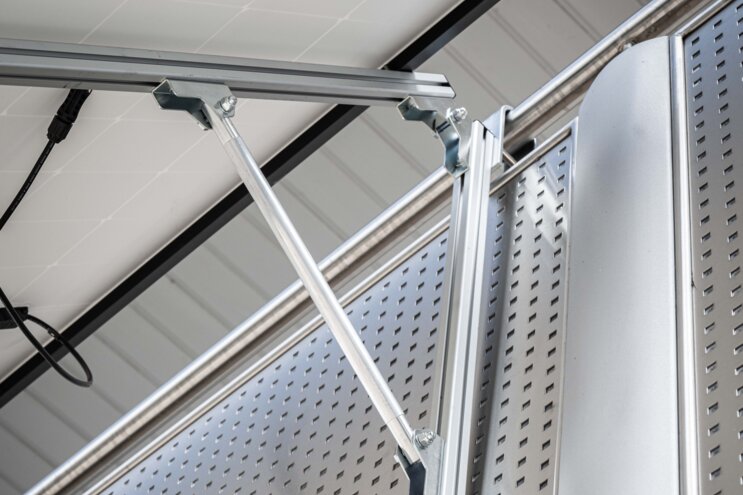

The brackets are made of attractive and robust aluminium profiles and offer high quality and strong corrosion resistance.
Technical data:
- Material: Aluminium/stainless steel
- Colour: Silver/anodised aluminium

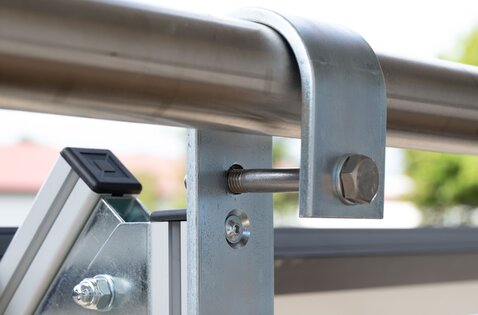

- Max. Diameter handrail balcony railing: 50 mm
- Max. Module length: 210 cm
- Max. Module width: 120 cm

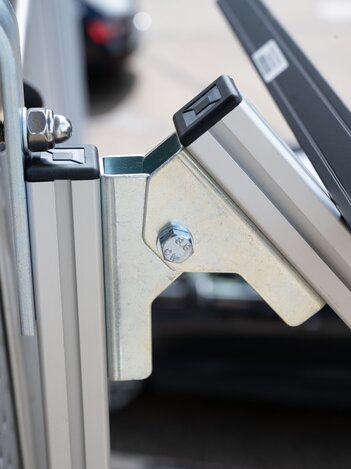

- Inclination angle: individually adjustable without tools
- Weight: approx. 3 kg
- Safety. Made in Germany.
Scope of delivery:

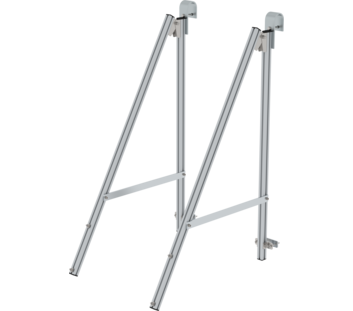

- 2x bracket set for balcony/railing (for 1 PV solar module) including fastening material for the solar module
- 1x mounting instructions
- To mount several solar modules, please order the corresponding number of bracket sets. These can be combined with each other.
