Fire service ladder: replace rung

Our portable fire service ladders are designed in such a way that individual defective rungs can be replaced by competent persons. When replacing rungs, make sure that defective rungs are replaced by defect-free rungs of the same type. The strength of the side-rails must not be impaired.

Replacing rungs: step by step

© MUNK GmbH

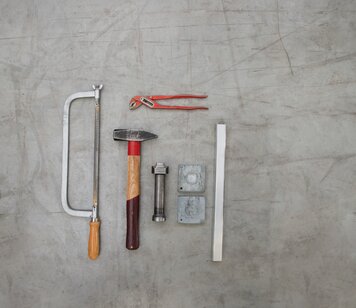

Saw, hammer, water pump pliers, flaring tool, new rung

© MUNK GmbH

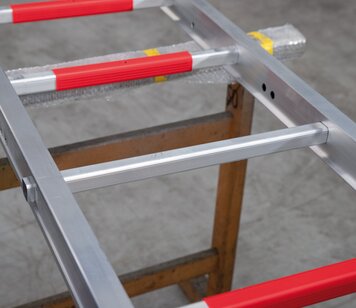

Damaged rung to be replaced. Note: Replace max. two rungs on one ladder section using this method.

© MUNK GmbH

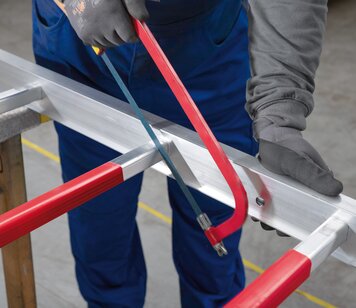

Saw out damaged rungs at a distance of approx. 20 mm from the inner edge of the side-rail.

© MUNK GmbH

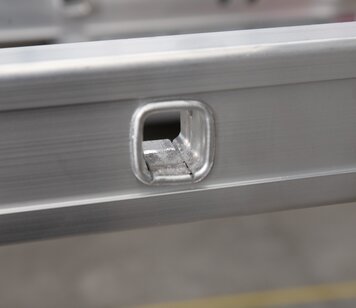

Saw in the flanged rung ends in two places. Caution: Do not damage the side-rail of the ladder.

© MUNK GmbH

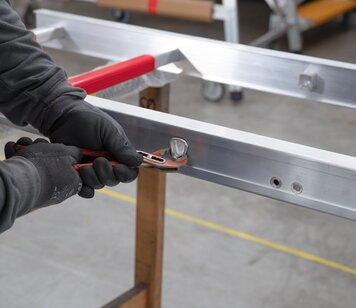

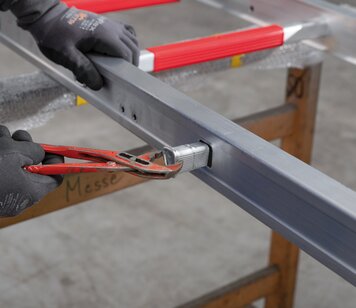

Press the end of the rung together with water pump pliers.

© MUNK GmbH

Remove the compressed rung from the ladder.

© MUNK GmbH

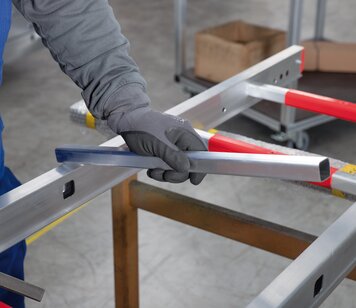

Cut replacement rung to size. Note: Length of rung = outer width of ladder section + 6 mm

© MUNK GmbH

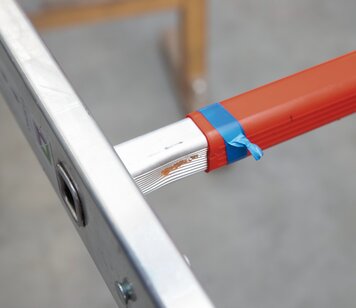

Insert the rungs into the square opening. Note: The rung must protrude evenly on both sides.

© MUNK GmbH

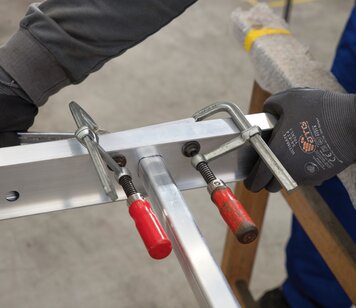

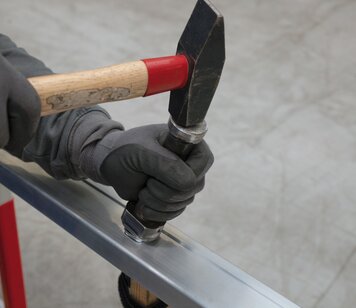

Fix the conductor upright on the flare plate. Coat the flanging head with grease. Rotate the flanging head at an angle until the material is flush with the bar. Repeat on the other side. Caution: Prevent spar deformation, e.g. by using squared timber strips.

© MUNK GmbH

Insert the widening device into the rung.

© MUNK GmbH

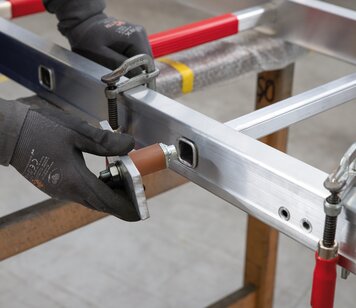

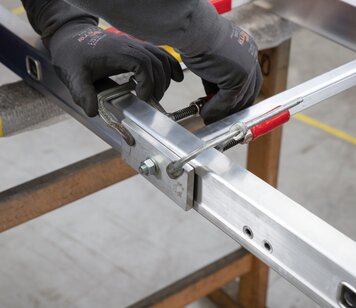

Fix the expander to the ladder stile. Tighten nut until rung rests against inner ladder stile. Note: slight, visible widening without gap between rung and stile. Caution: strong tightening can cause cracks on the side-rail.

© MUNK GmbH

Loosen nut and screw clamp. Check that the rung is firmly seated, Note: Then fit the rung protector, see

Replacing rung protection
