Order no.
: 035528

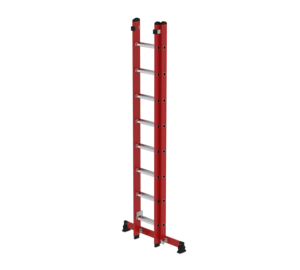

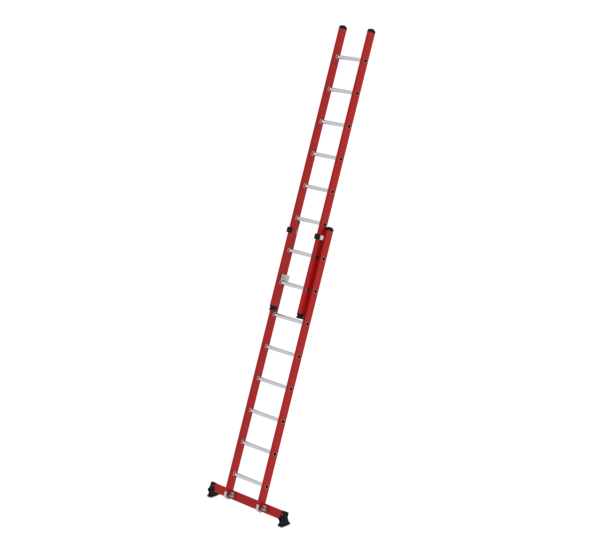

2-section GRP/aluminium rung extension ladder with nivello® traverse
€ 1,007.00
RRP without VAT
Specifications
Working height
5.3 m
Step design
Rungs
Number of steps/rungs
2x
8 rungs
Step/Rung height
30 mm
Step depth
30 mm
Step/Rung distance
280 mm
Retracted length
2.45 m
Extended length
4.2 m
Outer width
420 mm
Stabiliser width
930 mm
Depth of side-rails
73 mm
Width of side-rails
25 mm
Design type
To lean against | 2-part
Weight
14.4 kg
Transport dimensions
2450 x 425 x 148 mm, 14.4 kg
Business division
MUNK Günzburger Steigtechnik
Order no.
035528
Price
€ 1,007.00
Information
- Rung push-up extension ladder made of glass-fibre reinforced plastic / aluminium
- Side-rails made of reinforced fibre glass rectangular tube profiles (min. 10 years ageing resistance)
- Rectangular rungs grooved on both sides 30 x 30 mm, aluminium
- 4-fold edged rung-to-side-rail connection
- Easy height adjustment from rung to rung
- From size 2 x 14 rungs: Convenient ability to adjust the height from rung to rung by pulley with automatically acting locking hook
- Upper ladder from size 2 x 12 with wall wheels
- Corrosion-resistant guide fixtures
- Upper ladders up to 3.0 m with nivello® ladder shoes
- Rung distance: 280 mm
- Ladder width: 420 mm (without stabiliser)
- Maximum load: 150 kg
- Suitable for working near or on live parts
- Tested up to 1000 V as per DIN EN 61478:2002 Clause 6.5.1 and A1:2004 Category 1
- Note: In accordance with standards, the attached push-up extension ladder section cannot be separated from the ladder with lengths over 3.0 m
- Note: Products with GRP content are excluded from exchange due to their sensitivity, the statutory warranty applies (resistance to ageing 10 years).
- Corporate certification: ISO 9001
- Corporate certification: EN 1090
- Corporate certification: EcoVadis
- RoHS
- REACH
- The MUNK Group complies with a Code of Conduct
- The Supply Chain Act does not apply due to our size
- The materials used are listed in the technical specification
- Resource-saving production: own photovoltaic systems
- Energy-efficient consumption during production: LED lighting
- Repairability, durability and quality: 15-year warranty on series products made in Germany
- Recyclability: Our products are mostly made of aluminium, steel or wood and can be fed directly into the recycling process.
- Socially acceptable working conditions in production: fair wages, gender equality
- Economical and recyclable packaging: no use of polystyrene, predominantly use of wood and cardboard, small amounts of plastic
- No health hazards for the users
Scope of supply
- Ladder: 1 x
- Stabiliser (enclosed separately): 1 x
- Instructions for use and operation: 1 x
Safety. Made in Germany.
Comparison table
| Product name | 2-section GRP/aluminium rung extension ladder with nivello® traverse 2x8 rungs | 2-section GRP/aluminium rung extension ladder with nivello® traverse 2x10 rungs | 2-section GRP/aluminium rung extension ladder with nivello® traverse 2x12 rungs |
|---|---|---|---|
| Working height | 5.3 m | 6.1 m | 7.2 m |
| Step design | Rungs | Rungs | Rungs |
| Number of steps/rungs | 2x8 rungs | 2x10 rungs | 2x12 rungs |
| Step/Rung height | 30 mm | 30 mm | 30 mm |
| Step depth | 30 mm | 30 mm | 30 mm |
| Step/Rung distance | 280 mm | 280 mm | 280 mm |
| Retracted length | 2.45 m | 3 m | 3.6 m |
| Extended length | 4.2 m | 5 m | 6.1 m |
| Outer width | 420 mm | 420 mm | 420 mm |
| Stabiliser width | 930 mm | 930 mm | 1.2 m |
| Depth of side-rails | 73 mm | 73 mm | 73 mm |
| Width of side-rails | 25 mm | 25 mm | 25 mm |
| Design type | To lean against | 2-part | To lean against | 2-part | To lean against | 2-part |
| Weight | 14.4 kg | 17.4 kg | 21.3 kg |
| Transport dimensions | 2450 x 425 x 148 mm, 14.4 kg | 3011 x 429 x 148 mm, 17.4 kg | 3588 x 429 x 149 mm, 21.3 kg |
| Business division | MUNK Günzburger Steigtechnik | MUNK Günzburger Steigtechnik | MUNK Günzburger Steigtechnik |
| Order no. | 035528 | 035530 | 035532 |
| Price | € 1,007.00 | € 1,069.00 | € 1,305.00 |
| Buy online |
Technical changes and price changes reserved. Dimensions and weights are approximate values. Liability for errors and mistakes excluded. Illustrations similar, some illustrations show special equipment. Preview images are representative of a product family and may therefore differ visually from the actual product you are looking for, e.g. in terms of number of steps or material.
