Order no.
: 036108

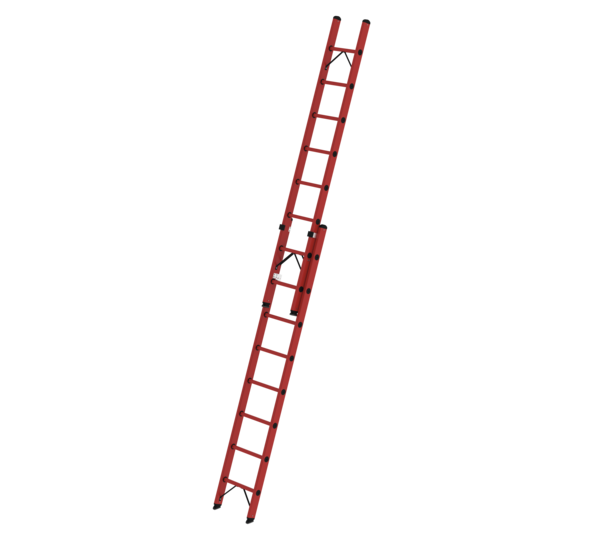

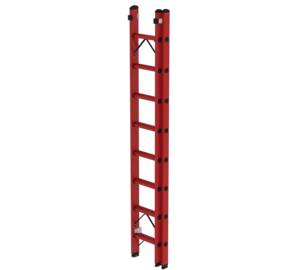

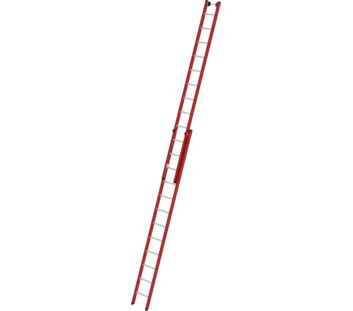

2-section rung push-up extension ladder made of glass-fibre reinforced plastic without stabiliser
€ 1,006.00
RRP without VAT
Specifications
Working height
5.2 m
Step design
Rungs
Number of steps/rungs
2x
8 rungs
Step/Rung height
29 mm
Step depth
28 mm
Step/Rung distance
280 mm
Retracted length
2.5 m
Extended length
4.18 m
Outer width
420 mm
Depth of side-rails
73 mm
Width of side-rails
25 mm
Design type
To lean against | 2-part
Weight
15.5 kg
Transport dimensions
2480 x 428 x 143 mm, 15.5 kg
Business division
MUNK Günzburger Steigtechnik
Article no.
036108
Price
€ 1,006.00
Information
- Rung push-up extension ladder made of glass-fibre reinforced plastic
- Side-rails and rungs made of reinforced fibre glass plastic profiles (min. 10 years ageing resistance)
- Rectangular rungs grooved on both sides, 28 x 29 mm
- By using the metal suspension step, the insulation voltage is reduced to 1,000 V
- High-strength rung-to-side-rail connection
- Galvanised steel fittings
- Easy height adjustment from rung to rung
- Upper ladder from size 2x12 rungs with wall castors
- Corrosion-resistant guide fixtures
- Upper ladders up to 3.0 m with nivello® ladder shoes
- Rung distance: 280 mm
- Ladder width: 420 mm (without stabiliser)

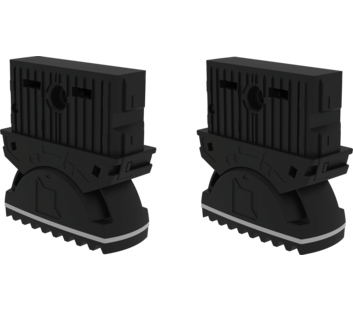

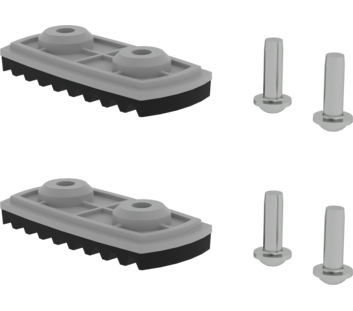

- nivello® ladder shoes with patented 2-axis inclination technology
- Maximum load: 150 kg

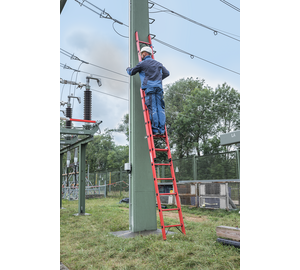

- Suitable for working near or on live parts
- Push-up extension ladder tested in accordance with DIN EN 131. The design takes into account EN 61478:2002 (Cat. 1: 28,000 V)
- Note: In accordance with standards, the attached push-up extension ladder section cannot be separated from the ladder with lengths over 3.0 m
- Note: Straight ladders over 3.0 m can be used without a stabiliser only when they are used exclusively for their intended purpose (e.g. permanently installed, fitted with hooks, fastened with a belt)
- Note: Products with GRP content are excluded from exchange due to their sensitivity, the statutory warranty applies (resistance to ageing 10 years).
- Corporate certification: ISO 9001
- Corporate certification: EN 1090
- Corporate certification: EcoVadis
- RoHS
- REACH
- The MUNK Group complies with a Code of Conduct
- The Supply Chain Act does not apply due to our size
- The materials used are listed in the technical specification
- Resource-saving production: own photovoltaic systems
- Energy-efficient consumption during production: LED lighting
- Repairability, durability and quality: 15-year warranty on series products made in Germany
- Recyclability: Our products are mostly made of aluminium, steel or wood and can be fed directly into the recycling process.
- Socially acceptable working conditions in production: fair wages, gender equality
- Economical and recyclable packaging: no use of polystyrene, predominantly use of wood and cardboard, small amounts of plastic
- No health hazards for the users
Scope of supply
- Ladder: 1 x
- Instructions for use and operation: 1 x
Safety. Made in Germany.
Comparison table
| Product name | 2-section rung push-up extension ladder made of glass-fibre reinforced plastic without stabiliser 2x8 rungs | 2-section rung push-up extension ladder made of glass-fibre reinforced plastic without stabiliser 2x10 rungs | 2-section rung push-up extension ladder made of glass-fibre reinforced plastic without stabiliser 2x12 rungs |
|---|---|---|---|
| Working height | 5.2 m | 6.3 m | 7.4 m |
| Step design | Rungs | Rungs | Rungs |
| Number of steps/rungs | 2x8 rungs | 2x10 rungs | 2x12 rungs |
| Step/Rung height | 29 mm | 29 mm | 29 mm |
| Step depth | 28 mm | 28 mm | 28 mm |
| Step/Rung distance | 280 mm | 280 mm | 280 mm |
| Retracted length | 2.5 m | 3 m | 3.61 m |
| Extended length | 4.18 m | 5.29 m | 6.41 m |
| Outer width | 420 mm | 420 mm | 420 mm |
| Depth of side-rails | 73 mm | 73 mm | 73 mm |
| Width of side-rails | 25 mm | 25 mm | 25 mm |
| Design type | To lean against | 2-part | To lean against | 2-part | To lean against | 2-part |
| Weight | 15.5 kg | 18.5 kg | 22.5 kg |
| Transport dimensions | 2480 x 428 x 143 mm, 15.5 kg | 3040 x 427 x 143 mm, 18.5 kg | 3600 x 427 x 143 mm, 22.5 kg |
| Business division | MUNK Günzburger Steigtechnik | MUNK Günzburger Steigtechnik | MUNK Günzburger Steigtechnik |
| Article no. | 036108 | 036110 | 036112 |
| Price | € 1,006.00 | € 1,171.00 | € 1,336.00 |
| Buy online |
Technical changes and price changes reserved. Dimensions and weights are approximate values. Liability for errors and mistakes excluded. Illustrations similar, some illustrations show special equipment. Preview images are representative of a product family and may therefore differ visually from the actual product you are looking for, e.g. in terms of number of steps or material.
