Order no.
: 021714

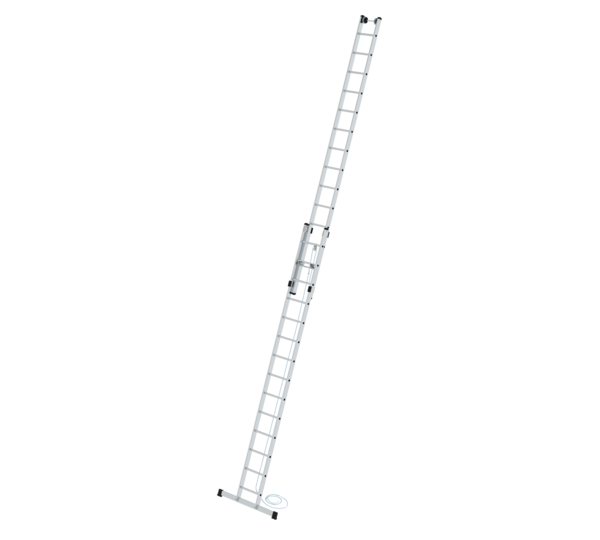

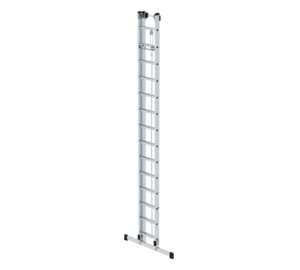

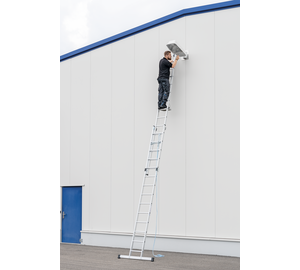

2-section rung rope-extension ladder with standard stabiliser
€ 780.00
RRP without VAT
Specifications
Working height
8.3 m
Step design
Rungs
Number of steps/rungs
2x
14 rungs
Step/Rung height
30 mm
Step depth
30 mm
Step/Rung distance
280 mm
Retracted length
4.18 m
Extended length
7.22 m
Outer width
420 mm
Stabiliser width
1.2 m
Depth of side-rails
73 mm
Width of side-rails
25 mm
Design type
To lean against | 2-part
Weight
22.2 kg
Transport dimensions
4125 x 445 x 169 mm, 22.2 kg
Business division
MUNK Günzburger Steigtechnik
Article no.
021714
Price
€ 780.00
Information
- Rung rope-extension ladder made of aluminium
- Stable rectangular tube side-rails
- Rectangular rungs grooved on both sides, 30 x 30 mm
- 4-fold edged rung-to-side-rail connection

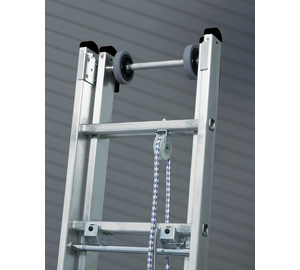

- Convenient height adjustment from rung to rung thanks to two pulleys with plastic cable
- Upper ladder with wall wheels
- Corrosion-resistant guide fixtures with sliding guides
- Rung distance: 280 mm
- Ladder width: 470 mm (without stabiliser)
- Maximum load: 150 kg
- Standard stabiliser with non-slip ladder shoes with optimum width for the selected product. Ensures maximum stability and safe ascent for straight ladders over 3.0 m. The stabiliser is enclosed separately and is screwed to the lower end of the rail in two places
- Note: In accordance with standards, the attached push-up extension ladder section cannot be separated from the ladder with lengths over 3.0 m
- Corporate certification: ISO 9001
- Corporate certification: EN 1090
- Corporate certification: EcoVadis
- RoHS
- REACH
- The MUNK Group complies with a Code of Conduct
- The Supply Chain Act does not apply due to our size
- The materials used are listed in the technical specification
- Resource-saving production: own photovoltaic systems
- Energy-efficient consumption during production: LED lighting
- Repairability, durability and quality: 15-year warranty on series products made in Germany
- Recyclability: Our products are mostly made of aluminium, steel or wood and can be fed directly into the recycling process.
- Socially acceptable working conditions in production: fair wages, gender equality
- Economical and recyclable packaging: no use of polystyrene, predominantly use of wood and cardboard, small amounts of plastic
- No health hazards for the users
Scope of supply
- Ladder: 1 x
- Stabiliser (enclosed separately): 1 x
- Instructions for use and operation: 1 x
Certificates
Safety. Made in Germany.
Comparison table
| Product name | 2-section rung rope-extension ladder with standard stabiliser 2x14 rungs | 2-section rung rope-extension ladder with standard stabiliser 2x16 rungs | 2-section rung rope-extension ladder with standard stabiliser 2x18 rungs | 2-section rung rope-extension ladder with standard stabiliser 2x20 rungs |
|---|---|---|---|---|
| Working height | 8.3 m | 9.4 m | 10.3 m | 11.4 m |
| Step design | Rungs | Rungs | Rungs | Rungs |
| Number of steps/rungs | 2x14 rungs | 2x16 rungs | 2x18 rungs | 2x20 rungs |
| Step/Rung height | 30 mm | 30 mm | 30 mm | 30 mm |
| Step depth | 30 mm | 30 mm | 30 mm | 30 mm |
| Step/Rung distance | 280 mm | 280 mm | 280 mm | 280 mm |
| Retracted length | 4.18 m | 4.74 m | 5.3 m | 5.86 m |
| Extended length | 7.22 m | 8.34 m | 9.18 m | 10.3 m |
| Outer width | 420 mm | 420 mm | 420 mm | 420 mm |
| Stabiliser width | 1.2 m | 1.2 m | 1.2 m | 1.2 m |
| Depth of side-rails | 73 mm | 85 mm | 98 mm | 98 mm |
| Width of side-rails | 25 mm | 25 mm | 25 mm | 25 mm |
| Design type | To lean against | 2-part | To lean against | 2-part | To lean against | 2-part | To lean against | 2-part |
| Weight | 22.2 kg | 28.2 kg | 33.2 kg | 36.7 kg |
| Transport dimensions | 4125 x 445 x 169 mm, 22.2 kg | 4684 x 445 x 186 mm, 28.2 kg | 5245 x 445 x 207 mm, 33.2 kg | 5805 x 445 x 201 mm, 36.7 kg |
| Business division | MUNK Günzburger Steigtechnik | MUNK Günzburger Steigtechnik | MUNK Günzburger Steigtechnik | MUNK Günzburger Steigtechnik |
| Article no. | 021714 | 021716 | 021718 | 021720 |
| Price | € 780.00 | € 870.00 | € 970.00 | € 1,050.00 |
| Buy online |
Technical changes and price changes reserved. Dimensions and weights are approximate values. Liability for errors and mistakes excluded. Illustrations similar, some illustrations show special equipment. Preview images are representative of a product family and may therefore differ visually from the actual product you are looking for, e.g. in terms of number of steps or material.
