Order no.
: 021214

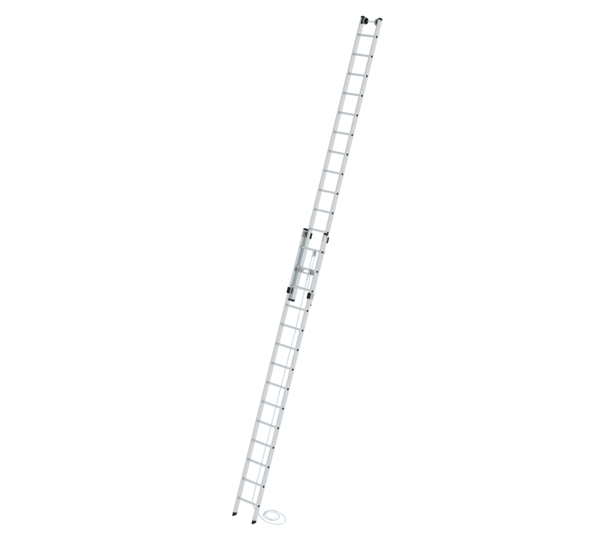

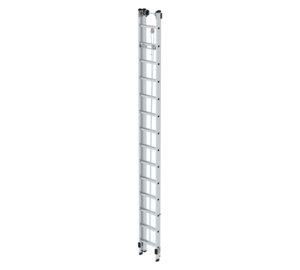

2-section rung rope-extension ladder without stabiliser
€ 737.00
RRP without VAT
Specifications
Working height
8.3 m
Step design
Rungs
Number of steps/rungs
2x
14 rungs
Step/Rung height
30 mm
Step depth
30 mm
Step/Rung distance
280 mm
Retracted length
4.18 m
Extended length
7.22 m
Outer width
420 mm
Depth of side-rails
73 mm
Width of side-rails
25 mm
Design type
To lean against | 2-part
Weight
21 kg
Transport dimensions
4160 x 445 x 165 mm, 21 kg
Business division
MUNK Günzburger Steigtechnik
Article no.
021214
Price
€ 737.00
Information
- Rung rope-extension ladder made of aluminium
- Stable rectangular tube side-rails
- Rectangular rungs grooved on both sides, 30 x 30 mm
- 4-fold edged rung-to-side-rail connection

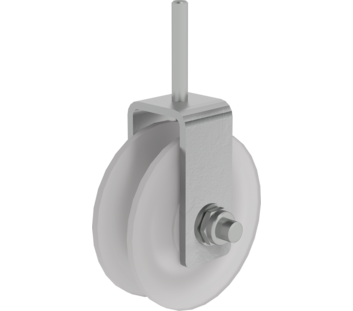

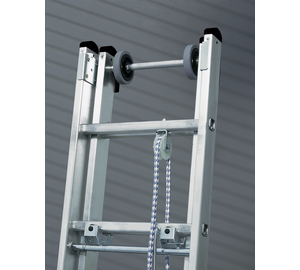

- Convenient height adjustment from rung to rung thanks to two pulleys with plastic cable

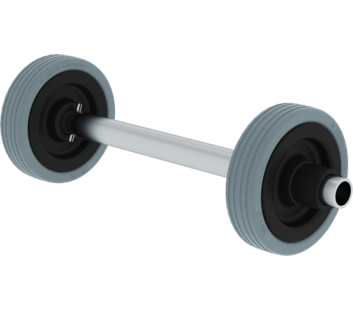

- Upper ladder with wall wheels
- Corrosion-resistant guide fixtures with sliding guides
- Rung distance: 280 mm
- Ladder width: 470 mm (without stabiliser)
- Maximum load: 150 kg
- Note: Straight ladders over 3.0 m can be used without a stabiliser only when they are used exclusively for their intended purpose (e.g. permanently installed, fitted with hooks, fastened with a belt)

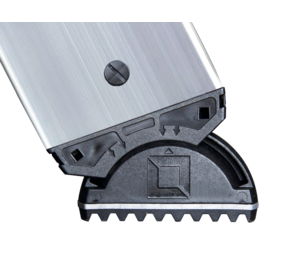

- nivello® ladder shoes with patented 2-axis inclination technology
- Corporate certification: ISO 9001
- Corporate certification: EN 1090
- Corporate certification: EcoVadis
- RoHS
- REACH
- The MUNK Group complies with a Code of Conduct
- The Supply Chain Act does not apply due to our size
- The materials used are listed in the technical specification
- Resource-saving production: own photovoltaic systems
- Energy-efficient consumption during production: LED lighting
- Repairability, durability and quality: 15-year warranty on series products made in Germany
- Recyclability: Our products are mostly made of aluminium, steel or wood and can be fed directly into the recycling process.
- Socially acceptable working conditions in production: fair wages, gender equality
- Economical and recyclable packaging: no use of polystyrene, predominantly use of wood and cardboard, small amounts of plastic
- No health hazards for the users
Scope of supply
- Ladder: 1 x
- Instructions for use and operation: 1 x
Safety. Made in Germany.
Comparison table
| Product name | 2-section rung rope-extension ladder without stabiliser 2x14 rungs | 2-section rung rope-extension ladder without stabiliser 2x16 rungs | 2-section rung rope-extension ladder without stabiliser 2x18 rungs | 2-section rung rope-extension ladder without stabiliser 2x20 rungs |
|---|---|---|---|---|
| Working height | 8.3 m | 9.4 m | 10.3 m | 11.4 m |
| Step design | Rungs | Rungs | Rungs | Rungs |
| Number of steps/rungs | 2x14 rungs | 2x16 rungs | 2x18 rungs | 2x20 rungs |
| Step/Rung height | 30 mm | 30 mm | 30 mm | 30 mm |
| Step depth | 30 mm | 30 mm | 30 mm | 30 mm |
| Step/Rung distance | 280 mm | 280 mm | 280 mm | 280 mm |
| Retracted length | 4.18 m | 4.74 m | 5.3 m | 5.86 m |
| Extended length | 7.22 m | 8.34 m | 9.18 m | 10.3 m |
| Outer width | 420 mm | 420 mm | 420 mm | 420 mm |
| Depth of side-rails | 73 mm | 85 mm | 98 mm | 98 mm |
| Width of side-rails | 25 mm | 25 mm | 25 mm | 25 mm |
| Design type | To lean against | 2-part | To lean against | 2-part | To lean against | 2-part | To lean against | 2-part |
| Weight | 21 kg | 27 kg | 32.5 kg | 35.5 kg |
| Transport dimensions | 4160 x 445 x 165 mm, 21 kg | 4730 x 445 x 182 mm, 27 kg | 5290 x 445 x 205 mm, 32.5 kg | 5822 x 445 x 205 mm, 35.5 kg |
| Business division | MUNK Günzburger Steigtechnik | MUNK Günzburger Steigtechnik | MUNK Günzburger Steigtechnik | MUNK Günzburger Steigtechnik |
| Article no. | 021214 | 021216 | 021218 | 021220 |
| Price | € 737.00 | € 885.00 | € 1,174.00 | € 1,328.00 |
| Buy online |
Technical changes and price changes reserved. Dimensions and weights are approximate values. Liability for errors and mistakes excluded. Illustrations similar, some illustrations show special equipment. Preview images are representative of a product family and may therefore differ visually from the actual product you are looking for, e.g. in terms of number of steps or material.
