Order no.
: 040660

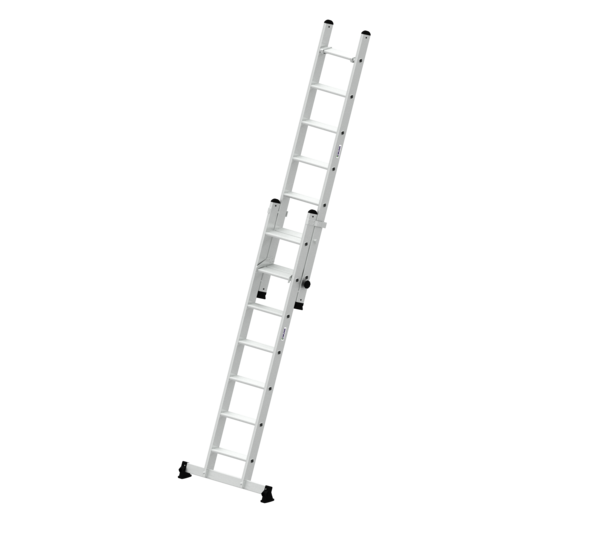

2-section step push-up extension ladder with nivello® stabiliser
€ 637.00
RRP without VAT
Specifications
Working height
4.4 m
Step design
Steps
Number of steps/rungs
2x
7 steps
Step depth
80 mm
Step/Rung distance
263 mm
Retracted length
2.21 m
Extended length
3.62 m
Inclination
70 °
Outer width
420 mm
Stabiliser width
930 mm
Depth of side-rails
85 mm
Width of side-rails
25 mm
Design type
To lean against | 2-part
Weight
16.4 kg
Transport dimensions
2210 x 500 x 200 mm, 16.4 kg
Predecessor product
040640
Business division
MUNK Günzburger Steigtechnik
Article no.
040660
Price
€ 637.00
Information
- Aluminium stepladder
- Stable rectangular tube side-rails
- Grooved steps with a depth of 80 mm
- 4-fold edged step-to-side-rail connection
- Simple height adjustment and safer locking from the front due to corrosion-resistant push-fit fittings on the sides
- Extra wide base area of 170 mm in depth in the overlap area of the lower and upper ladders
- Upper ladder with ladder head protection (Velcro tape) for fastening to gutters or similar.

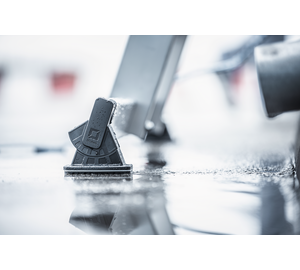

- Lower ladder with nivello® stabiliser for extra stability and safe ascent (enclosed separately)
- Upper ladder with nivello® ladder shoes, as removable for individual use
- Step spacing: 263 mm
- Ladder width: 420 mm (without stabiliser)
- Ladder inclination: 70°
- Maximum load: 150 kg
- Corporate certification: ISO 9001
- Corporate certification: EN 1090
- Corporate certification: EcoVadis
- RoHS
- REACH
- The MUNK Group complies with a Code of Conduct
- The Supply Chain Act does not apply due to our size
- The materials used are listed in the technical specification
- Resource-saving production: own photovoltaic systems
- Energy-efficient consumption during production: LED lighting
- Repairability, durability and quality: 15-year warranty on series products made in Germany
- Recyclability: Our products are mostly made of aluminium, steel or wood and can be fed directly into the recycling process.
- Socially acceptable working conditions in production: fair wages, gender equality
- Economical and recyclable packaging: no use of polystyrene, predominantly use of wood and cardboard, small amounts of plastic
- No health hazards for the users
Scope of supply
- Ladder: 1 x
- Stabiliser (enclosed separately): 1 x
- Instructions for use and operation: 1 x
Safety. Made in Germany.
Comparison table
| Product name | 2-section step push-up extension ladder with nivello® stabiliser 2x7 steps | 2-section step push-up extension ladder with nivello® stabiliser 2x9 steps | 2-section step push-up extension ladder with nivello® stabiliser 1x11 + 1x10 steps | 2-section step push-up extension ladder with nivello® stabiliser 1x14 + 1x10 steps |
|---|---|---|---|---|
| Working height | 4.4 m | 5.45 m | 6.2 m | 7 m |
| Step design | Steps | Steps | Steps | Steps |
| Number of steps/rungs | 2x7 steps | 2x9 steps | 11 + 10 steps | 14 + 10 steps |
| Step depth | 80 mm | 80 mm | 80 mm | 80 mm |
| Step/Rung distance | 263 mm | 263 mm | 263 mm | 263 mm |
| Retracted length | 2.21 m | 2.77 m | 3.3 m | 4.17 m |
| Extended length | 3.62 m | 4.75 m | 5.6 m | 6.41 m |
| Inclination | 70 ° | 70 ° | 70 ° | 70 ° |
| Outer width | 420 mm | 420 mm | 420 mm | 420 mm |
| Stabiliser width | 930 mm | 930 mm | 1.2 m | 1.2 m |
| Depth of side-rails | 85 mm | 85 mm | 85 mm | 85 mm |
| Width of side-rails | 25 mm | 25 mm | 25 mm | 25 mm |
| Design type | To lean against | 2-part | To lean against | 2-part | To lean against | 2-part | To lean against | 2-part |
| Weight | 16.4 kg | 17.9 kg | 19.3 kg | 24.5 kg |
| Transport dimensions | 2210 x 500 x 200 mm, 16.4 kg | 2770 x 504 x 210 mm, 17.9 kg | 3300 x 504 x 210 mm, 19.3 kg | 4393 x 504 x 210 mm, 24.5 kg |
| Predecessor product | 040640 | 040642 | 040644 | 040647 |
| Business division | MUNK Günzburger Steigtechnik | MUNK Günzburger Steigtechnik | MUNK Günzburger Steigtechnik | MUNK Günzburger Steigtechnik |
| Article no. | 040660 | 040663 | 040666 | 040669 |
| Price | € 637.00 | € 736.00 | € 801.00 | € 877.00 |
| Buy online |
Technical changes and price changes reserved. Dimensions and weights are approximate values. Liability for errors and mistakes excluded. Illustrations similar, some illustrations show special equipment. Preview images are representative of a product family and may therefore differ visually from the actual product you are looking for, e.g. in terms of number of steps or material.
