Order no.
: 040684

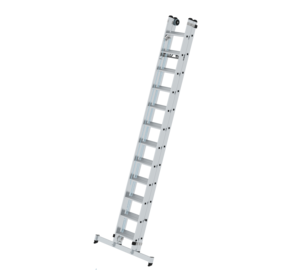

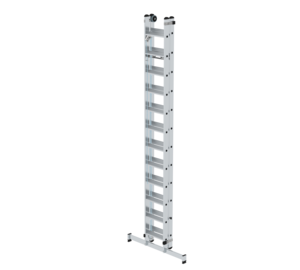

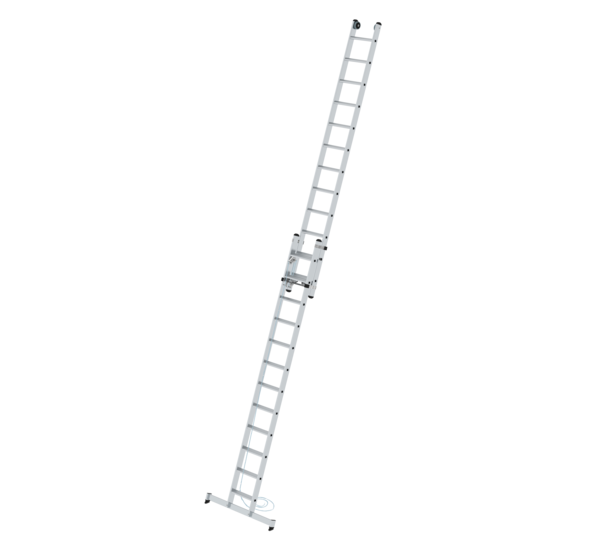

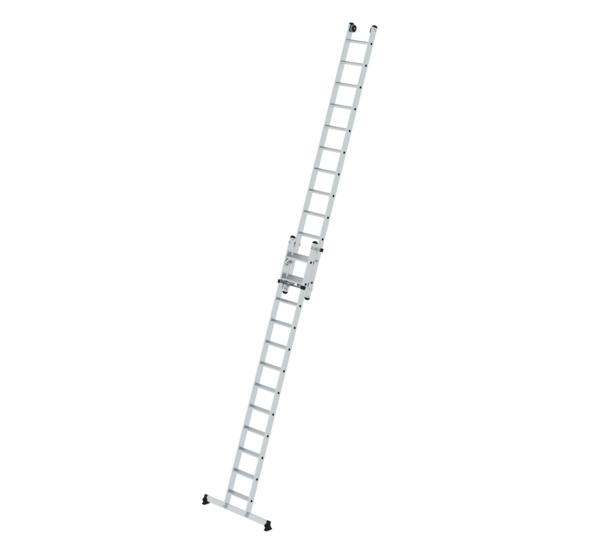

2-section step rope-extension ladder with nivello® stabiliser
€ 1,330.00
RRP without VAT
Specifications
Working height
7 m
Step design
Steps
Number of steps/rungs
2x
12 steps
Step depth
80 mm
Step/Rung distance
263 mm
Retracted length
3.62 m
Extended length
6.42 m
Length of ladder sections
3.62 m
Inclination
70 °
Outer width
420 mm
Stabiliser width
1.2 m
Depth of side-rails
85 mm
Width of side-rails
25 mm
Design type
To lean against | 2-part
Weight
22.3 kg
Transport dimensions
3500 x 400 x 200 mm, 22.3 kg
Business division
MUNK Günzburger Steigtechnik
Article no.
040684
Price
€ 1,330.00
Information
- Step rope-extension ladder, aluminium
- Complies with standard DIN EN 131-2 and TRBS 2121 Part 2
- Stable rectangular tube side-rails
- 4-fold edged step-to-side-rail connection
- Grooved steps with a depth of 80 mm
- Galvanised steel fittings

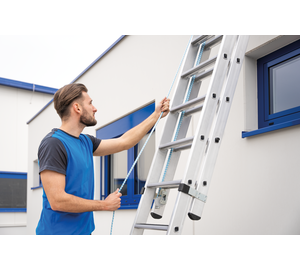

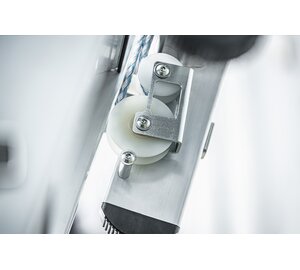

- Convenient height adjustment from step to step, thanks to rope pulley with plastic rope arranged on the left side
- Upper ladder with wall wheels, without cross-tube, therefore suitable for access

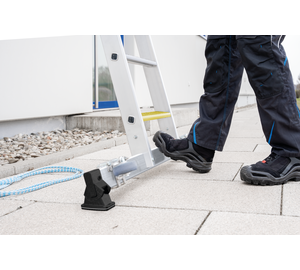

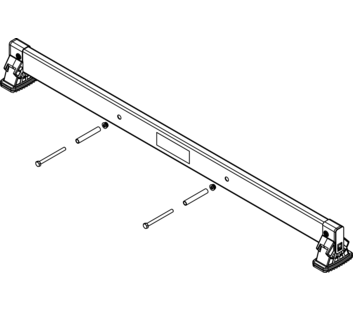

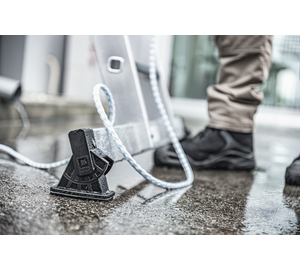

- Lower ladder with nivello® stabiliser for extra stability and safe ascent (enclosed separately)

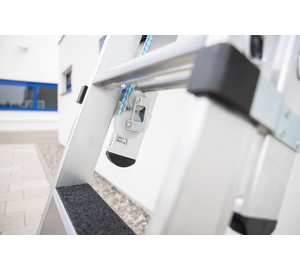

- Self-locking double locking hook
- ‘Roll-bar’ retrofit kit for enhanced ergonomics, available as an accessory
- Step spacing: 263 mm
- Ladder width: 420 mm (without stabiliser)
- Ladder inclination: 70°
- Maximum load: 150 kg

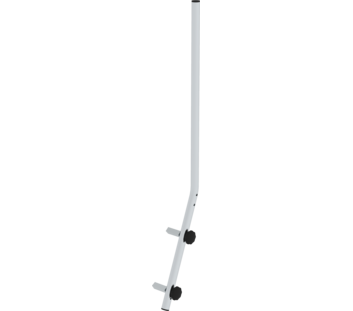

- Attention! All accessory attachments such as handrails or exit rails can only be fitted to the ladder when the ladder is in the extended position and is no longer extended or retracted.
- Mounting of hooks not possible
- Corporate certification: ISO 9001
- Corporate certification: EN 1090
- Corporate certification: EcoVadis
- RoHS
- REACH
- The MUNK Group complies with a Code of Conduct
- The Supply Chain Act does not apply due to our size
- The materials used are listed in the technical specification
- Resource-saving production: own photovoltaic systems
- Energy-efficient consumption during production: LED lighting
- Repairability, durability and quality: 15-year warranty on series products made in Germany
- Recyclability: Our products are mostly made of aluminium, steel or wood and can be fed directly into the recycling process.
- Socially acceptable working conditions in production: fair wages, gender equality
- Economical and recyclable packaging: no use of polystyrene, predominantly use of wood and cardboard, small amounts of plastic
- No health hazards for the users
Scope of supply
- Ladder: 1 x
- Stabiliser (enclosed separately): 1 x
- Instructions for use and operation: 1 x
Safety. Made in Germany.
Product video
Technical changes and price changes reserved. Dimensions and weights are approximate values. Liability for errors and mistakes excluded. Illustrations similar, some illustrations show special equipment. Preview images are representative of a product family and may therefore differ visually from the actual product you are looking for, e.g. in terms of number of steps or material.
