Order no.
: 116106
3-section rope-extension ladder with supports ÖNORM F4047
Price on demand
Specifications
Intended use
Rescue
Ladder length retracted
6.1 m
Ladder length extended
14 m
Setting angle
70 °
Clear width between rungs
265 mm
Clear width, upper ladder
380 mm
Clear width, central ladder
430 mm
Clear width, lower ladder
490 mm
Outer width
540 mm
Stabiliser width
1.11 m
Ladder feet
Spindle foot
Compensation of floor unevenness
300 mm
Depth of side-rails
90 mm
Width of side-rails
25 mm
Number of steps/rungs
3x
19 rungs
Max. load capacity
326 kg
Persons max.
3
Material
Aluminium
Weight
95 kg
Transport dimensions
6116 x 1120 x 290 mm, 95 kg
Business division
MUNK Rettungstechnik
Article no.
116106
Information
- 3-section rope-extension ladder made of aluminium
- Rescue ladder compliant with ÖNORM F4047

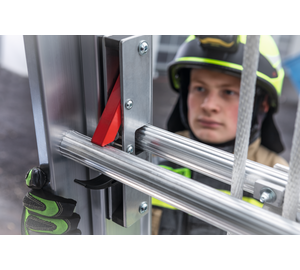

- With rope pulley, locking hook and rope brake

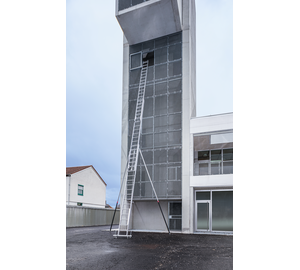

- Supports made of aluminium tube with steel spikes and rubber jacketing
- Edged rung-to-side-rail connection
- Round rungs, Ø 34 mm
- Base widener with spindle adjustment mechanism and pointed support plates
- Corrosion-resistant fixtures made of galvanised steel
- Upper ladder with wall wheels
- Permissible load: 3 persons
- Corporate certification: ISO 9001
- Corporate certification: EN 1090
- Corporate certification: EcoVadis
- RoHS
- REACH
- The MUNK Group complies with a Code of Conduct
- The Supply Chain Act does not apply due to our size
- The materials used are listed in the technical specification
- Resource-saving production: own photovoltaic systems
- Energy-efficient consumption during production: LED lighting
- Repairability, durability and quality: 15-year warranty on series products made in Germany
- Recyclability: Our products are mostly made of aluminium, steel or wood and can be fed directly into the recycling process.
- Socially acceptable working conditions in production: fair wages, gender equality
- Economical and recyclable packaging: no use of polystyrene, predominantly use of wood and cardboard, small amounts of plastic
- No health hazards for the users
Technical changes and price changes reserved. Dimensions and weights are approximate values. Liability for errors and mistakes excluded. Illustrations similar, some illustrations show special equipment. Preview images are representative of a product family and may therefore differ visually from the actual product you are looking for, e.g. in terms of number of steps or material.
