Order no.
: 020308

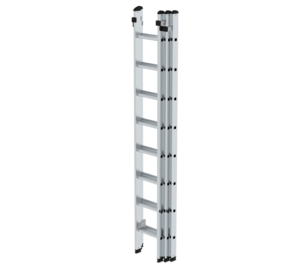

3-section rung push-up extension ladder without stabiliser
€ 506.00
RRP without VAT
Specifications
Working height
6.9 m
Step design
Rungs
Number of steps/rungs
3x
8 rungs
Step/Rung height
30 mm
Step depth
30 mm
Step/Rung distance
280 mm
Retracted length
2.5 m
Extended length
5.86 m
Outer width
500 mm
Depth of side-rails
73 mm
Width of side-rails
25 mm
Design type
To lean against | 3-part
Weight
16 kg
Transport dimensions
2480 x 495 x 200 mm, 16 kg
Business division
MUNK Günzburger Steigtechnik
Article no.
020308
Price
€ 506.00
Information
- Rung push-up extension ladder made of aluminium
- Stable rectangular tube side-rails
- Rectangular rungs grooved on both sides, 30 x 30 mm
- 4-fold edged rung-to-side-rail connection
- Simple height adjustment from rung to rung thanks to insertion hook with automatically engaging lift-off protection
- Upper ladder from size 2x14 rungs with wall castors
- Corrosion-resistant guide fixtures
- Middle and upper ladders up to 3.0 m with nivello® ladder shoes
- Rung distance: 280 mm
- Ladder width: 500 mm (without stabiliser)
- Maximum load: 150 kg
- nivello® ladder shoes with patented 2-axis inclination technology
- Note: Straight ladders over 3.0 m can be used without a stabiliser only when they are used exclusively for their intended purpose (e.g. permanently installed, fitted with hooks, fastened with a belt)
- Note: In accordance with standards, the attached push-up extension ladder section cannot be separated from the ladder with lengths over 3.0 m
- Corporate certification: ISO 9001
- Corporate certification: EN 1090
- Corporate certification: EcoVadis
- RoHS
- REACH
- The MUNK Group complies with a Code of Conduct
- The Supply Chain Act does not apply due to our size
- The materials used are listed in the technical specification
- Resource-saving production: own photovoltaic systems
- Energy-efficient consumption during production: LED lighting
- Repairability, durability and quality: 15-year warranty on series products made in Germany
- Recyclability: Our products are mostly made of aluminium, steel or wood and can be fed directly into the recycling process.
- Socially acceptable working conditions in production: fair wages, gender equality
- Economical and recyclable packaging: no use of polystyrene, predominantly use of wood and cardboard, small amounts of plastic
- No health hazards for the users
Scope of supply
- Ladder: 1 x
- Instructions for use and operation: 1 x
Safety. Made in Germany.
Comparison table
| Product name | 3-section rung push-up extension ladder without stabiliser 3x8 rungs | 3-section rung push-up extension ladder without stabiliser 3x10 rungs | 3-section rung push-up extension ladder without stabiliser 3x12 rungs | 3-section rung push-up extension ladder without stabiliser 3x14 rungs |
|---|---|---|---|---|
| Working height | 6.9 m | 8 m | 9.7 m | 10.8 m |
| Step design | Rungs | Rungs | Rungs | Rungs |
| Number of steps/rungs | 3x8 rungs | 3x10 rungs | 3x12 rungs | 3x14 rungs |
| Step/Rung height | 30 mm | 30 mm | 30 mm | 30 mm |
| Step depth | 30 mm | 30 mm | 30 mm | 30 mm |
| Step/Rung distance | 280 mm | 280 mm | 280 mm | 280 mm |
| Retracted length | 2.5 m | 3.06 m | 3.62 m | 4.18 m |
| Extended length | 5.86 m | 6.98 m | 8.66 m | 9.78 m |
| Outer width | 500 mm | 500 mm | 500 mm | 500 mm |
| Depth of side-rails | 73 mm | 73 mm | 85 mm | 98 mm |
| Width of side-rails | 25 mm | 25 mm | 25 mm | 25 mm |
| Design type | To lean against | 3-part | To lean against | 3-part | To lean against | 3-part | To lean against | 3-part |
| Weight | 16 kg | 21 kg | 28.5 kg | 35.5 kg |
| Transport dimensions | 2480 x 495 x 200 mm, 16 kg | 3041 x 495 x 200 mm, 21 kg | 3613 x 495 x 210 mm, 28.5 kg | 4180 x 495 x 215 mm, 35.5 kg |
| Business division | MUNK Günzburger Steigtechnik | MUNK Günzburger Steigtechnik | MUNK Günzburger Steigtechnik | MUNK Günzburger Steigtechnik |
| Article no. | 020308 | 020310 | 020312 | 020314 |
| Price | € 506.00 | € 630.00 | € 770.00 | € 1,000.00 |
| Buy online |
Technical changes and price changes reserved. Dimensions and weights are approximate values. Liability for errors and mistakes excluded. Illustrations similar, some illustrations show special equipment. Preview images are representative of a product family and may therefore differ visually from the actual product you are looking for, e.g. in terms of number of steps or material.
