Order no.
: 060948

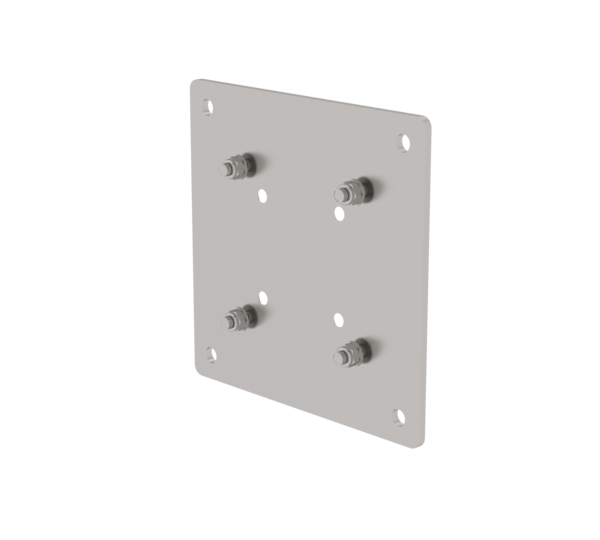

Adapter plate
€ 243.00
RRP without VAT
Specifications
Material
Stainless steel
Weight
5.76 kg
Transport dimensions
300 x 300 x 35 mm, 5.76 kg
Business division
MUNK Günzburger Steigtechnik
Article no.
060948
Price
€ 243.00
Information
- The adapter plate is required for brick masonry to enlarge the wall plug distance and the screwing surface

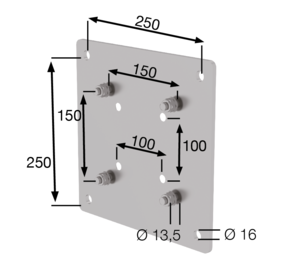

- Suitable for wall anchor and spacer segment with 150 mm hole pattern
- L × W × H 300 × 300 × 8 mm, 5.7 kg
- Corporate certification: ISO 9001
- Corporate certification: EN 1090
- Corporate certification: EcoVadis
- RoHS
- REACH
- The MUNK Group complies with a Code of Conduct
- The Supply Chain Act does not apply due to our size
- The materials used are listed in the technical specification
- Resource-saving production: own photovoltaic systems
- Energy-efficient consumption during production: LED lighting
- Repairability, durability and quality: 15-year warranty on series products made in Germany
- Recyclability: Our products are mostly made of aluminium, steel or wood and can be fed directly into the recycling process.
- Socially acceptable working conditions in production: fair wages, gender equality
- Economical and recyclable packaging: no use of polystyrene, predominantly use of wood and cardboard, small amounts of plastic
- No health hazards for the users
Scope of supply
- Adapter plate : 1 x
- Installation material: 1 x
- Assembly instructions: 1 x
Safety. Made in Germany.
Comparison table

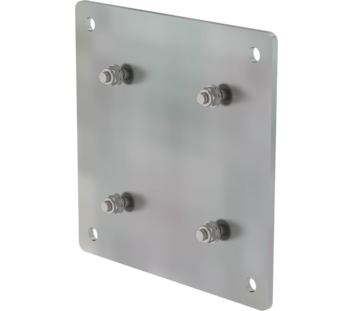

| Product name | Adapter plate Stainless steel 100 x 100 mm, 150 x 150 mm | Adapter plate Hot-dip galvanised steel 150 x 150 mm |
|---|---|---|
| Material | Stainless steel | Hot dip galvanized steel |
| Weight | 5.76 kg | 6 kg |
| Transport dimensions | 300 x 300 x 35 mm, 5.76 kg | 300 x 300 x 30 mm, 6 kg |
| Business division | MUNK Günzburger Steigtechnik | MUNK Günzburger Steigtechnik |
| Article no. | 060948 | 060947 |
| Price | € 243.00 | € 120.00 |
| Buy online |
Fixed ladders overview
All fixed ladders / vertical ladders at a glance:
- Single-flight vertical ladders in accordance with DIN 18799-1/-3, DIN 14094-1 and DIN EN ISO 14122-4 (depending on the choice of standard and the situation on site at the exit, additional components such as exit steps, railings and safety doors may be required)
- DIN 18799-1: Stationary multiple-flight vertical ladders on buildings
- DIN 14094-1: Multiple-flight emergency ladder systems (emergency ladders)
- DIN EN ISO 14122-4: Stationary multiple-flight vertical ladders on machinery
