Assembly carriage for loading beams with central locking and stops
Specifications
Information
- Platform width (PFB): 800 mm
- Platform length (PFL): 1,800 mm
- Top edge of platform 1: (PFH1): 1,500 mm
- Top edge of platform 2: (PFH2) 484 mm
- Platform covering: Wood screen printing
- Chassis: ZBS 2-2
- 2 swivel castors (Ø 160 mm) operated by foot control lever
- 2 swivel castors (Ø 160 mm) with directional lock
- Foot control lever in the centre
- Total load: 500 kg
Client's Request and Task
In the specialized field of rolling door assembly for truck bodies, our client faced the challenge of developing an assembly carriage that not only increases the efficiency of assembly work but also creates an ergonomic and safe working environment for employees. A key aspect of the solution was to provide central locking for optimal stability and maneuverability without compromising the carriage's flexibility. The goal was to design a carriage that not only meets ergonomic and safety requirements but also offers high functionality and adaptability to the specific conditions of the assembly environment. The task was thus to design an assembly carriage for loading beams that is stable, reliable, and standard-compliant, while improving working conditions for the personnel.
- Assembly carriage for loading beams with central locking for rolling door assembly on truck bodies
- Ergonomic and safe working for employees
- Stable, reliable, and standard-compliant construction
Our Solution
Assembly Carriage Concept

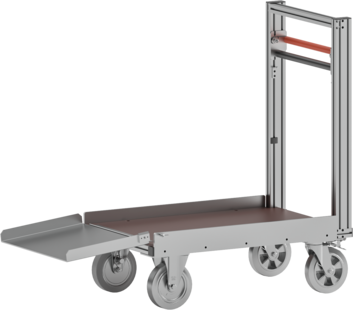

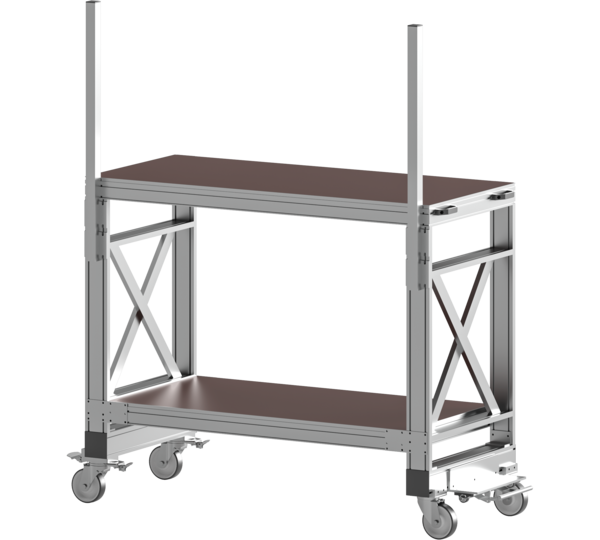

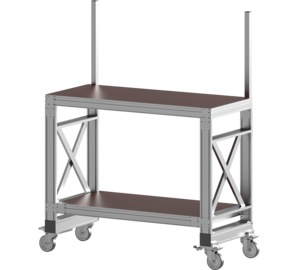

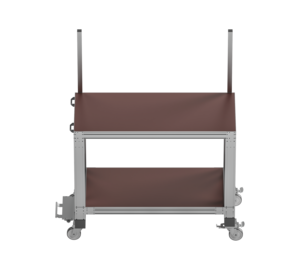

We have developed an assembly carriage ideally tailored to the needs of rolling door assembly on trucks. The carriage consists of two storage areas and an innovative chassis with central locking. It offers an adjustable range of the lower platform of 90 mm for flexible use and is equipped with two handles for easy transportation. Additionally, two extra stops, each approximately 800 mm long, have been mounted on one longitudinal side of the carriage to securely position the loading beams.
Technical Data and Safety Features
The platform of the carriage has a width of 800 mm and a length of 1800 mm. The height of the upper platform is 1500 mm, and that of the lower is approximately 480 mm. The decking is made of robust wood screen-print. The chassis comprises two steering casters controllable by a foot-operated lever and two steering casters with direction locks, all with a diameter of 160 mm. The carriage is designed for a total load of 500 kg.
Conclusion
The assembly carriage for loading beams with central locking and stops represents an optimal solution for the specific requirements of truck body rolling door assembly. With its ergonomic design, high functionality, and adherence to safety standards, the carriage offers significant added value for the assembly personnel, contributing substantially to efficiency and occupational safety.
