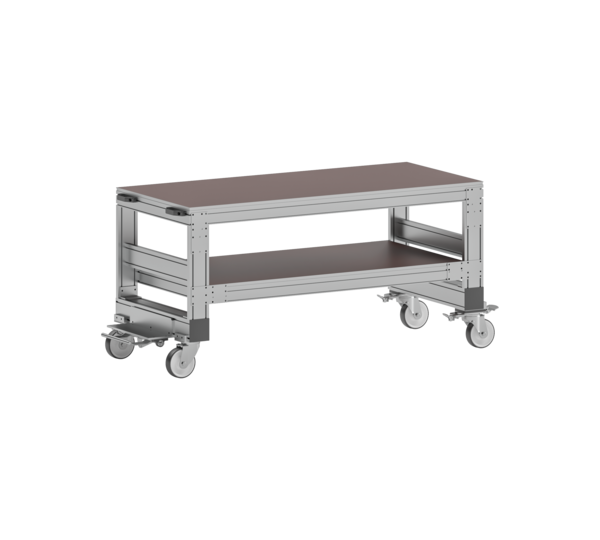

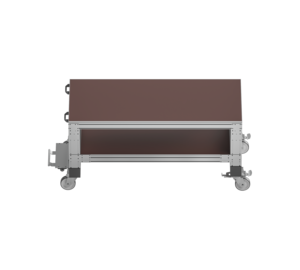

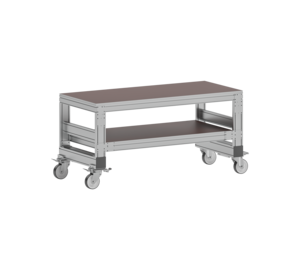

Assembly carriage with central locking
Specifications
Information
- Platform width (PFB): 800 mm
- Platform length (PFL): 1,800 mm
- Top edge of platform 1: (PFH1) 900 mm
- Top edge of platform 2: (PFH2) 484 mm
- Platform covering: Wood screen printing
- Chassis: ZBS 2-2
- 2 swivel castors (Ø 160 mm) operated by foot control lever
- 2 swivel castors (Ø 160 mm) with directional lock
- Foot control lever in the centre
- Total load: 500 kg
Client's Request and Task
In the demanding environment of rolling door assembly for truck bodies, a specialized assembly trolley was required that not only enables ergonomic and safe working for employees but is also stable, reliable, and standard-compliant. A key feature should be the central locking system to optimize the handling and mobility of the trolley.
- Assembly trolley with central locking for rolling door assembly for truck bodies
- Ergonomic and safe working for employees
- Stable, reliable, and standard-compliant construction
Our Solution
Construction and Functionality
The assembly trolley, designed for the specific needs of rolling door assembly for truck bodies, features two storage surfaces and a chassis with a braking system. The lower platform is adjustable by 90 mm, offering flexible application possibilities. Two handles facilitate the transportation of the trolley.
Technical Specifications
The platform of the assembly trolley has a width of 800 mm and a length of 1800 mm. The height of the upper platform is 900 mm, and that of the lower is approximately 480 mm. The decking is made of robust wood screen-print.
Chassis and Maneuverability
The trolley is equipped with two steering casters controlled by a central foot-operated lever, as well as two steering casters with direction locks. With a wheel diameter of 160 mm, it offers high maneuverability and stability.
Load Capacities
The total load capacity of the assembly trolley is 500 kg, highlighting its robustness and versatility.
Conclusion
The assembly carriage with central locking is an ideal solution for the assembly of rolling doors for truck bodies. It combines flexibility and ergonomics with safety and reliability, thus meeting all the requirements of the demanding assembly environment.
