Bridge 70°

Configuring, enquiring about and ordering individual products could not be easier with our product configurator for stairs, bridging steps and mobile platform stairs. Simply enter your required dimensions and versions step by step, and a rotating 3D model will appear in real time. To save your configuration and request a quotation requires a login which will be set up for you by our Sales team.

• Safety doors with fixed sizes or telescopic
• Alternative when, for example, a safety door is not possible due to structural conditions. Safety barriers or safety rope are also available

• Handrail on one side as standard (height: 1,100 mm)
• Depending on the application, a second handrail or front side railing are available
• At an additional charge, plug-in pockets with quick-release fasteners for easy removal of railing and handrail and railing with filler rods or coverings available

The total tread area depends on the platform length selected. This is made up of the platform length plus the depth of the last step(s) (for bridging steps times two), as these are mounted at the same height

• Steps and platforms are available in standard widths of 600, 800 and 1,000 mm
• Special sizes available on request

• Delivery in pre-assembled modules including assembly instructions
• Quick assembly thanks to screw connections for struts and support parts as well as plug-in pockets for railings

• Individual planning and production by Günzburger Steigtechnik experts in accordance with customer specifications

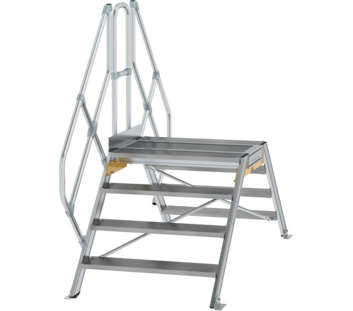

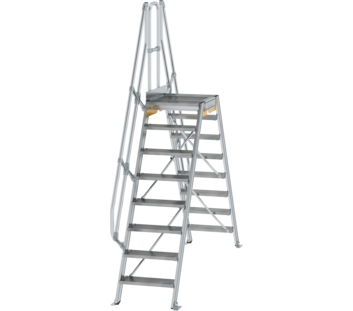

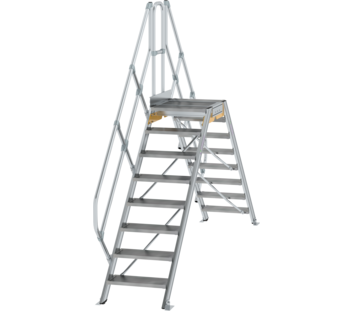

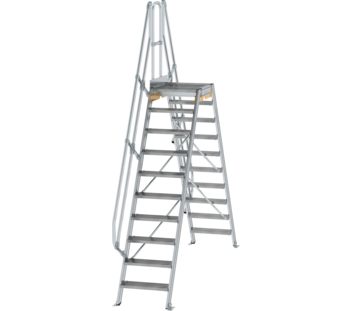

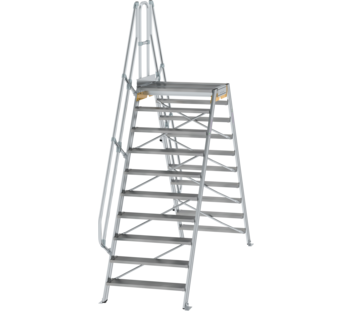

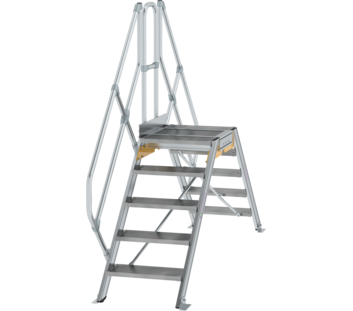

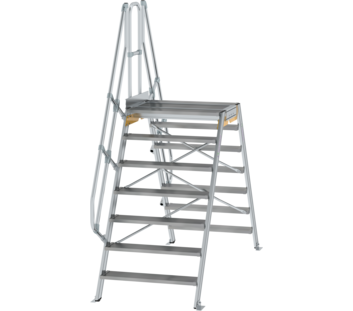

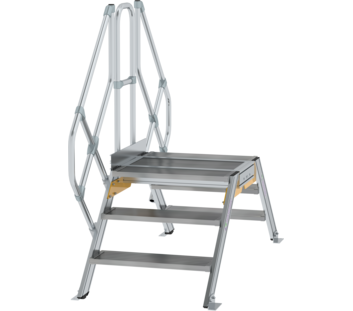

• Inclinations of 45° and 60° and widths of 600, 800 and 1,000 mm as standard, special dimensions and deviating inclinations available on request
• Standard step and platform design in grooved aluminium (R 9), optionally also in steel grating (R 12), aluminium grating (R 13), perforated steel cover (R 13), perforated aluminium cover (R 13) or with corundum coating (R 13)
• Handrail and railing on one side made of Ø 40 mm tubes with bolted connecting elements as standard (height: 1,100 mm). Handrail and railing are available on both sides at a surcharge, as well as plug-in pockets with quick-release fasteners for easy removal of the railing and railings with filler rods or covers
• Side-rails made of strong aluminium sections. The upper end is equipped with support angles, the lower end with plastic shoes
• Depending on step width and vertical height, central supports in the form of consoles or support frames, and intermediate platforms are sometimes required (at an additional charge)
• Maximum load: 1.5 kN / m², step load 150 kg, total load 300 kg
• Foot bracket for fixing to the ground and various undercarriage variants for mobile use optionally available as accessories
• The delivery from the factory is made in pre-assembled modules for quick and simple assembly in accordance with the enclosed assembly instructions

To comply with German product safety legislation, stairs should be equipped with handrails on both sides, and platforms should have fall protection (e.g. safety railing) on all sides. If this is not desired or cannot be implemented, the owner must guarantee equivalent safety.
