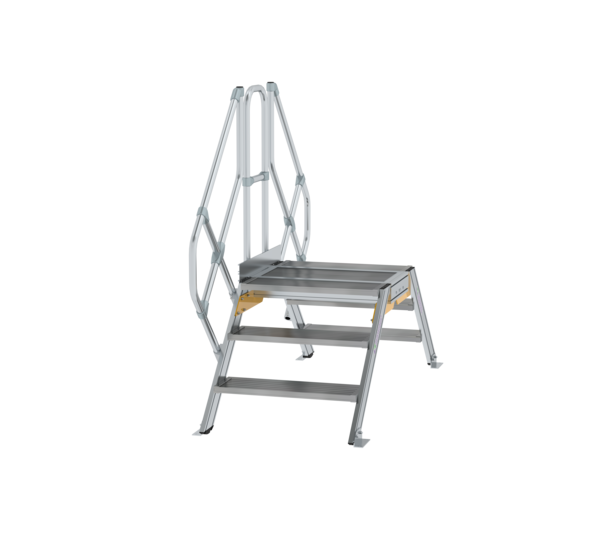

Specifications
Surface
Aluminium corrugated
Number of steps/rungs
3 steps
Step width
800 mm
Height
1.84 m
Clear height
560 mm
Clear platform width
820 mm
Base area
2.28 m
Business division
MUNK Günzburger Steigtechnik
Transport dimensions
2027 x 1200 x 918 mm, 42.1 kg
Article no.
600943
Price
€ 2,138.00
Information
- Fixed aluminium bridging step with inclination 45°
- Step and platform width: 800 mm
- Platform length: 460 mm
- Last steps (depth: 225 mm) mounted at the same height as the platform (total tread area: 910 mm)
- Standard step and platform surface, grooved aluminium (R 9), optionally also available with other surfaces (see overview on right)
- Handrail and railing on one side, Ø 40 mm, with bolted connecting elements as standard (height: 1,100 mm) as standard
- Second handrail optional (necessary in case of wall distance > 120 mm in accordance with DIN EN ISO 14122-3)
- Lower side-rail ends with robust foot brackets for floor-mounted installation
- Easy installation thanks to delivery in pre-assembled modules including assembly instructions
- Maximum load: 1.5 kN/m2, step load 150 kg, total load 300 kg
- Note: The standard version includes connecting parts of galvanised steel, which are suitable for indoor use. At a surcharge, they can also be made of stainless steel, which is recommended for outdoor use
- Corporate certification: ISO 9001
- Corporate certification: EN 1090
- Corporate certification: EcoVadis
- RoHS
- REACH
- The MUNK Group complies with a Code of Conduct
- The Supply Chain Act does not apply due to our size
- The materials used are listed in the technical specification
- Resource-saving production: own photovoltaic systems
- Energy-efficient consumption during production: LED lighting
- Repairability, durability and quality: 15-year warranty on series products made in Germany
- Recyclability: Our products are mostly made of aluminium, steel or wood and can be fed directly into the recycling process.
- Socially acceptable working conditions in production: fair wages, gender equality
- Economical and recyclable packaging: no use of polystyrene, predominantly use of wood and cardboard, small amounts of plastic
- No health hazards for the users
Scope of supply
- Stair module: 2 x
- Platform: 1 x
- Handrail (enclosed separately): 2 x
- Garde-corps: 1 x
- Installation material: 1 x
- Assembly instructions and instructions for use: 1 x
Safety. Made in Germany.
Comparison table

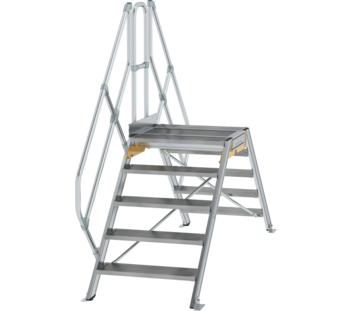

| Product name | Bridging steps 45° step width 800 mm 3 steps | Bridging steps 45° step width 800 mm 4 steps | Bridging steps 45° step width 800 mm 5 steps | Bridging steps 45° step width 800 mm 6 steps | Bridging steps 45° step width 800 mm 7 steps | Bridging steps 45° step width 800 mm 8 steps | Bridging steps 45° step width 800 mm 9 steps | Bridging steps 45° step width 800 mm 10 steps | Bridging steps 45° step width 800 mm 11 steps |
|---|---|---|---|---|---|---|---|---|---|
| Surface | Aluminium corrugated | Aluminium corrugated | Aluminium corrugated | Aluminium corrugated | Aluminium corrugated | Aluminium corrugated | Aluminium corrugated | Aluminium corrugated | Aluminium corrugated |
| Number of steps/rungs | 3 steps | 4 steps | 5 steps | 6 steps | 7 steps | 8 steps | 9 steps | 10 steps | 11 steps |
| Step width | 800 mm | 800 mm | 800 mm | 800 mm | 800 mm | 800 mm | 800 mm | 800 mm | 800 mm |
| Height | 1.84 m | 2.04 m | 2.24 m | 2.44 m | 2.64 m | 2.84 m | 3.04 m | 3.24 m | 3.44 m |
| Clear height | 560 mm | 760 mm | 960 mm | 1.16 m | 1.36 m | 1.56 m | 1.76 m | 1.96 m | 2.16 m |
| Clear platform width | 820 mm | 820 mm | 820 mm | 820 mm | 820 mm | 820 mm | 820 mm | 820 mm | 820 mm |
| Base area | 2.28 m | 2.75 m | 3.22 m | 3.64 m | 3.88 m | 4.31 m | 4.73 m | 5.14 m | 5.57 m |
| Business division | MUNK Günzburger Steigtechnik | MUNK Günzburger Steigtechnik | MUNK Günzburger Steigtechnik | MUNK Günzburger Steigtechnik | MUNK Günzburger Steigtechnik | MUNK Günzburger Steigtechnik | MUNK Günzburger Steigtechnik | MUNK Günzburger Steigtechnik | MUNK Günzburger Steigtechnik |
| Transport dimensions | 2027 x 1200 x 918 mm, 42.1 kg | 2027 x 1200 x 918 mm, 55.2 kg | 2027 x 1200 x 918 mm, 62.5 kg | 2796 x 1200 x 918 mm, 69.9 kg | 2796 x 1200 x 918 mm, 80.7 kg | 2796 x 1200 x 918 mm, 97.5 kg | 3685 x 1200 x 918 mm, 106 kg | 3685 x 1200 x 918 mm, 114.6 kg | 3685 x 1200 x 918 mm, 124.6 kg |
| Article no. | 600943 | 600944 | 600945 | 600946 | 600947 | 600948 | 600949 | 600950 | 600951 |
| Price | € 2,138.00 | € 2,515.00 | € 2,825.00 | € 3,274.00 | € 3,565.00 | € 3,914.00 | € 3,977.00 | € 4,240.00 | € 4,697.00 |
| Buy online |
