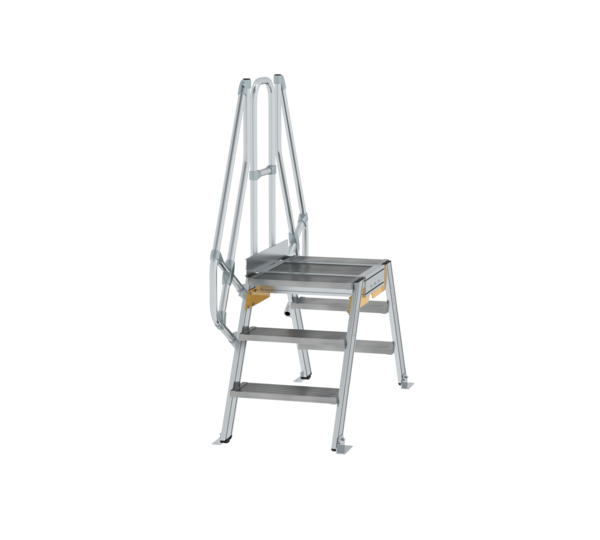

Specifications
Surface
Aluminium corrugated
Number of steps/rungs
3 steps
Step width
600 mm
Height
1.96 m
Clear height
680 mm
Clear platform width
741 mm
Base area
1.85 m
Business division
MUNK Günzburger Steigtechnik
Transport dimensions
1909 x 1200 x 918 mm, 32.5 kg
Article no.
600903
Price
€ 1,897.00
Information
- Fixed aluminium bridging step with inclination 60°
- Step and platform width: 600 mm
- Platform length: 460 mm
- Last steps (depth: 225 mm) mounted at the same height as the platform (total tread area: 910 mm)
- Standard step and platform surface, grooved aluminium (R 9), optionally also available with other surfaces (see overview on right)
- Handrail and railing on one side, Ø 40 mm, with bolted connecting elements as standard (height: 1,100 mm) as standard

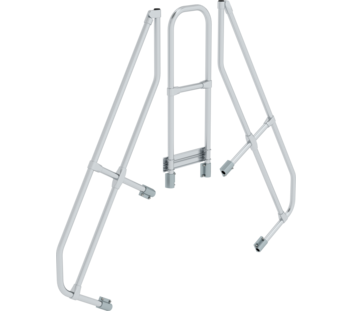

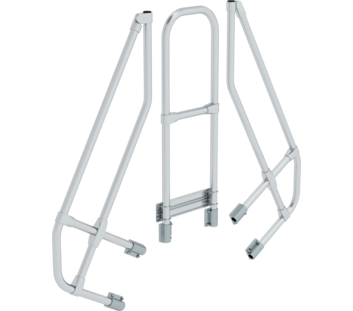

- Second handrail as per DIN EN ISO 14122-3 required and available at asurcharge
- Lower side-rail ends with robust foot brackets for floor-mounted installation
- Easy installation thanks to delivery in pre-assembled modules including assembly instructions
- Maximum load: 1.5 kN/m2, step load 150 kg, total load 300 kg
- Note: The standard version includes connecting parts of galvanised steel, which are suitable for indoor use. At a surcharge, they can also be made of stainless steel, which is recommended for outdoor use
- Corporate certification: ISO 9001
- Corporate certification: EN 1090
- Corporate certification: EcoVadis
- RoHS
- REACH
- The MUNK Group complies with a Code of Conduct
- The Supply Chain Act does not apply due to our size
- The materials used are listed in the technical specification
- Resource-saving production: own photovoltaic systems
- Energy-efficient consumption during production: LED lighting
- Repairability, durability and quality: 15-year warranty on series products made in Germany
- Recyclability: Our products are mostly made of aluminium, steel or wood and can be fed directly into the recycling process.
- Socially acceptable working conditions in production: fair wages, gender equality
- Economical and recyclable packaging: no use of polystyrene, predominantly use of wood and cardboard, small amounts of plastic
- No health hazards for the users
Scope of supply
- Stair module: 2 x
- Platform: 1 x
- Handrail (enclosed separately): 2 x
- Garde-corps: 1 x
- Installation material: 1 x
- Assembly instructions and instructions for use: 1 x
Safety. Made in Germany.
Comparison table

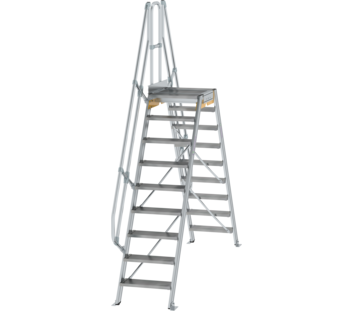

| Product name | Bridging steps 60° step width 600 mm 3 steps | Bridging steps 60° step width 600 mm 4 steps | Bridging steps 60° step width 600 mm 5 steps | Bridging steps 60° step width 600 mm 6 steps | Bridging steps 60° step width 600 mm 7 steps | Bridging steps 60° step width 600 mm 8 steps | Bridging steps 60° step width 600 mm 9 steps | Bridging steps 60° step width 600 mm 10 steps | Bridging steps 60° step width 600 mm 11 steps |
|---|---|---|---|---|---|---|---|---|---|
| Surface | Aluminium corrugated | Aluminium corrugated | Aluminium corrugated | Aluminium corrugated | Aluminium corrugated | Aluminium corrugated | Aluminium corrugated | Aluminium corrugated | Aluminium corrugated |
| Number of steps/rungs | 3 steps | 4 steps | 5 steps | 6 steps | 7 steps | 8 steps | 9 steps | 10 steps | 11 steps |
| Step width | 600 mm | 600 mm | 600 mm | 600 mm | 600 mm | 600 mm | 600 mm | 600 mm | 600 mm |
| Height | 1.96 m | 2.21 m | 2.45 m | 2.69 m | 2.94 m | 3.17 m | 3.4 m | 3.63 m | 3.86 m |
| Clear height | 680 mm | 930 mm | 1.17 m | 1.42 m | 1.66 m | 1.89 m | 2.12 m | 2.38 m | 2.58 m |
| Clear platform width | 741 mm | 741 mm | 741 mm | 741 mm | 741 mm | 741 mm | 741 mm | 741 mm | 741 mm |
| Base area | 1.85 m | 2.08 m | 2.34 m | 2.65 m | 2.91 m | 3.18 m | 3.44 m | 3.71 m | 3.97 m |
| Business division | MUNK Günzburger Steigtechnik | MUNK Günzburger Steigtechnik | MUNK Günzburger Steigtechnik | MUNK Günzburger Steigtechnik | MUNK Günzburger Steigtechnik | MUNK Günzburger Steigtechnik | MUNK Günzburger Steigtechnik | MUNK Günzburger Steigtechnik | MUNK Günzburger Steigtechnik |
| Transport dimensions | 1909 x 1200 x 918 mm, 32.5 kg | 1909 x 1200 x 918 mm, 38.6 kg | 1909 x 1200 x 918 mm, 47.6 kg | 2749 x 1200 x 918 mm, 52.8 kg | 2749 x 1200 x 918 mm, 60.4 kg | 2749 x 1200 x 918 mm, 74.8 kg | 3539 x 1200 x 918 mm, 81.3 kg | 3539 x 1200 x 918 mm, 87.8 kg | 3539 x 1200 x 918 mm, 97.3 kg |
| Article no. | 600903 | 600904 | 600905 | 600906 | 600907 | 600908 | 600909 | 600910 | 600911 |
| Price | € 1,897.00 | € 2,170.00 | € 2,410.00 | € 2,786.00 | € 3,001.00 | € 3,305.00 | € 3,565.00 | € 3,812.00 | € 4,068.00 |
| Buy online |
