Order no.
: 115096

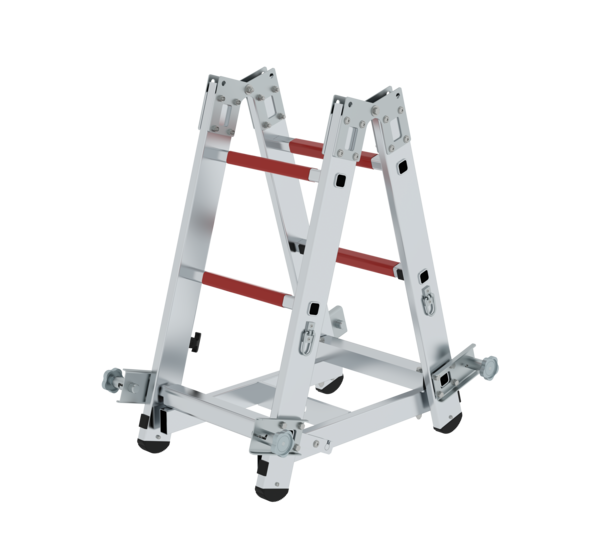

Connecting section, multi-function ladder DIN EN 1147
Price on demand
Specifications
Clear width as double ladder
2.67 m
Clear height of the attachment point
3.56 m
Outer width
570 mm
Ladder feet
Ladder shoe
Max. load capacity
250 kg
Material
Aluminium
Rung covering
Standard (red)
Weight
14 kg
Transport dimensions
885 x 570 x 330 mm, 14 kg
Business division
MUNK Rettungstechnik
Article no.
115096
Information
- Connecting section made of aluminium
- Suitable for multi-function ladder 115093 (2x required)

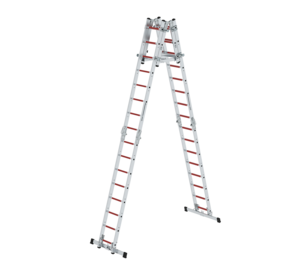

- For creating a double-sided ladder, bridging step, tripod or hose conveyance
- Secure push-fit connections with spring-loaded locking pin
- With integrated eye for attaching a snap hook or shackle
- Corrosion-resistant fixtures made of galvanised steel
- Non-slip and replaceable ladder shoes
- Permissible load: 300 kg
- Corporate certification: ISO 9001
- Corporate certification: EN 1090
- Corporate certification: EcoVadis
- RoHS
- REACH
- The MUNK Group complies with a Code of Conduct
- The Supply Chain Act does not apply due to our size
- The materials used are listed in the technical specification
- Resource-saving production: own photovoltaic systems
- Energy-efficient consumption during production: LED lighting
- Repairability, durability and quality: 15-year warranty on series products made in Germany
- Recyclability: Our products are mostly made of aluminium, steel or wood and can be fed directly into the recycling process.
- Socially acceptable working conditions in production: fair wages, gender equality
- Economical and recyclable packaging: no use of polystyrene, predominantly use of wood and cardboard, small amounts of plastic
- No health hazards for the users
Technical changes and price changes reserved. Dimensions and weights are approximate values. Liability for errors and mistakes excluded. Illustrations similar, some illustrations show special equipment. Preview images are representative of a product family and may therefore differ visually from the actual product you are looking for, e.g. in terms of number of steps or material.
