Order no.: 930207

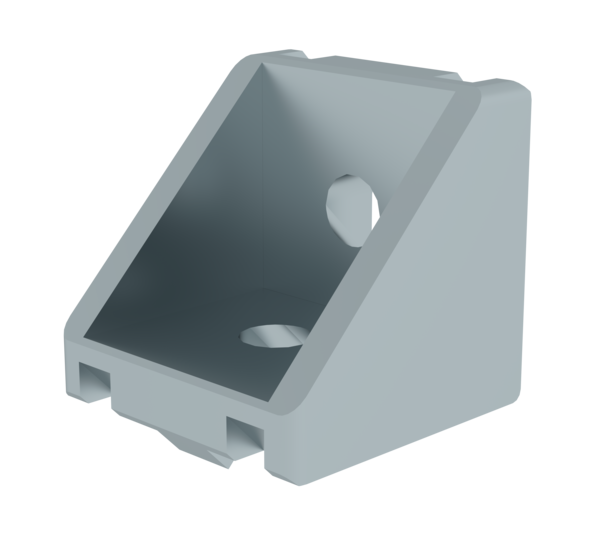

Corner bracket 30x30 mm
Price on demand
Specifications
Connection type
Angle connection
Material
Die-cast
Weight/piece
23 g
Groove size
6 mm
Dimension A
30 mm
Dimension B
30 mm
Dimension C
30 mm
Dimension D
5 mm
Order no.
930207
Information
- Profile angle for profile 30
- For joining profiles to each other
- Particularly suitable for retrofitting profiles
The 30x30 mm corner bracket is a profile angle that has been specially developed for profile 30. It is ideal for joining profiles to each other and is particularly suitable for retrofitting profiles. Thanks to its high-quality finish, the 30x30 mm corner bracket is particularly durable.
- Corporate certification: ISO 9001
- Corporate certification: ISO 14001
- Corporate certification: EN 1090
- Corporate certification: EcoVadis
- RoHS
- REACH
- The MUNK Group complies with a Code of Conduct
- The Supply Chain Act does not apply due to our size
- The materials used are listed in the technical specification
- Resource-saving production: own photovoltaic systems
- Energy-efficient consumption during production: LED lighting
- Repairability, durability and quality: 15-year warranty on series products made in Germany
- Recyclability: Our products are mostly made of aluminium, steel or wood and can be fed directly into the recycling process.
- Socially acceptable working conditions in production: fair wages, gender equality
- Economical and recyclable packaging: no use of polystyrene, predominantly use of wood and cardboard, small amounts of plastic
- No health hazards for the users
Scope of supply
- Corner bracket: 1 x
Comparison table
| Product name | Corner bracket 30x30 mm Profile 40 | Corner bracket 40x40 mm Size 8 Profile 40 |
|---|---|---|
| Connection type | Angle connection | Angle connection |
| Material | Die-cast | Die-cast |
| Weight/piece | 23 g | 59 g |
| Groove size | 6 mm | 8 mm |
| Dimension A | 30 mm | 40 mm |
| Dimension B | 30 mm | 40 mm |
| Dimension C | 30 mm | 40 mm |
| Dimension D | 5 mm | 5 mm |
| Order no. | 930207 | 930205 |
Technical changes and price changes reserved. Dimensions and weights are approximate values. Liability for errors and mistakes excluded. Illustrations similar, some illustrations show special equipment. Preview images are representative of a product family and may therefore differ visually from the actual product you are looking for, e.g. in terms of number of steps or material.
