Order no.
: 063965

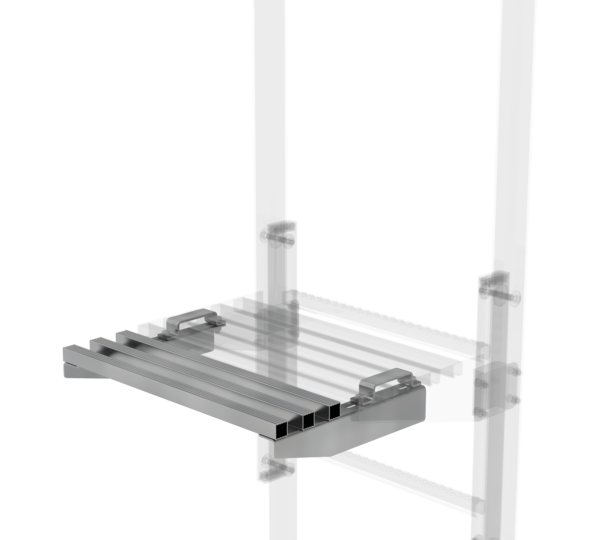

Entry and exit aids
€ 140.00
RRP without VAT
Specifications
Length
505 mm
Outer width
340 mm
Height
90 mm
Material
Galvanised steel
Weight
3.4 kg
Transport dimensions
510 x 340 x 90 mm, 3.4 kg
Business division
MUNK Günzburger Steigtechnik
Article no.
063965
Price
€ 140.00
Information
- Attachment kit for exit steps with 250 or 300 mm gap dimensions
- For the exit step with 250 mm gap dimensions, the gap dimensions are 350 and 450 mm
- For the exit step with 300 mm gap dimensions, the gap dimensions are 400 and 500 mm
- Variable assembly through slotted holes
- Material: hot-dip galvanised steel
- Corporate certification: ISO 9001
- Corporate certification: EN 1090
- Corporate certification: EcoVadis
- RoHS
- REACH
- The MUNK Group complies with a Code of Conduct
- The Supply Chain Act does not apply due to our size
- The materials used are listed in the technical specification
- Resource-saving production: own photovoltaic systems
- Energy-efficient consumption during production: LED lighting
- Repairability, durability and quality: 15-year warranty on series products made in Germany
- Recyclability: Our products are mostly made of aluminium, steel or wood and can be fed directly into the recycling process.
- Socially acceptable working conditions in production: fair wages, gender equality
- Economical and recyclable packaging: no use of polystyrene, predominantly use of wood and cardboard, small amounts of plastic
- No health hazards for the users
Scope of supply
- Step stool: 1 x
- Installation material: 1 x
- Assembly instructions: 1 x
Safety. Made in Germany.
Comparison table
| Product name | Entry and exit aids | Entry and exit aids |
|---|---|---|
| Length | 505 mm | 605 mm |
| Outer width | 340 mm | 340 mm |
| Height | 90 mm | 90 mm |
| Material | Galvanised steel | Galvanised steel |
| Weight | 3.4 kg | 3.8 kg |
| Transport dimensions | 510 x 340 x 90 mm, 3.4 kg | 610 x 340 x 90 mm, 3.8 kg |
| Business division | MUNK Günzburger Steigtechnik | MUNK Günzburger Steigtechnik |
| Article no. | 063965 | 063976 |
| Price | € 140.00 | € 140.00 |
| Buy online |
Fixed ladders overview
All fixed ladders / vertical ladders at a glance:
- Single-flight vertical ladders in accordance with DIN 18799-1/-3, DIN 14094-1 and DIN EN ISO 14122-4 (depending on the choice of standard and the situation on site at the exit, additional components such as exit steps, railings and safety doors may be required)
- DIN 18799-1: Stationary multiple-flight vertical ladders on buildings
- DIN 14094-1: Multiple-flight emergency ladder systems (emergency ladders)
- DIN EN ISO 14122-4: Stationary multiple-flight vertical ladders on machinery
