Order no.
: 062966

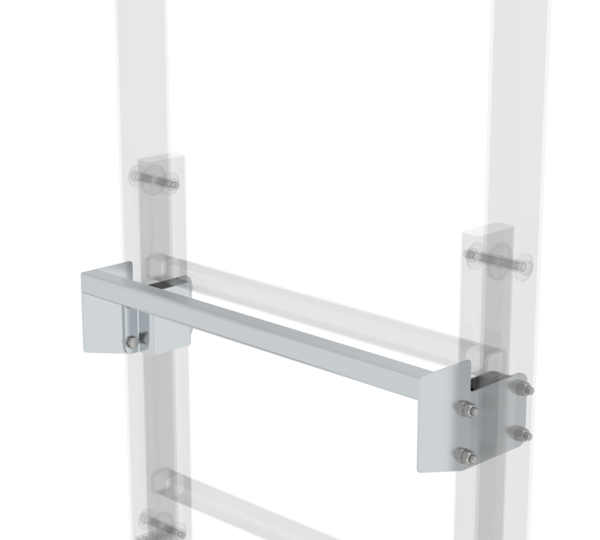

Exit step bright aluminium
€ 128.00
RRP without VAT
Specifications
Material
Aluminium
Clearance
100 mm
Weight
0.82 kg
Transport dimensions
525 x 168 x 115 mm, 0.82 kg
Business division
MUNK Günzburger Steigtechnik
Article no.
062966
Price
€ 128.00
Information
- For widening the uppermost rung and reducing the gap width at the exit
- Dimensions: 520 x 100–300 mm
- Consisting of grooved rungs, incl. 2 clamp connectors for ladder side rails
- Includes two clamp connections for ladder side-rail
- Corporate certification: ISO 9001
- Corporate certification: EN 1090
- Corporate certification: EcoVadis
- RoHS
- REACH
- The MUNK Group complies with a Code of Conduct
- The Supply Chain Act does not apply due to our size
- The materials used are listed in the technical specification
- Resource-saving production: own photovoltaic systems
- Energy-efficient consumption during production: LED lighting
- Repairability, durability and quality: 15-year warranty on series products made in Germany
- Recyclability: Our products are mostly made of aluminium, steel or wood and can be fed directly into the recycling process.
- Socially acceptable working conditions in production: fair wages, gender equality
- Economical and recyclable packaging: no use of polystyrene, predominantly use of wood and cardboard, small amounts of plastic
- No health hazards for the users
Scope of supply
- Step stool: 1 x
- Installation material: 1 x
- Assembly instructions: 1 x
Safety. Made in Germany.
Comparison table
| Product name | Exit step bright aluminium Clearance 100 mm | Exit step bright aluminium 150 mm clearance | Exit step bright aluminium Clearance 200 mm | Exit step bright aluminium Clearance 250 mm | Exit step bright aluminium Clearance 300 mm |
|---|---|---|---|---|---|
| Material | Aluminium | Aluminium | Aluminium | Aluminium | Aluminium |
| Clearance | 100 mm | 150 mm | 200 mm | 250 mm | 300 mm |
| Weight | 0.82 kg | 1 kg | 1.5 kg | 2 kg | 2.5 kg |
| Transport dimensions | 525 x 168 x 115 mm, 0.82 kg | 525 x 225 x 115 mm, 1 kg | 525 x 280 x 115 mm, 1.5 kg | 525 x 336 x 115 mm, 2 kg | 525 x 391 x 115 mm, 1.5 kg |
| Business division | MUNK Günzburger Steigtechnik | MUNK Günzburger Steigtechnik | MUNK Günzburger Steigtechnik | MUNK Günzburger Steigtechnik | MUNK Günzburger Steigtechnik |
| Article no. | 062966 | 062967 | 062968 | 062969 | 062970 |
| Price | € 128.00 | € 138.00 | € 161.00 | € 173.00 | € 188.00 |
| Buy online |
Fixed ladders overview
All fixed ladders / vertical ladders at a glance:
- Single-flight vertical ladders in accordance with DIN 18799-1/-3, DIN 14094-1 and DIN EN ISO 14122-4 (depending on the choice of standard and the situation on site at the exit, additional components such as exit steps, railings and safety doors may be required)
- DIN 18799-1: Stationary multiple-flight vertical ladders on buildings
- DIN 14094-1: Multiple-flight emergency ladder systems (emergency ladders)
- DIN EN ISO 14122-4: Stationary multiple-flight vertical ladders on machinery
Technical changes and price changes reserved. Dimensions and weights are approximate values. Liability for errors and mistakes excluded. Illustrations similar, some illustrations show special equipment. Preview images are representative of a product family and may therefore differ visually from the actual product you are looking for, e.g. in terms of number of steps or material.
