Order no.
: 063966

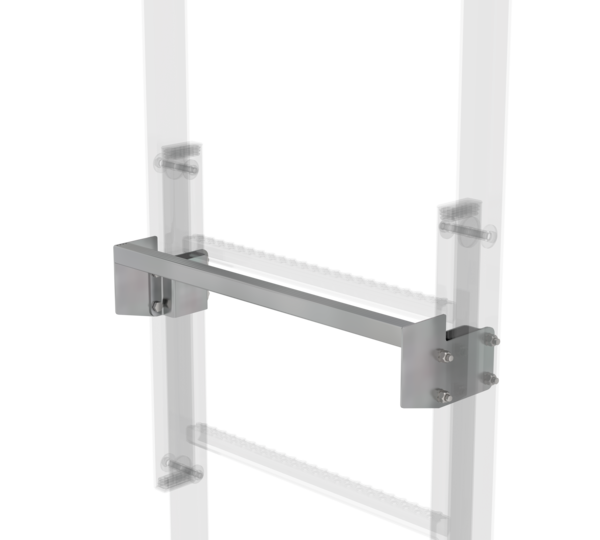

Exit step galvanised steel
€ 117.00
RRP without VAT
Specifications
Material
Galvanised steel
Clearance
100 mm
Weight
1.5 kg
Transport dimensions
525 x 170 x 115 mm, 1.5 kg
Business division
MUNK Günzburger Steigtechnik
Article no.
063966
Price
€ 117.00
Information
- For widening the uppermost rung and reducing the gap width at the exit
- Dimensions: 520 x 100–300 mm
- Consisting of grooved rungs, incl. 2 clamp connectors for ladder side rails
- Includes two clamp connections for ladder side-rail
- Corporate certification: ISO 9001
- Corporate certification: EN 1090
- Corporate certification: EcoVadis
- RoHS
- REACH
- The MUNK Group complies with a Code of Conduct
- The Supply Chain Act does not apply due to our size
- The materials used are listed in the technical specification
- Resource-saving production: own photovoltaic systems
- Energy-efficient consumption during production: LED lighting
- Repairability, durability and quality: 15-year warranty on series products made in Germany
- Recyclability: Our products are mostly made of aluminium, steel or wood and can be fed directly into the recycling process.
- Socially acceptable working conditions in production: fair wages, gender equality
- Economical and recyclable packaging: no use of polystyrene, predominantly use of wood and cardboard, small amounts of plastic
- No health hazards for the users
Scope of supply
- Step stool: 1 x
- Installation material: 1 x
- Assembly instructions: 1 x
Safety. Made in Germany.
Comparison table
| Product name | Exit step galvanised steel Clearance width 100 mm | Exit step galvanised steel Clearance width 150 mm | Exit step galvanised steel Clearance width 200 mm | Exit step galvanised steel Clearance width 250 mm | Exit step galvanised steel Clearance width 300 mm |
|---|---|---|---|---|---|
| Material | Galvanised steel | Galvanised steel | Galvanised steel | Galvanised steel | Galvanised steel |
| Clearance | 100 mm | 150 mm | 200 mm | 250 mm | 300 mm |
| Weight | 1.5 kg | 2.5 kg | 3.5 kg | 4 kg | 5 kg |
| Transport dimensions | 525 x 170 x 115 mm, 1.5 kg | 525 x 225 x 115 mm, 2.5 kg | 525 x 280 x 115 mm, 3.5 kg | 525 x 340 x 115 mm, 4 kg | 525 x 393 x 115 mm, 5 kg |
| Business division | MUNK Günzburger Steigtechnik | MUNK Günzburger Steigtechnik | MUNK Günzburger Steigtechnik | MUNK Günzburger Steigtechnik | MUNK Günzburger Steigtechnik |
| Article no. | 063966 | 063967 | 063968 | 063969 | 063970 |
| Price | € 117.00 | € 130.00 | € 154.00 | € 166.00 | € 182.00 |
| Buy online |
Fixed ladders overview
All fixed ladders / vertical ladders at a glance:
- Single-flight vertical ladders in accordance with DIN 18799-1/-3, DIN 14094-1 and DIN EN ISO 14122-4 (depending on the choice of standard and the situation on site at the exit, additional components such as exit steps, railings and safety doors may be required)
- DIN 18799-1: Stationary multiple-flight vertical ladders on buildings
- DIN 14094-1: Multiple-flight emergency ladder systems (emergency ladders)
- DIN EN ISO 14122-4: Stationary multiple-flight vertical ladders on machinery
