Order no.
: 068253

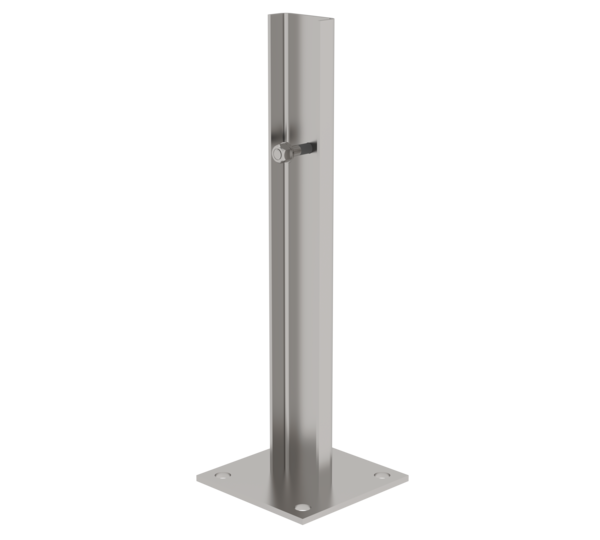

Ground attachment for base plate
€ 71.00
RRP without VAT
Specifications
Material
Stainless steel
Weight
0.66 kg
Transport dimensions
370 x 120 x 120 mm, 0.66 kg
Business division
MUNK Günzburger Steigtechnik
Article no.
068253
Price
€ 71.00
Information
- 120 x 120 mm, for attaching the vertical ladder to the ground
- Hole: Ø 13 mm
- New: Length 370 mm, can be shortened on site if required
- Corporate certification: ISO 9001
- Corporate certification: EN 1090
- Corporate certification: EcoVadis
- RoHS
- REACH
- The MUNK Group complies with a Code of Conduct
- The Supply Chain Act does not apply due to our size
- The materials used are listed in the technical specification
- Resource-saving production: own photovoltaic systems
- Energy-efficient consumption during production: LED lighting
- Repairability, durability and quality: 15-year warranty on series products made in Germany
- Recyclability: Our products are mostly made of aluminium, steel or wood and can be fed directly into the recycling process.
- Socially acceptable working conditions in production: fair wages, gender equality
- Economical and recyclable packaging: no use of polystyrene, predominantly use of wood and cardboard, small amounts of plastic
- No health hazards for the users
Scope of supply
- Flange plate: 1 x
- Assembly instructions: 1 x
Safety. Made in Germany.
Comparison table

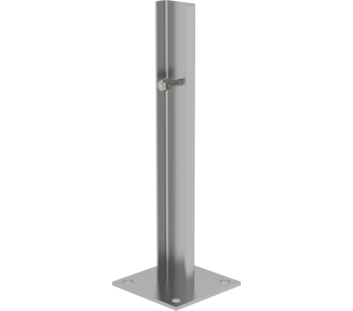

| Product name | Ground attachment for base plate for vertical ladders | Ground attachment for base plate for vertical ladders galvanised steel |
|---|---|---|
| Material | Stainless steel | Galvanised steel |
| Weight | 0.66 kg | 1.26 kg |
| Transport dimensions | 370 x 120 x 120 mm, 0.66 kg | 370 x 120 x 120 mm, 1.26 kg |
| Business division | MUNK Günzburger Steigtechnik | MUNK Günzburger Steigtechnik |
| Article no. | 068253 | 063253 |
| Price | € 71.00 | € 42.00 |
| Buy online |
Fixed ladders overview
All fixed ladders / vertical ladders at a glance:
- Single-flight vertical ladders in accordance with DIN 18799-1/-3, DIN 14094-1 and DIN EN ISO 14122-4 (depending on the choice of standard and the situation on site at the exit, additional components such as exit steps, railings and safety doors may be required)
- DIN 18799-1: Stationary multiple-flight vertical ladders on buildings
- DIN 14094-1: Multiple-flight emergency ladder systems (emergency ladders)
- DIN EN ISO 14122-4: Stationary multiple-flight vertical ladders on machinery
