Order no.: 930210

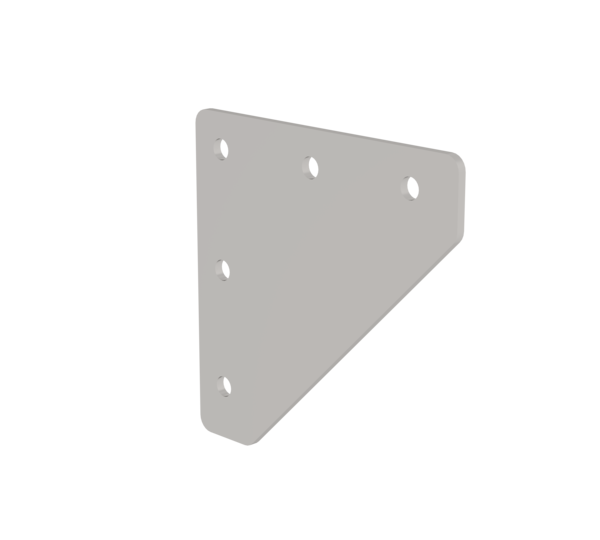

Gusset plate 110x110x3 mm
Price on demand
Specifications
Connection type
Angle connection
Material
Stainless steel
Profile dimension X
30 mm
Weight/piece
193 g
Groove size
6 mm
Dimension A
110 mm
Dimension B
110 mm
Dimension C
3 mm
Dimension D
24 mm
Order no.
930210
Information
- Gusset plate for profile 30
- For reinforcing connections that are subject to heavy stresses
The 110x110x3 mm gusset plate is an angled connection made from stainless steel that is intended for profile 30. The gusset plate reinforces connections that are subject to heavy stresses and ensures maximum stability.
- Corporate certification: ISO 9001
- Corporate certification: ISO 14001
- Corporate certification: EN 1090
- Corporate certification: EcoVadis
- RoHS
- REACH
- The MUNK Group complies with a Code of Conduct
- The Supply Chain Act does not apply due to our size
- The materials used are listed in the technical specification
- Resource-saving production: own photovoltaic systems
- Energy-efficient consumption during production: LED lighting
- Repairability, durability and quality: 15-year warranty on series products made in Germany
- Recyclability: Our products are mostly made of aluminium, steel or wood and can be fed directly into the recycling process.
- Socially acceptable working conditions in production: fair wages, gender equality
- Economical and recyclable packaging: no use of polystyrene, predominantly use of wood and cardboard, small amounts of plastic
- No health hazards for the users
Scope of supply
- Gusset plate: 1 x
Comparison table
| Product name | Gusset plate 110x110x3 mm Angled connection Profile 30 | Gusset plate 120x105x3 mm T-connection Profile 30 | Gusset plate 125x125x3 mm Angled connection Profile 40 | Gusset plate 150x125x3 mm T-connection Profile 40 | Gusset plate 168x200 mm T-connection Profile 80 | Gusset plate 200x200x3 mm Angled connection Profile 80 |
|---|---|---|---|---|---|---|
| Connection type | Angle connection | T-connection | Angle connection | T-connection | T-connection | Angle connection |
| Material | Stainless steel | Stainless steel | Stainless steel | Stainless steel | Stainless steel | Stainless steel |
| Profile dimension X | 30 mm | 30 mm | 40 mm | 40 mm | 80 mm | 80 mm |
| Weight/piece | 193 g | 202 g | 263 g | 312 g | 639 g | 738 g |
| Groove size | 6 mm | 6 mm | 8 mm | 8 mm | 8 mm | 8 mm |
| Dimension A | 110 mm | 120 mm | 125 mm | 150 mm | 168 mm | 200 mm |
| Dimension B | 110 mm | 105 mm | 125 mm | 125 mm | 200 mm | 200 mm |
| Dimension C | 3 mm | 3 mm | 3 mm | 3 mm | 3 mm | 3 mm |
| Dimension D | 24 mm | 24 mm | 34 mm | 34 mm | 74 mm | 74 mm |
| Order no. | 930210 | 930213 | 930211 | 930214 | 930215 | 930212 |
Technical changes and price changes reserved. Dimensions and weights are approximate values. Liability for errors and mistakes excluded. Illustrations similar, some illustrations show special equipment. Preview images are representative of a product family and may therefore differ visually from the actual product you are looking for, e.g. in terms of number of steps or material.
