Order no.
: 062960

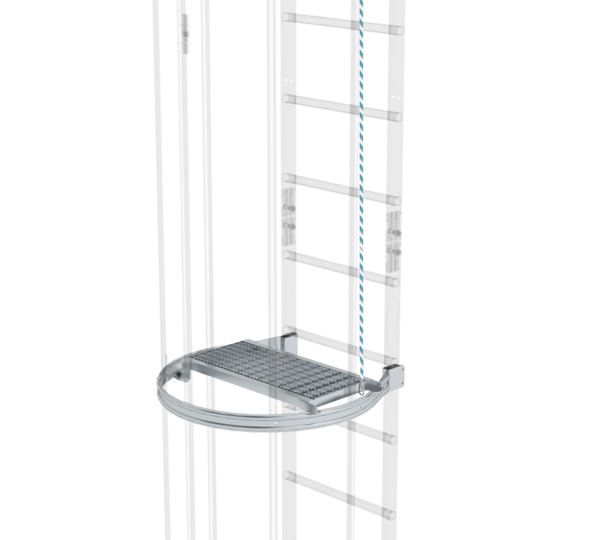

Intermediate platform, folding
€ 475.00
RRP without VAT
Specifications
Material
Aluminium
Weight
4.5 kg
Transport dimensions
680 x 750 x 180 mm, 4.5 kg
Business division
MUNK Günzburger Steigtechnik
Article no.
062960
Price
€ 475.00
Information
- Comfortable standing area for stability and safety
- Can be used as a resting platform for single-flight vertical ladders. Fastening via an additional bracket on the back protection. One bracket included in the scope of delivery.
- High load capacity for demanding applications
- Dimensions approx. 600 x 300 mm
- Corporate certification: ISO 9001
- Corporate certification: EN 1090
- Corporate certification: EcoVadis
- RoHS
- REACH
- The MUNK Group complies with a Code of Conduct
- The Supply Chain Act does not apply due to our size
- The materials used are listed in the technical specification
- Resource-saving production: own photovoltaic systems
- Energy-efficient consumption during production: LED lighting
- Repairability, durability and quality: 15-year warranty on series products made in Germany
- Recyclability: Our products are mostly made of aluminium, steel or wood and can be fed directly into the recycling process.
- Socially acceptable working conditions in production: fair wages, gender equality
- Economical and recyclable packaging: no use of polystyrene, predominantly use of wood and cardboard, small amounts of plastic
- No health hazards for the users
Scope of supply
- Platform: 1 x
- Installation material: 1 x
Safety. Made in Germany.
Comparison table

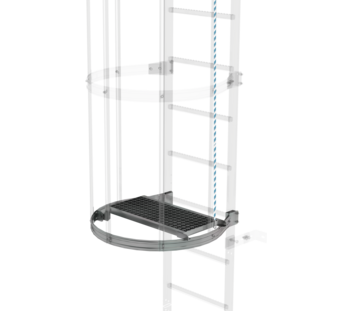

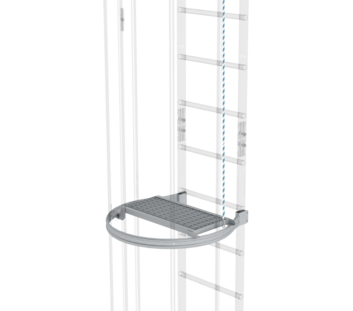

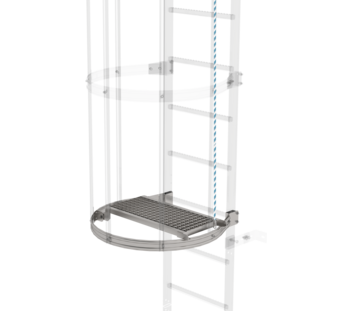

| Product name | Intermediate platform, folding Bright aluminium | Intermediate platform, folding Anodised aluminium | Intermediate platform, folding Stainless steel V2A | Intermediate platform, folding Galvanised steel |
|---|---|---|---|---|
| Material | Aluminium | Anodised aluminium | Stainless steel | Galvanised steel |
| Weight | 4.5 kg | 4 kg | 6.5 kg | 9 kg |
| Transport dimensions | 680 x 750 x 180 mm, 4.5 kg | 685 x 750 x 150 mm, 4 kg | 764 x 680 x 175 mm, 6.5 kg | 695 x 75 x 170 mm, 9 kg |
| Business division | MUNK Günzburger Steigtechnik | MUNK Günzburger Steigtechnik | MUNK Günzburger Steigtechnik | MUNK Günzburger Steigtechnik |
| Article no. | 062960 | 061960 | 068960 | 063960 |
| Price | € 475.00 | € 571.00 | € 819.00 | € 459.00 |
| Buy online |
Fixed ladders overview
All fixed ladders / vertical ladders at a glance:
- Single-flight vertical ladders in accordance with DIN 18799-1/-3, DIN 14094-1 and DIN EN ISO 14122-4 (depending on the choice of standard and the situation on site at the exit, additional components such as exit steps, railings and safety doors may be required)
- DIN 18799-1: Stationary multiple-flight vertical ladders on buildings
- DIN 14094-1: Multiple-flight emergency ladder systems (emergency ladders)
- DIN EN ISO 14122-4: Stationary multiple-flight vertical ladders on machinery
Technical changes and price changes reserved. Dimensions and weights are approximate values. Liability for errors and mistakes excluded. Illustrations similar, some illustrations show special equipment. Preview images are representative of a product family and may therefore differ visually from the actual product you are looking for, e.g. in terms of number of steps or material.
