Order no.
: 063264

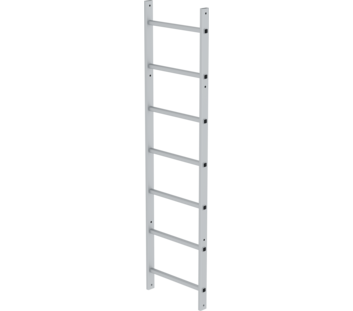

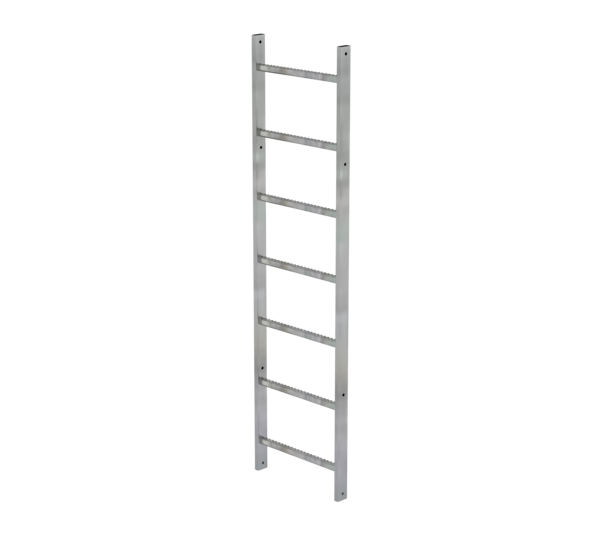

Ladder section galvanised steel
€ 151.00
RRP without VAT
Specifications
Length
1.96 m
Outer width
520 mm
Step/Rung height
30 mm
Step depth
30 mm
Step/Rung distance
280 mm
Number of steps/rungs
7 rungs
Max. load capacity
150 kg
Material
Galvanised steel
Weight
11.5 kg
Transport dimensions
1955 x 520 x 60 mm, 11.5 kg
Business division
MUNK Günzburger Steigtechnik
Article no.
063264
Price
€ 151.00
Information
- Ladder width 520 mm
- Rung distance: 280 mm
- Side-rail dimensions: 60 x 25 mm
- Dimension of rungs: 30 x 30 mm
- Rung design: with anodised aluminium and bright aluminium grooved rungs, with galvanised steel and stainless steel perforated rungs
- Corporate certification: ISO 9001
- Corporate certification: EN 1090
- Corporate certification: EcoVadis
- RoHS
- REACH
- The MUNK Group complies with a Code of Conduct
- The Supply Chain Act does not apply due to our size
- The materials used are listed in the technical specification
- Resource-saving production: own photovoltaic systems
- Energy-efficient consumption during production: LED lighting
- Repairability, durability and quality: 15-year warranty on series products made in Germany
- Recyclability: Our products are mostly made of aluminium, steel or wood and can be fed directly into the recycling process.
- Socially acceptable working conditions in production: fair wages, gender equality
- Economical and recyclable packaging: no use of polystyrene, predominantly use of wood and cardboard, small amounts of plastic
- No health hazards for the users
Scope of supply
- Ladder section: 1 x
- Assembly instructions: 1 x
Safety. Made in Germany.
Comparison table
| Product name | Ladder section galvanised steel 7 rungs | Ladder section galvanised steel 10 rungs | Ladder section galvanised steel 13 rungs |
|---|---|---|---|
| Length | 1.96 m | 2.8 m | 3.64 m |
| Outer width | 520 mm | 520 mm | 520 mm |
| Step/Rung height | 30 mm | 30 mm | 30 mm |
| Step depth | 30 mm | 30 mm | 30 mm |
| Step/Rung distance | 280 mm | 280 mm | 280 mm |
| Number of steps/rungs | 7 rungs | 10 rungs | 13 rungs |
| Max. load capacity | 150 kg | 150 kg | 150 kg |
| Material | Galvanised steel | Galvanised steel | Galvanised steel |
| Weight | 11.5 kg | 16.5 kg | 21.5 kg |
| Transport dimensions | 1955 x 520 x 60 mm, 11.5 kg | 2795 x 520 x 60 mm, 16.5 kg | 3635 x 520 x 60 mm, 21.5 kg |
| Business division | MUNK Günzburger Steigtechnik | MUNK Günzburger Steigtechnik | MUNK Günzburger Steigtechnik |
| Article no. | 063264 | 063265 | 063266 |
| Price | € 151.00 | € 225.00 | € 298.00 |
| Buy online |
Fixed ladders overview
All fixed ladders / vertical ladders at a glance:
- Single-flight vertical ladders in accordance with DIN 18799-1/-3, DIN 14094-1 and DIN EN ISO 14122-4 (depending on the choice of standard and the situation on site at the exit, additional components such as exit steps, railings and safety doors may be required)

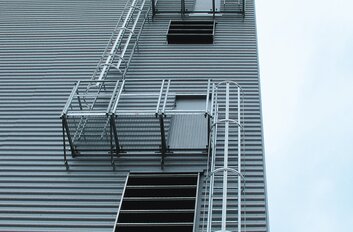

- DIN 18799-1: Stationary multiple-flight vertical ladders on buildings
- DIN 14094-1: Multiple-flight emergency ladder systems (emergency ladders)
- DIN EN ISO 14122-4: Stationary multiple-flight vertical ladders on machinery
