Order no.
: 040352

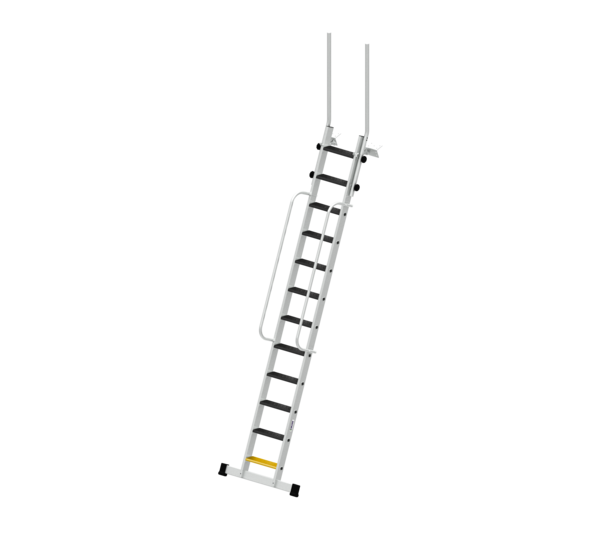

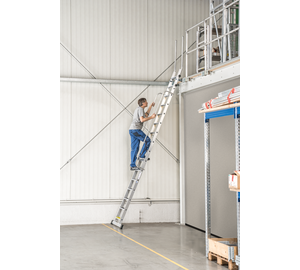

Level access ladder
€ 1,167.00
RRP without VAT
Specifications
Step design
Steps
Number of steps/rungs
12 steps
Step width
371 mm
Step depth
80 mm
Step/Rung distance
235 mm
Type of non-slip protection
clip-step R13
Ladder length
3.14 m
Inclination
70 °
Base area
1.22 m
Outer width
470 mm
Stabiliser width
930 mm
Depth of side-rails
73 mm
Width of side-rails
25 mm
Max. load capacity
150 kg
Design type
To hang up
Handrail length
1.3 m
Weight
16.5 kg
Transport dimensions
3000 x 420 x 300 mm, 16.5 kg
Business division
MUNK Günzburger Steigtechnik
Article no.
040352
Price
€ 1,167.00
Information
- Aluminium step straight ladder
- Stable rectangular tube side-rails
- 80 mm-deep steps with clip-step R13 slip-resistant step padding
- 4-fold edged step-to-side-rail connection
- Standard stabiliser 930 mm with non-slip ladder shoes

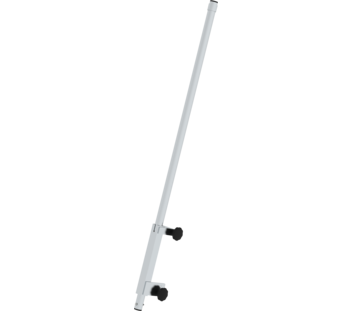

- Two rigid exit side-rails that can be attached without tools (enclosed loose)
- Two pre-assembled handrails for safe ascent and descent
- Two pre-assembled ladder head protection beams
- Step spacing: 235 mm
- Ladder inclination: 70°
- Maximum load: 150 kg
- Corporate certification: ISO 9001
- Corporate certification: EN 1090
- Corporate certification: EcoVadis
- RoHS
- REACH
- The MUNK Group complies with a Code of Conduct
- The Supply Chain Act does not apply due to our size
- The materials used are listed in the technical specification
- Resource-saving production: own photovoltaic systems
- Energy-efficient consumption during production: LED lighting
- Repairability, durability and quality: 15-year warranty on series products made in Germany
- Recyclability: Our products are mostly made of aluminium, steel or wood and can be fed directly into the recycling process.
- Socially acceptable working conditions in production: fair wages, gender equality
- Economical and recyclable packaging: no use of polystyrene, predominantly use of wood and cardboard, small amounts of plastic
- No health hazards for the users
Scope of supply
- Ladder: 1 x
- Stabiliser (enclosed separately): 1 x
- Handrail (mounted): 2 x
- Exit rail: 2 x
- Ladder head protection: 2 x
- Instructions for use and operation: 1 x
Safety. Made in Germany.
Comparison table

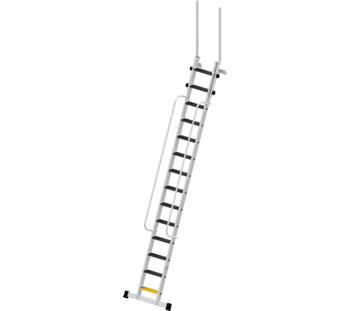

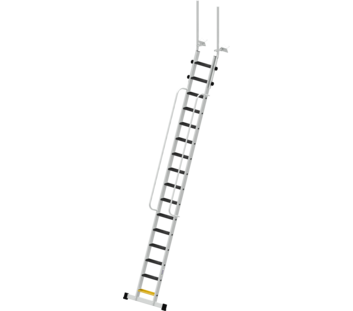

| Product name | Level access ladder 12 steps | Level access ladder 14 steps | Level access ladder 16 steps |
|---|---|---|---|
| Step design | Steps | Steps | Steps |
| Number of steps/rungs | 12 steps | 14 steps | 16 steps |
| Step width | 371 mm | 371 mm | 371 mm |
| Step depth | 80 mm | 80 mm | 80 mm |
| Step/Rung distance | 235 mm | 235 mm | 235 mm |
| Type of non-slip protection | clip-step R13 | clip-step R13 | clip-step R13 |
| Ladder length | 3.14 m | 3.64 m | 4.14 m |
| Inclination | 70 ° | 70 ° | 70 ° |
| Base area | 1.22 m | 1.4 m | 1.57 m |
| Outer width | 470 mm | 470 mm | 470 mm |
| Stabiliser width | 930 mm | 930 mm | 930 mm |
| Depth of side-rails | 73 mm | 73 mm | 73 mm |
| Width of side-rails | 25 mm | 25 mm | 25 mm |
| Max. load capacity | 150 kg | 150 kg | 150 kg |
| Design type | To hang up | To hang up | To hang up |
| Handrail length | 1.3 m | 2 m | 2 m |
| Weight | 16.5 kg | 18.7 kg | 20.3 kg |
| Transport dimensions | 3000 x 420 x 300 mm, 16.5 kg | 3500 x 420 x 300 mm, 18.7 kg | 3950 x 420 x 300 mm, 20.3 kg |
| Business division | MUNK Günzburger Steigtechnik | MUNK Günzburger Steigtechnik | MUNK Günzburger Steigtechnik |
| Article no. | 040352 | 040354 | 040356 |
| Price | € 1,167.00 | € 1,290.00 | € 1,367.00 |
| Buy online |
Technical changes and price changes reserved. Dimensions and weights are approximate values. Liability for errors and mistakes excluded. Illustrations similar, some illustrations show special equipment. Preview images are representative of a product family and may therefore differ visually from the actual product you are looking for, e.g. in terms of number of steps or material.
