Specifications
Product type
Breathing apparatus
Length
1.2 m
Width
800 mm
Height
1.19 m
Height up to top edge of extension
1.19 m
Max. load capacity
500 kg
Castor diameter
200 mm
Braking system
Standard
Number of levels
3
Number of breathing apparatuses
6
Number of breathing apparatus cylinders
0
Weight
122 kg
Transport dimensions
1200 x 800 x 1185 mm, 142 kg
Business division
MUNK Rettungstechnik
Article no.
120006
Information

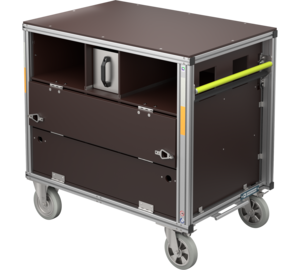

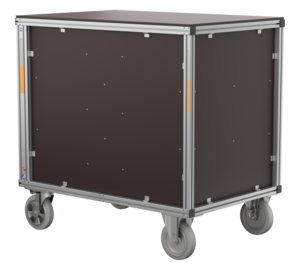

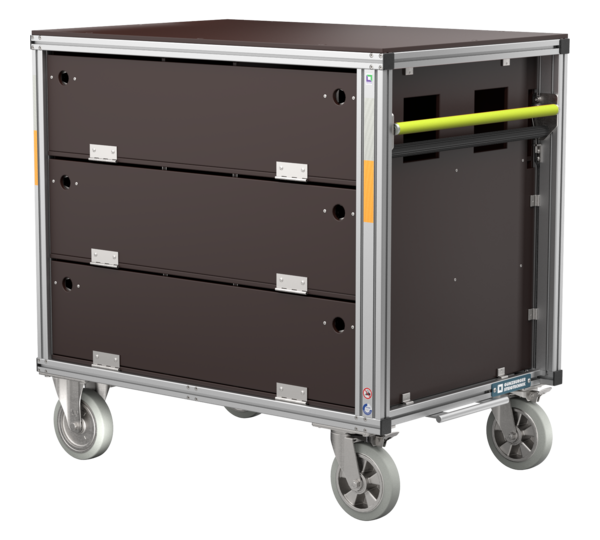

- Mobile container with "standard" undercarriage
- For the safe and protected transport of six breathing apparatuses (single canister) and six respirator masks with filters and regulators
- Closed structure made of 12 mm wooden platform boards
- Division into three storage levels with closing flaps
- Including three storage trays made of aluminium with handle (L x W x H: (673 x 222 x 230 mm))
- Compartment for breathing apparatus (L x W x H 730 x 410 x 270 mm)
- Further sizes and versions available on request
- Optionally also available with "Quadro" and "Quadro Light" undercarriage
- Scope of delivery without equipment items
- Series production quality equipment
- Stable and durable construction made of high-strength aluminium sections
- Platforms made of weatherproof wooden platform boards
- Ergo-Glow-Grip operation via continuous handle bar with non-slip and cold-insulating SoftGrip coating
- Robust and smooth-running actuating mechanism via flexible Bowden cable
- Two ball bearing castors Ø 200 mm with central wheel slewing arrestor for optimum handling
- Two ball bearing fixed castors Ø 200 mm with drum brake and dead man's function, resistant to dust, moisture and oil
- Foot-operated parking brake
- DEKRA certificate: Load securing in connection with load securing system
- Corporate certification: ISO 9001
- Corporate certification: EN 1090
- Corporate certification: EcoVadis
- RoHS
- REACH
- The MUNK Group complies with a Code of Conduct
- The Supply Chain Act does not apply due to our size
- The materials used are listed in the technical specification
- Resource-saving production: own photovoltaic systems
- Energy-efficient consumption during production: LED lighting
- Repairability, durability and quality: 15-year warranty on series products made in Germany
- Recyclability: Our products are mostly made of aluminium, steel or wood and can be fed directly into the recycling process.
- Socially acceptable working conditions in production: fair wages, gender equality
- Economical and recyclable packaging: no use of polystyrene, predominantly use of wood and cardboard, small amounts of plastic
- No health hazards for the users
Scope of supply
- Mobile container: 1 x
Certificates
Comparison table
| Product name | Mobile container breathing apparatus | Mobile container breathing apparatus and spare canisters | Mobile container breathing apparatus boxes | Mobile container breathing apparatus boxes and spare canisters |
|---|---|---|---|---|
| Product type | Breathing apparatus | Breathing apparatus and spare bottles | Breathing apparatus boxes | Breathing apparatus boxes and spare bottles |
| Length | 1.2 m | 1.2 m | 1.34 m | 1.2 m |
| Width | 800 mm | 800 mm | 800 mm | 800 mm |
| Height | 1.19 m | 1.38 m | 1.58 m | 1.7 m |
| Height up to top edge of platform | - | 1.38 m | - | - |
| Height up to top edge of extension | 1.19 m | - | 1.22 m | - |
| Max. load capacity | 500 kg | 500 kg | 500 kg | 500 kg |
| Castor diameter | 200 mm | 200 mm | 200 mm | 200 mm |
| Braking system | Standard | Standard | Standard | Standard |
| Number of levels | 3 | 4 | 3 | 3 |
| Number of breathing apparatuses | 6 | 6 | 9 | 6 |
| Number of breathing apparatus cylinders | 0 | 6 | - | 6 |
| Weight | 122 kg | 140 kg | 113 kg | 146 kg |
| Transport dimensions | 1200 x 800 x 1185 mm, 142 kg | 1200 x 800 x 1370 mm, 170 kg | 1350 x 800 x 1570 mm, 133 kg | 1200 x 800 x 1690 mm, 166 kg |
| Business division | MUNK Rettungstechnik | MUNK Rettungstechnik | MUNK Rettungstechnik | MUNK Rettungstechnik |
| Article no. | 120006 | 120016 | 120046 | 120036 |
Mobile container standard design
- The following equipment features are included as standard with every mobile container in the "Standard" assortment
- Body made of high-strength aluminium screw channel profile
-
-
-
- Galvanised steel foot parking brake for swivel castors
-
-
Technical changes and price changes reserved. Dimensions and weights are approximate values. Liability for errors and mistakes excluded. Illustrations similar, some illustrations show special equipment. Preview images are representative of a product family and may therefore differ visually from the actual product you are looking for, e.g. in terms of number of steps or material.
