Specifications
Working height
2.99 m
Platform height
990 mm
Top surface depth
460 mm
Top surface width
850 mm
Non-slip class
R9
Base area length
460 mm
Base area width
850 mm
Number of steps/rungs
5 steps
Height
2.1 m
Max. load capacity
150 kg
Material
Aluminium
Weight
100 kg
Transport dimensions
1467 x 970 x 2100 mm, 100 kg
Business division
MUNK Günzburger Steigtechnik
Article no.
070775
Information

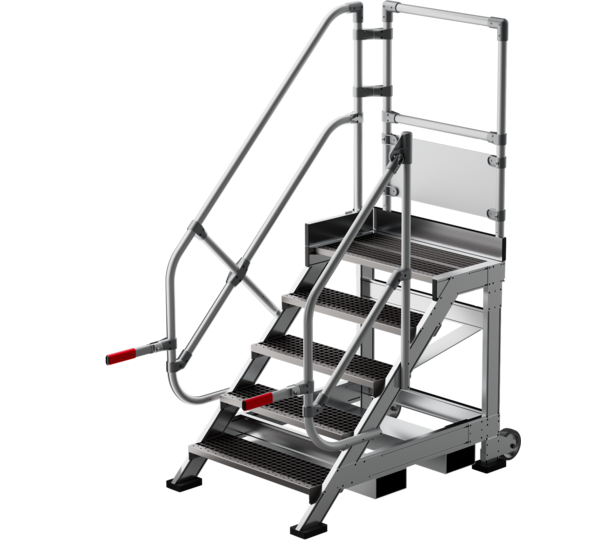

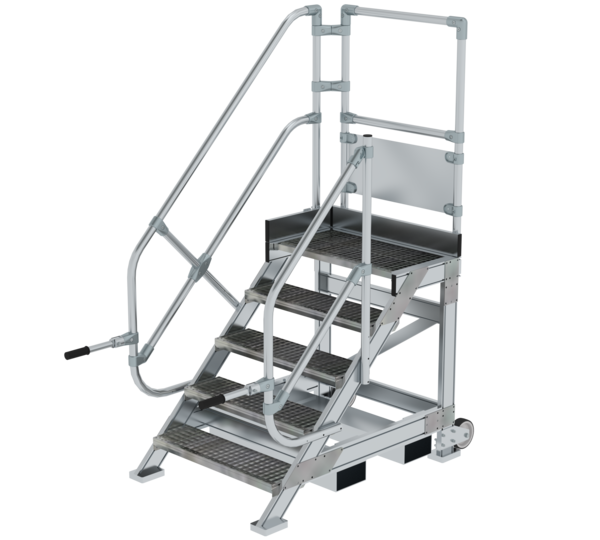

- Aluminium work platform accessible from one side with 45° inclination
- Steps with a depth of 240 mm
- Platform length: 460 mm
- Step and platform design in corrugated aluminium as standard (R 9), for outdoor use we recommend coverings made of steel grating (R 12) or aluminium grating (R 13)
- Two fold-out handles on the handrails
- Forklift receptacles across the rise
- Rigid railing and handrail on one side left and front side
- Rigid handrail on the right side
- Platform on the right without railing
- Foot plates welded on
- Easy to move to new locations thanks to two lifting castors, Ø 150 mm
- Maximum load: 300 kg
- Corporate certification: ISO 9001
- Corporate certification: EN 1090
- Corporate certification: EcoVadis
- RoHS
- REACH
- The MUNK Group complies with a Code of Conduct
- The Supply Chain Act does not apply due to our size
- The materials used are listed in the technical specification
- Resource-saving production: own photovoltaic systems
- Energy-efficient consumption during production: LED lighting
- Repairability, durability and quality: 15-year warranty on series products made in Germany
- Recyclability: Our products are mostly made of aluminium, steel or wood and can be fed directly into the recycling process.
- Socially acceptable working conditions in production: fair wages, gender equality
- Economical and recyclable packaging: no use of polystyrene, predominantly use of wood and cardboard, small amounts of plastic
- No health hazards for the users
Scope of supply
- Platform: 1 x
- Instructions for use and operation: 1 x
Safety. Made in Germany.
Technical changes and price changes reserved. Dimensions and weights are approximate values. Liability for errors and mistakes excluded. Illustrations similar, some illustrations show special equipment. Preview images are representative of a product family and may therefore differ visually from the actual product you are looking for, e.g. in terms of number of steps or material.
