Order no.
: 930209

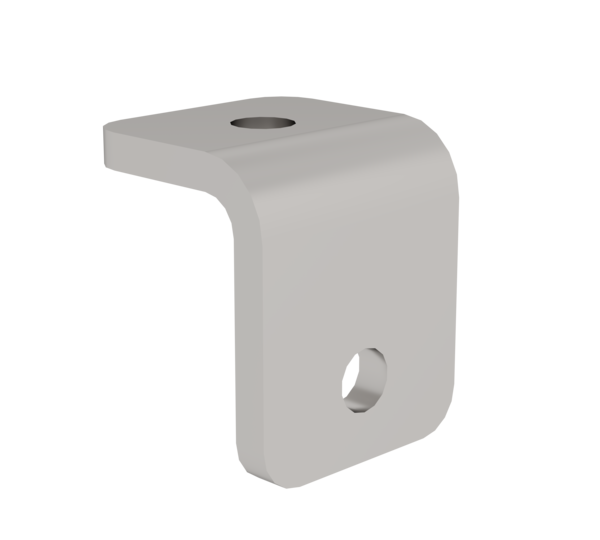

Mounting bracket 30x30 mm
Price on demand
Specifications
Material
Galvanised steel
Profile dimension X
30 mm
Profile dimension Y
30 mm
Weight/piece
46 g
Groove size
6 mm
Dimension A
27 mm
Dimension B
34 mm
Dimension C
4 mm
Article no.
930209
Information
- Profile angle for profile 30
- Flat, space-saving angle
- For joining profiles to each other
- For assembling different components
- No machining required
These profile angles are the ideal solution for your assembly troubles. Thanks to their flat, space-saving shape, you can very simply place the brackets between two profiles and thus join different components to each other. No machining required!
Scope of supply
- Mounting bracket: 1 x
Comparison table

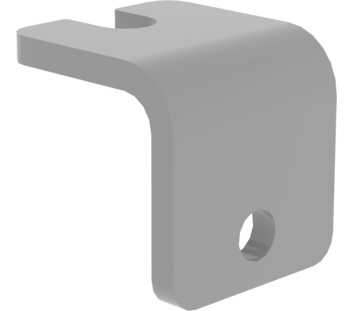

| Product name | Mounting bracket 30x30 mm | Mounting bracket 40x40 mm |
|---|---|---|
| Material | Galvanised steel | Galvanised steel |
| Profile dimension X | 30 mm | 40 mm |
| Profile dimension Y | 30 mm | 40 mm |
| Weight/piece | 46 g | 100 g |
| Groove size | 6 mm | 8 mm |
| Dimension A | 27 mm | 37 mm |
| Dimension B | 34 mm | 40 mm |
| Dimension C | 4 mm | 5 mm |
| Article no. | 930209 | 930208 |
Technical changes and price changes reserved. Dimensions and weights are approximate values. Liability for errors and mistakes excluded. Illustrations similar, some illustrations show special equipment. Preview images are representative of a product family and may therefore differ visually from the actual product you are looking for, e.g. in terms of number of steps or material.
