Order no.
: 031310

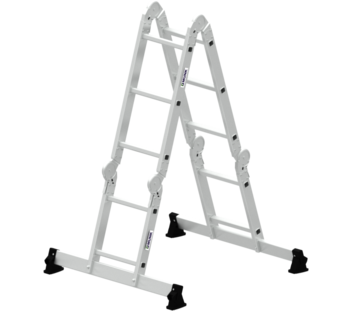

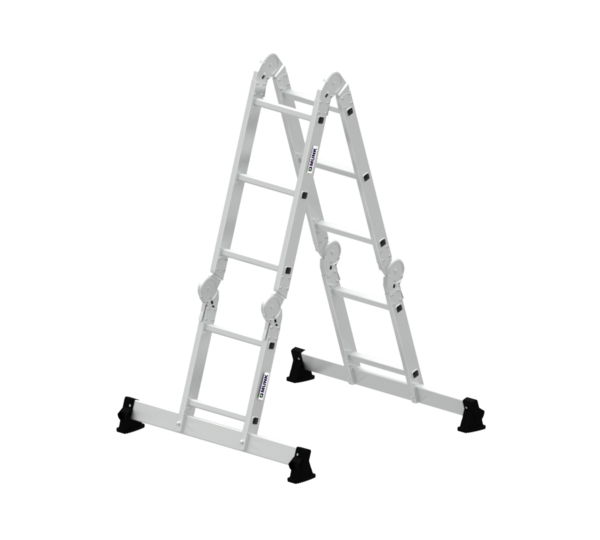

Multi-function ladder 4-section with nivello® stabiliser
€ 369.00
RRP without VAT
Specifications
Working height
4 m
Step design
Rungs
Number of steps/rungs
2x2 + 2x3 rungs
Step/Rung height
30 mm
Step depth
30 mm
Step/Rung distance
280 mm
Ladder length as straight ladder
2.85 m
Ladder length as double-sided ladder
1.49 m
Base spread as double ladder
990 mm
Inclination
70 °

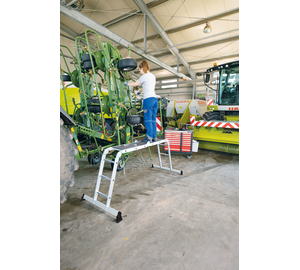

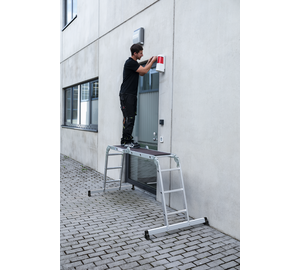

Height as working platform
630 mm
Length as working platform
1.4 m
Base spread as working platform
2.17 m
Outer width
350 mm
Stabiliser width
930 mm
Depth of side-rails
58 mm
Width of side-rails
25 mm
Max. load capacity
150 kg
Weight
12.5 kg
Transport dimensions
933 x 360 x 273 mm, 12.5 kg
Business division
MUNK Günzburger Steigtechnik
Article no.
031310
Price
€ 369.00
Information
- Aluminium multi-function rung ladder
- Stable rectangular tube side-rails
- Rectangular rungs grooved on both sides, 30 x 30 mm
- 4-fold edged rung-to-side-rail connection
- Can be used as step and straight ladder or optionally as working platform (see accessories)
- Optimum operational safety due to six automatically locking steel hinges

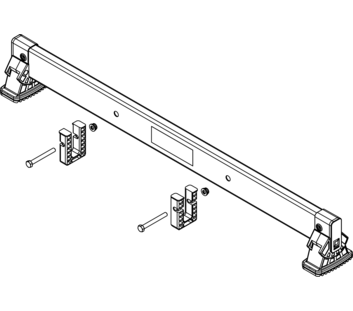

- nivello® stabilisers for extra safe stance and ascent (double-sided, enclosed separately)
- Rung distance: 280 mm
- Ladder width: 350 mm
- Maximum load: 150 kg
- Note: In accordance with TRBS 2121 Part 2, a suitable accessory is required for working on this ladder
- Note: According to DIN EN 131-4, a platform must also be ordered when using as a work platform (e.g. wooden surface)
- Corporate certification: ISO 9001
- Corporate certification: EN 1090
- Corporate certification: EcoVadis
- RoHS
- REACH
- The MUNK Group complies with a Code of Conduct
- The Supply Chain Act does not apply due to our size
- The materials used are listed in the technical specification
- Resource-saving production: own photovoltaic systems
- Energy-efficient consumption during production: LED lighting
- Repairability, durability and quality: 15-year warranty on series products made in Germany
- Recyclability: Our products are mostly made of aluminium, steel or wood and can be fed directly into the recycling process.
- Socially acceptable working conditions in production: fair wages, gender equality
- Economical and recyclable packaging: no use of polystyrene, predominantly use of wood and cardboard, small amounts of plastic
- No health hazards for the users
Scope of supply
- Ladder: 1 x
- Stabiliser (enclosed separately): 2 x
- Instructions for use and operation: 1 x
Certificates
Safety. Made in Germany.
Comparison table
| Product name | Multi-function ladder 4-section with nivello® stabiliser 2x2 + 2x3 rungs | Multi-function ladder 4-section with nivello® stabiliser 2x3 + 2x4 rungs | Multi-function ladder 4-section with nivello® stabiliser 4x3 rungs | Multi-function ladder 4-section with nivello® stabiliser 4x4 rungs |
|---|---|---|---|---|
| Working height | 4 m | 5.3 m | 4.8 m | 5.85 m |
| Step design | Rungs | Rungs | Rungs | Rungs |
| Number of steps/rungs | 2x2 + 2x3 rungs | 2x3 + 2x4 rungs | 4x3 rungs | 4x4 rungs |
| Step/Rung height | 30 mm | 30 mm | 30 mm | 30 mm |
| Step depth | 30 mm | 30 mm | 30 mm | 30 mm |
| Step/Rung distance | 280 mm | 280 mm | 280 mm | 280 mm |
| Ladder length as straight ladder | 2.85 m | 4.2 m | 3.65 m | 4.75 m |
| Ladder length as double-sided ladder | 1.49 m | 2.02 m | 1.76 m | 2.3 m |
| Base spread as double ladder | 990 mm | 1.39 m | 1.21 m | 1.55 m |
| Inclination | 70 ° | 70 ° | 70 ° | 70 ° |
| Height as working platform | 630 mm | 990 mm | 990 mm | - |
| Length as working platform | 1.4 m | 1.96 m | 1.4 m | - |
| Base spread as working platform | 2.17 m | 2.95 m | 2.4 m | - |
| Outer width | 350 mm | 350 mm | 350 mm | 350 mm |
| Stabiliser width | 930 mm | 930 mm | 930 mm | 930 mm |
| Depth of side-rails | 58 mm | 58 mm | 58 mm | 58 mm |
| Width of side-rails | 25 mm | 25 mm | 25 mm | 25 mm |
| Max. load capacity | 150 kg | 150 kg | 150 kg | 150 kg |
| Weight | 12.5 kg | 14.5 kg | 14 kg | 15.5 kg |
| Transport dimensions | 933 x 360 x 273 mm, 12.5 kg | 1215 x 360 x 275 mm, 14.5 kg | 945 x 360 x 260 mm, 14 kg | 1229 x 360 x 263 mm, 15.5 kg |
| Business division | MUNK Günzburger Steigtechnik | MUNK Günzburger Steigtechnik | MUNK Günzburger Steigtechnik | MUNK Günzburger Steigtechnik |
| Article no. | 031310 | 031314 | 031312 | 011111 |
| Price | € 369.00 | € 422.00 | € 397.00 | € 419.00 |
| Buy online |
Product video
Note: Working heights
- National regulations (e.g. TRBS 2121 Part 2 in Germany) must be complied with with regard to the maximum working height when using the ladder as a workstation.
- Information on TRBS 2121 Part 2 has been summarised on our Service page
- Read our tips and tricks on how to calculate working height
Technical changes and price changes reserved. Dimensions and weights are approximate values. Liability for errors and mistakes excluded. Illustrations similar, some illustrations show special equipment. Preview images are representative of a product family and may therefore differ visually from the actual product you are looking for, e.g. in terms of number of steps or material.
