Order no.
: 011107
Multi-purpose ladder, 3-section with nivello® stabiliser
€ 486.00
RRP without VAT
Specifications
Working height
6.1 m
Step design
Rungs
Number of steps/rungs
3x
7 rungs
Step/Rung height
30 mm
Step depth
30 mm
Step/Rung distance
280 mm
Ladder length, three-part, straight
5.03 m
Ladder length, 2-part, double-sided with attachable section
3.6 m
Base spread as double ladder
1.54 m
Inclination
70 °
Retracted length
2.22 m
Length of ladder sections
2.22 m
Outer width
490 mm
Stabiliser width
930 mm
Depth of side-rails
73 mm
Width of side-rails
25 mm
Max. load capacity
150 kg
Weight
16 kg
Transport dimensions
2200 x 505 x 200 mm, 16 kg
Business division
MUNK Günzburger Steigtechnik
Article no.
011107
Price
€ 486.00
Information
- Multi-purpose rung ladder made from aluminium
- Stable rectangular tube side-rails
- Rectangular rungs grooved on both sides, 30 x 30 mm
- 4-fold edged rung-to-side-rail connection
- Can be used as a step ladder, straight ladder and push-up extension ladder
- Suitable for stairs with ladder length up to 3.0 m

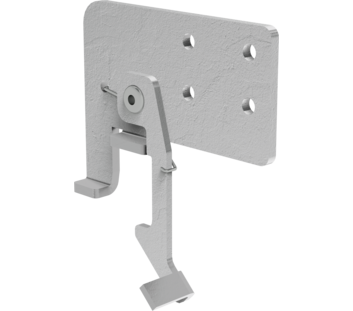

- Simple height adjustment from rung to rung thanks to insertion hook with automatically engaging lift-off protection
- nivello® ladder shoes and nivello® stabiliser (enclosed separately)
- Spreader lock with two high-strength polyester straps and detachable metal strut
- Rung distance: 280 mm
- Ladder width: 490 mm (without stabiliser)
- Maximum load: 150 kg

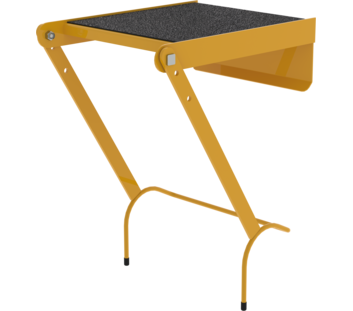

- Note: In accordance with TRBS 2121 Part 2, a suitable accessory is required for working on this ladder
- Corporate certification: ISO 9001
- Corporate certification: EN 1090
- Corporate certification: EcoVadis
- RoHS
- REACH
- The MUNK Group complies with a Code of Conduct
- The Supply Chain Act does not apply due to our size
- The materials used are listed in the technical specification
- Resource-saving production: own photovoltaic systems
- Energy-efficient consumption during production: LED lighting
- Repairability, durability and quality: 15-year warranty on series products made in Germany
- Recyclability: Our products are mostly made of aluminium, steel or wood and can be fed directly into the recycling process.
- Socially acceptable working conditions in production: fair wages, gender equality
- Economical and recyclable packaging: no use of polystyrene, predominantly use of wood and cardboard, small amounts of plastic
- No health hazards for the users
Scope of supply
- Ladder: 1 x
- Stabiliser (enclosed separately): 1 x
- Instructions for use and operation: 1 x
Certificates
Safety. Made in Germany.
Comparison table
| Product name | Multi-purpose ladder, 3-section with nivello® stabiliser 3x7 rungs | Multi-purpose ladder, 3-section with nivello® stabiliser 3x9 rungs | Multi-purpose ladder, 3-section with nivello® stabiliser 3x11 rungs | Multi-purpose ladder, 3-section with nivello® stabiliser 3x13 rungs |
|---|---|---|---|---|
| Working height | 6.1 m | 7.8 m | 8.9 m | 10.6 m |
| Step design | Rungs | Rungs | Rungs | Rungs |
| Number of steps/rungs | 3x7 rungs | 3x9 rungs | 3x11 rungs | 3x13 rungs |
| Step/Rung height | 30 mm | 30 mm | 30 mm | 30 mm |
| Step depth | 30 mm | 30 mm | 30 mm | 30 mm |
| Step/Rung distance | 280 mm | 280 mm | 280 mm | 280 mm |
| Ladder length, three-part, straight | 5.03 m | 6.71 m | 7.83 m | 9.51 m |
| Ladder length, 2-part, double-sided with attachable section | 3.6 m | 4.7 m | 5.5 m | 6.61 m |
| Base spread as double ladder | 1.54 m | 1.96 m | 2.32 m | 2.56 m |
| Inclination | 70 ° | 70 ° | 70 ° | 70 ° |
| Retracted length | 2.22 m | 2.78 m | 3.34 m | 3.9 m |
| Length of ladder sections | 2.22 m | 2.78 m | 3.34 m | 3.9 m |
| Outer width | 490 mm | 490 mm | 490 mm | 490 mm |
| Stabiliser width | 930 mm | 1.2 m | 1.2 m | 1.2 m |
| Depth of side-rails | 73 mm | 73 mm | 85 mm | 98 mm |
| Width of side-rails | 25 mm | 25 mm | 25 mm | 25 mm |
| Max. load capacity | 150 kg | 150 kg | 150 kg | 150 kg |
| Weight | 16 kg | 19.5 kg | 26 kg | 35.38 kg |
| Transport dimensions | 2200 x 505 x 200 mm, 16 kg | 2760 x 505 x 202 mm, 19.5 kg | 3310 x 505 x 212 mm, 26 kg | 3910 x 505 x 225 mm, 35.38 kg |
| Business division | MUNK Günzburger Steigtechnik | MUNK Günzburger Steigtechnik | MUNK Günzburger Steigtechnik | MUNK Günzburger Steigtechnik |
| Article no. | 011107 | 011108 | 011109 | 011144 |
| Price | € 486.00 | € 577.00 | € 732.00 | € 855.00 |
| Buy online |
Product video
Note: Working heights
- National regulations (e.g. TRBS 2121 Part 2 in Germany) must be complied with with regard to the maximum working height when using the ladder as a workstation.
- Information on TRBS 2121 Part 2 has been summarised on our Service page
- Read our tips and tricks on how to calculate working height
Technical changes and price changes reserved. Dimensions and weights are approximate values. Liability for errors and mistakes excluded. Illustrations similar, some illustrations show special equipment. Preview images are representative of a product family and may therefore differ visually from the actual product you are looking for, e.g. in terms of number of steps or material.
