Order no.
: 510130

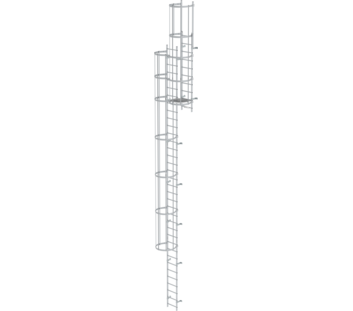

Multiple-flight vertical ladder with back protection (construction) bright aluminium
€ 3,685.00
RRP without VAT
Specifications
Climbing height
10.64 m
Ladder length incl. exit side-rail
11.84 m
Outer width
520 mm
Depth of side-rails
60 mm
Width of side-rails
25 mm
Wall distance
200 mm
Intended use
on buildings
Design type
Multiple-flight
Material
Aluminium
Weight
96 kg
Business division
MUNK Günzburger Steigtechnik
Article no.
510130
Price
€ 3,685.00
Information

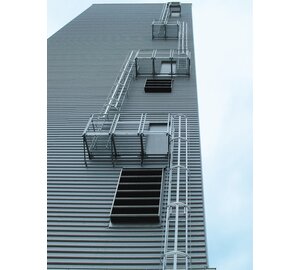

- Range of application: On buildings for maintenance and cleaning work. For chimneys, specific regulations apply to the attachment and back protection.
- Irrespective of the climbing height:
- Either back protection or safety railing can be used as fall protection (combination not permitted as the rescue of persons is then hindered by the back protection)
- The need for an occupational medical examination for suitability for working at height (e.g. G 41) depends on the risk assessment (e.g. total climbing height, type of safety railing) of the respective vertical ladder systems
- Proof of the load-bearing capacity of the underlying surface must be provided for each construction project by a responsible stability expert
- Barrier (safety door) is always required
- The vertical overlap of successive ladder flights must be at least 1,680 mm
- At unsecured exit levels, railings attached to both sides of the vertical ladder or led into the exit level are required
- Gap at exit step must not be larger than 75 mm
- Step-on dimension: Distance from the entry level to the first rung: 100 – 400 mm. If the exit is to the front, the uppermost rung must be at the same height as the exit level
- Step-on dimension: Distance from entry level to the first rung 100–400 mm
- When exiting forwards, the uppermost rung must be at the height of the exit side-rail
- Vertical ladders with fall protection require at least 800 × 800 mm clear space available in front of the ladder when climbing off it. These dimensions must also be observed for new installations in the existing system
- The clearances between the vertical ladder system and the railing must not exceed 180 mm
- The connection to the fall protection must be established and released from a secured standing position
- A secured standing position is, for example, a platform with railing and a secured access
- For safe gripping of the side-rails, the clearance to adjacent parts around the side-rails must be at least 75 mm (except for components forming part of the vertical ladder system)
- Corporate certification: ISO 9001
- Corporate certification: EN 1090
- Corporate certification: EcoVadis
- RoHS
- REACH
- The MUNK Group complies with a Code of Conduct
- The Supply Chain Act does not apply due to our size
- The materials used are listed in the technical specification
- Resource-saving production: own photovoltaic systems
- Energy-efficient consumption during production: LED lighting
- Repairability, durability and quality: 15-year warranty on series products made in Germany
- Recyclability: Our products are mostly made of aluminium, steel or wood and can be fed directly into the recycling process.
- Socially acceptable working conditions in production: fair wages, gender equality
- Economical and recyclable packaging: no use of polystyrene, predominantly use of wood and cardboard, small amounts of plastic
- No health hazards for the users
Scope of supply

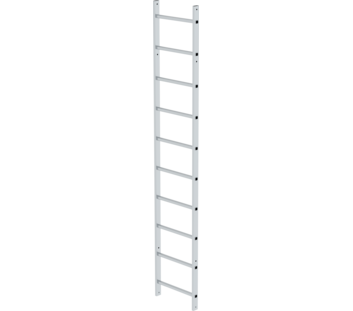

- 062265 - Ladder section bright aluminium: 2 x

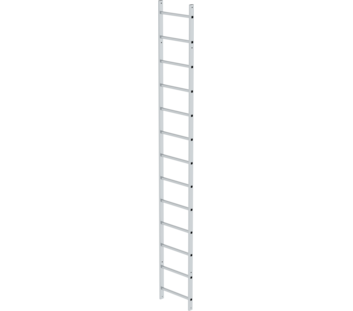

- 062266 - Ladder section bright aluminium: 2 x

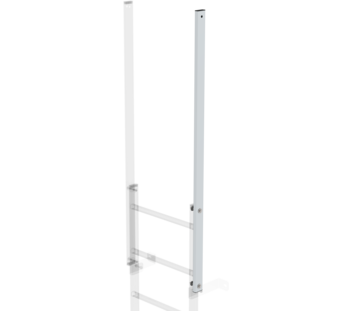

- 062243 - Exit side-rail straight: 2 x
- 063249 - Rigid wall anchor 200 mm, galvanised steel: 18 x

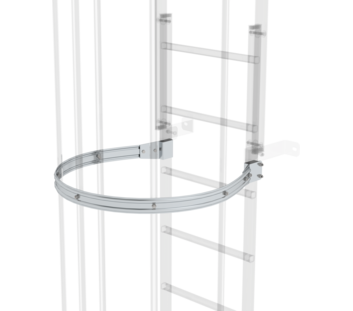

- 062234 - Ø 700 mm back protection hoop: 8 x
- 062235 - Back protection hoop strut, 3,000mm long: 19 x
- 062963 - Back protection hoop offset design: 2 x
- 063961 - Transfer platform between ladder sections, Ø 700 mm: 1 x
- 061236 - Vertical ladder connector 200 mm: 4 x
Safety. Made in Germany.
Comparison table
| Product name | Multiple-flight vertical ladder with back protection (construction) bright aluminium 11.84m | Multiple-flight vertical ladder with back protection (construction) bright aluminium 12.96m | Multiple-flight vertical ladder with back protection (construction) bright aluminium 13.80m | Multiple-flight vertical ladder with back protection (construction) bright aluminium 14.64m | Multiple-flight vertical ladder with back protection (construction) bright aluminium 15.48m | Multiple-flight vertical ladder with back protection (construction) bright aluminium 16.32m | Multiple-flight vertical ladder with back protection (construction) bright aluminium 17.16m | Multiple-flight vertical ladder with back protection (construction) bright aluminium 18.28m | Multiple-flight vertical ladder with back protection (construction) bright aluminium 19.12m | Multiple-flight vertical ladder with back protection (construction) bright aluminium 19.96m |
|---|---|---|---|---|---|---|---|---|---|---|
| Climbing height | 10.64 m | 11.76 m | 12.6 m | 13.44 m | 14.28 m | 15.12 m | 15.96 m | 17.08 m | 17.92 m | 18.76 m |
| Ladder length incl. exit side-rail | 11.84 m | 12.96 m | 13.8 m | 14.64 m | 15.48 m | 16.32 m | 17.16 m | 18.28 m | 19.12 m | 19.96 m |
| Outer width | 520 mm | 520 mm | 520 mm | 520 mm | 520 mm | 520 mm | 520 mm | 520 mm | 520 mm | 520 mm |
| Depth of side-rails | 60 mm | 60 mm | 60 mm | 60 mm | 60 mm | 60 mm | 60 mm | 60 mm | 60 mm | 60 mm |
| Width of side-rails | 25 mm | 25 mm | 25 mm | 25 mm | 25 mm | 25 mm | 25 mm | 25 mm | 25 mm | 25 mm |
| Wall distance | 200 mm | 200 mm | 200 mm | 200 mm | 200 mm | 200 mm | 200 mm | 200 mm | 200 mm | 200 mm |
| Intended use | on buildings | on buildings | on buildings | on buildings | on buildings | on buildings | on buildings | on buildings | on buildings | on buildings |
| Design type | Multiple-flight | Multiple-flight | Multiple-flight | Multiple-flight | Multiple-flight | Multiple-flight | Multiple-flight | Multiple-flight | Multiple-flight | Multiple-flight |
| Material | Aluminium | Aluminium | Aluminium | Aluminium | Aluminium | Aluminium | Aluminium | Aluminium | Aluminium | Aluminium |
| Weight | 96 kg | 102 kg | 108 kg | 113 kg | 116 kg | 123 kg | 129 kg | 134 kg | 140 kg | 145 kg |
| Business division | MUNK Günzburger Steigtechnik | MUNK Günzburger Steigtechnik | MUNK Günzburger Steigtechnik | MUNK Günzburger Steigtechnik | MUNK Günzburger Steigtechnik | MUNK Günzburger Steigtechnik | MUNK Günzburger Steigtechnik | MUNK Günzburger Steigtechnik | MUNK Günzburger Steigtechnik | MUNK Günzburger Steigtechnik |
| Article no. | 510130 | 510135 | 510140 | 510145 | 510150 | 510155 | 510160 | 510165 | 510170 | 510175 |
| Price | € 3,685.00 | € 3,936.00 | € 4,136.00 | € 4,304.00 | € 4,425.00 | € 4,728.00 | € 4,893.00 | € 5,038.00 | € 5,291.00 | € 5,512.00 |
| Buy online |
