Order no.
: 510230

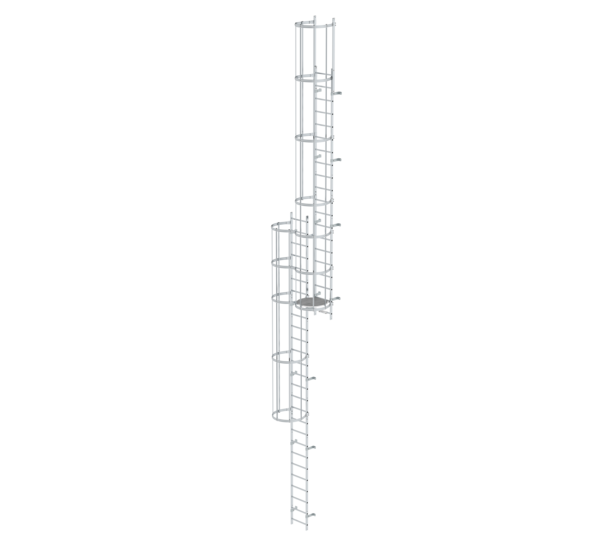

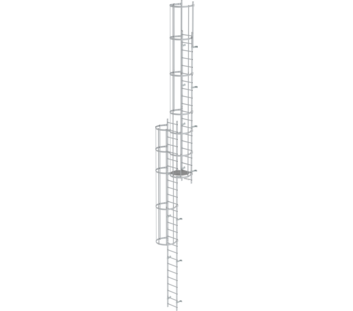

Multiple-flight vertical ladder with back protection (emergency ladder) bright aluminium
€ 3,696.00
RRP without VAT
Specifications
Climbing height
10.92 m
Ladder length incl. exit side-rail
12.12 m
Outer width
520 mm
Depth of side-rails
60 mm
Max. load capacity
150 kg
Intended use
Emergency ladder systems
Design type
Multiple-flight
Material
Aluminium
Weight
98 kg
Business division
MUNK Günzburger Steigtechnik
Article no.
510230
Price
€ 3,696.00
Information
- Range of application: Emergency ladder systems are building structures that, in the event of danger, allow capable persons to rescue themselves or allow other persons to be rescued.
- Irrespective of the climbing height:
- Safety railing is not permitted for use as fall protection
- Always consult the relevant fire protection authority when planning emergency ladder systems and, in particular, access protection
- Proof of the load-bearing capacity of the underlying surface must be provided for each construction project by a responsible stability expert
- At unsecured exit points, railings attached to both sides of the vertical ladder or led into the exit level are required
- Gap at exit step must not be larger than 75 mm
- In case of potential drop heights of more than 1 m, holding devices have to be fitted on exits, entries and bridges
- For lateral bridging steps, the ladder sections must run at a higher level
- Step-on dimension: Distance between entry level and first rung: 100–400 mm; uppermost rung flush with the entry level
- The clearances between the vertical ladder system and the railing must not exceed 120 mm
- Release mechanism for emergency descent ladder via foot-operated lever or safety barrier
- A vertically movable ladder section is only permitted with the lowest section of ladder. This extendible ladder section must automatically drop into place before it is stood on. In the lowered state, the rungs of the extended ladder section and the lowest ladder section must be at the same height
- Access platforms must cover the entire access opening (e.g. window width) as access options on emergency ladder systems
- The vertical overlap of successive ladder flights must be at least 1,680 mm
- Climb-through openings inside balconies as well as access openings in balcony walls must be secured to prevent anyone from falling. The technical design must ensure that the function is permanently guaranteed
- The emergency vertical ladder should end in load-bearing and secured areas intended for escape routes leading out of the danger areas
- Corporate certification: ISO 9001
- Corporate certification: EN 1090
- Corporate certification: EcoVadis
- RoHS
- REACH
- The MUNK Group complies with a Code of Conduct
- The Supply Chain Act does not apply due to our size
- The materials used are listed in the technical specification
- Resource-saving production: own photovoltaic systems
- Energy-efficient consumption during production: LED lighting
- Repairability, durability and quality: 15-year warranty on series products made in Germany
- Recyclability: Our products are mostly made of aluminium, steel or wood and can be fed directly into the recycling process.
- Socially acceptable working conditions in production: fair wages, gender equality
- Economical and recyclable packaging: no use of polystyrene, predominantly use of wood and cardboard, small amounts of plastic
- No health hazards for the users
Scope of supply
- 062264 - Ladder section bright aluminium: 1 x
- 062265 - Ladder section bright aluminium: 4 x
- 062243 - Exit side-rail straight: 2 x
- 063249 - Rigid wall anchor 200 mm, galvanised steel: 18 x
- 062234 - Ø 700 mm back protection hoop: 8 x
- 062235 - Back protection hoop strut, 3,000mm long: 19 x
- 062963 - Back protection hoop offset design: 2 x
- 063961 - Transfer platform between ladder sections, Ø 700 mm: 1 x
- 061236 - Vertical ladder connector 200 mm: 6 x
Safety. Made in Germany.
Comparison table
| Product name | Multiple-flight vertical ladder with back protection (emergency ladder) bright aluminium 12.12m | Multiple-flight vertical ladder with back protection (emergency ladder) bright aluminium 12.96m | Multiple-flight vertical ladder with back protection (emergency ladder) bright aluminium 14.36m | Multiple-flight vertical ladder with back protection (emergency ladder) bright aluminium 15.20m | Multiple-flight vertical ladder with back protection (emergency ladder) bright aluminium 16.32m | Multiple-flight vertical ladder with back protection (emergency ladder) bright aluminium 17.16m | Multiple-flight vertical ladder with back protection (emergency ladder) bright aluminium 18.00m | Multiple-flight vertical ladder with back protection (emergency ladder) bright aluminium 18.84m | Multiple-flight vertical ladder with back protection (emergency ladder) bright aluminium 19.96m |
|---|---|---|---|---|---|---|---|---|---|
| Climbing height | 10.92 m | 11.76 m | 13.16 m | 14 m | 15.12 m | 15.96 m | 16.8 m | 17.64 m | 18.76 m |
| Ladder length incl. exit side-rail | 12.12 m | 12.96 m | 14.36 m | 15.2 m | 16.32 m | 17.16 m | 18 m | 18.84 m | 19.96 m |
| Outer width | 520 mm | 520 mm | 520 mm | 520 mm | - | 520 mm | 520 mm | 520 mm | - |
| Depth of side-rails | 60 mm | 60 mm | 60 mm | 60 mm | - | 60 mm | 60 mm | 60 mm | - |
| Max. load capacity | 150 kg | 150 kg | 150 kg | 150 kg | 150 kg | 150 kg | 150 kg | 150 kg | 150 kg |
| Intended use | Emergency ladder systems | Emergency ladder systems | Emergency ladder systems | Emergency ladder systems | Emergency ladder systems | Emergency ladder systems | Emergency ladder systems | Emergency ladder systems | Emergency ladder systems |
| Design type | Multiple-flight | Multiple-flight | Multiple-flight | Multiple-flight | Multiple-flight | Multiple-flight | Multiple-flight | Multiple-flight | Multiple-flight |
| Material | Aluminium | Aluminium | Aluminium | Aluminium | Aluminium | Aluminium | Aluminium | Aluminium | Aluminium |
| Weight | 98 kg | 106 kg | 141 kg | 144 kg | 154 kg | 158 kg | 161 kg | 168 kg | 206 kg |
| Business division | MUNK Günzburger Steigtechnik | MUNK Günzburger Steigtechnik | MUNK Günzburger Steigtechnik | MUNK Günzburger Steigtechnik | MUNK Günzburger Steigtechnik | MUNK Günzburger Steigtechnik | MUNK Günzburger Steigtechnik | MUNK Günzburger Steigtechnik | MUNK Günzburger Steigtechnik |
| Article no. | 510230 | 510235 | 510240 | 510245 | 510250 | 510255 | 510260 | 510265 | 510270 |
| Price | € 3,696.00 | € 4,067.00 | € 5,461.00 | € 5,582.00 | € 5,962.00 | € 6,080.00 | € 6,201.00 | € 6,390.00 | € 8,016.00 |
| Buy online |
Fixed ladders overview
All fixed ladders / vertical ladders at a glance:
- Single-flight vertical ladders in accordance with DIN 18799-1/-3, DIN 14094-1 and DIN EN ISO 14122-4 (depending on the choice of standard and the situation on site at the exit, additional components such as exit steps, railings and safety doors may be required)
- DIN 18799-1: Stationary multiple-flight vertical ladders on buildings
- DIN 14094-1: Multiple-flight emergency ladder systems (emergency ladders)
- DIN EN ISO 14122-4: Stationary multiple-flight vertical ladders on machinery
Technical changes and price changes reserved. Dimensions and weights are approximate values. Liability for errors and mistakes excluded. Illustrations similar, some illustrations show special equipment. Preview images are representative of a product family and may therefore differ visually from the actual product you are looking for, e.g. in terms of number of steps or material.
