Multiple-flight vertical ladder with back protection (machinery) bright aluminium
€ 4,148.00
RRP without VAT
Specifications
Climbing height
10.92 m
Ladder length incl. exit side-rail
12.12 m
Outer width
520 mm
Depth of side-rails
60 mm
Max. load capacity
150 kg
Intended use
on machinery
Design type
Multiple-flight
Material
Aluminium
Weight
108 kg
Business division
MUNK Günzburger Steigtechnik
Article no.
510231
Price
€ 4,148.00
Information
- Range of application: Access to machinery and mechanical systems.
- Irrespective of the climbing height:
- As a safety railing, back protection is preferable to fall protection (combination is not permitted as the rescue of persons is hindered by the back protection).
- The need for an occupational medical examination for suitability for working at height (e.g. G 41) depends on the risk assessment (e.g. total climbing height, type of safety railing) of the respective vertical ladder systems
- Proof of the load-bearing capacity of the underlying surface must be provided for each construction project by a responsible stability expert
- Barrier (safety door) is always required
- If required by the access situation, vertical ladders with fall protection must be fitted with suitable protective devices (e.g. steel lockable door) to prevent unauthorised use
- For lateral bridging steps, the ladder sections must run at a higher level
- The overlap of the back protection must be at least 2,000 mm for multiple-flight ladders.
- At unsecured exit points, railings attached to both sides of the vertical ladder or led into the exit level are required
- Gap at exit step must not be larger than 60 – 75 mm
- Step-on dimension: Distance from entry level to the first rung 100–400 mm. The top edge of the uppermost rung must be at the same height as the walking surface of the exit point
- The clearances between the vertical ladder system and the railing must not exceed 120 mm
- The connection to the fall protection must be established and released from a secured standing position
- A secured standing position is, for example, a platform with railing and a secured access
- Corporate certification: ISO 9001
- Corporate certification: EN 1090
- Corporate certification: EcoVadis
- RoHS
- REACH
- The MUNK Group complies with a Code of Conduct
- The Supply Chain Act does not apply due to our size
- The materials used are listed in the technical specification
- Resource-saving production: own photovoltaic systems
- Energy-efficient consumption during production: LED lighting
- Repairability, durability and quality: 15-year warranty on series products made in Germany
- Recyclability: Our products are mostly made of aluminium, steel or wood and can be fed directly into the recycling process.
- Socially acceptable working conditions in production: fair wages, gender equality
- Economical and recyclable packaging: no use of polystyrene, predominantly use of wood and cardboard, small amounts of plastic
- No health hazards for the users
Scope of supply

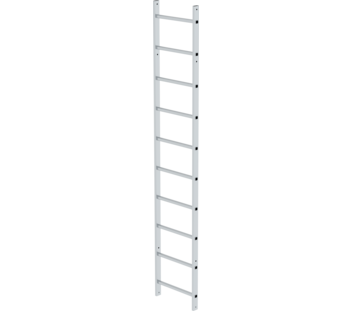

- 062265 - Ladder section bright aluminium: 5 x

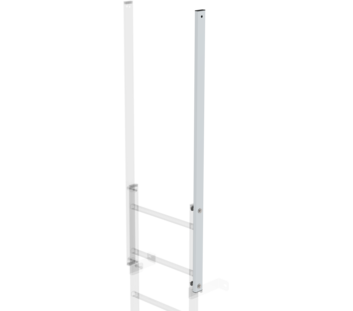

- 062243 - Exit side-rail straight: 2 x
- 063249 - Rigid wall anchor 200 mm, galvanised steel: 18 x

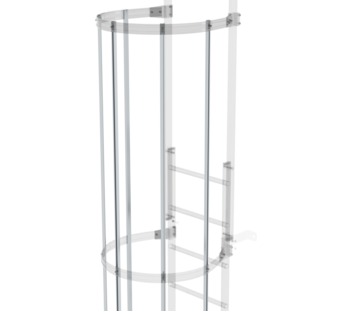

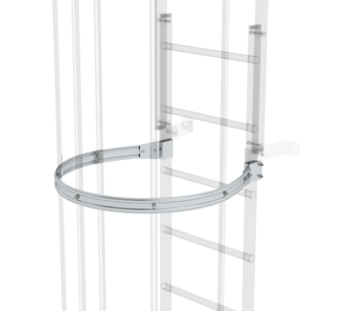

- 062234 - Ø 700 mm back protection hoop: 9 x
- 062235 - Back protection hoop strut, 3,000mm long: 23 x
- 062963 - Back protection hoop offset design: 2 x
- 063961 - Transfer platform between ladder sections, Ø 700 mm: 1 x
- 061236 - Vertical ladder connector 200 mm: 6 x
- 062274 - Safety strut for offset version: 1 x
Safety. Made in Germany.
Comparison table

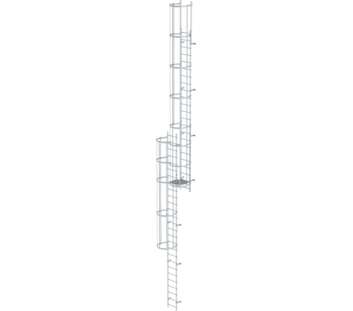

| Product name | Multiple-flight vertical ladder with back protection (machinery) bright aluminium 12.12m | Multiple-flight vertical ladder with back protection (machinery) bright aluminium 12.96m | Multiple-flight vertical ladder with back protection (machinery) bright aluminium 14.36m | Multiple-flight vertical ladder with back protection (machinery) bright aluminium 15.20m | Multiple-flight vertical ladder with back protection (machinery) bright aluminium 16.32m | Multiple-flight vertical ladder with back protection (machinery) bright aluminium 17.16m | Multiple-flight vertical ladder with back protection (machinery) bright aluminium 18.00m | Multiple-flight vertical ladder with back protection (machinery) bright aluminium 18.84m | Multiple-flight vertical ladder with back protection (machinery) bright aluminium 19.96m |
|---|---|---|---|---|---|---|---|---|---|
