Order no.
: 052534

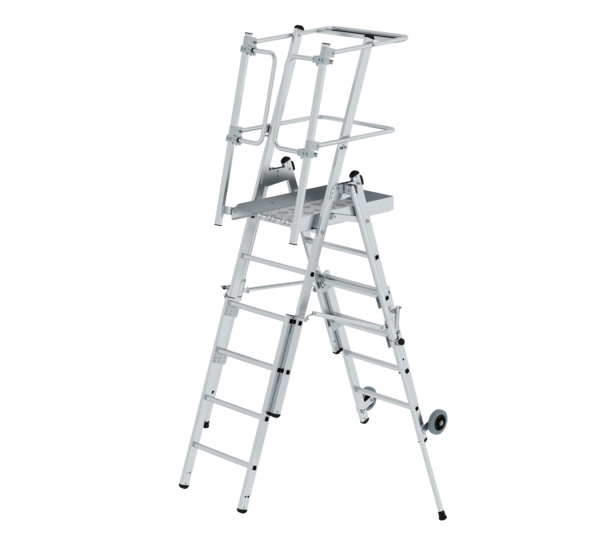

FlexxStep platform ladder 4 rungs with telescopic attachment 2 rungs
€ 1,658.00
RRP without VAT
Specifications
Step design
Rungs
Number of steps/rungs
4 + 2 rungs
Platform included as step
Yes
Platform height
1.58 m
Step/Rung height
30 mm
Step depth
30 mm
Step/Rung distance
280 mm
Inclination
70 °
Outer width
672 mm
Depth of side-rails
58 mm
Width of side-rails
25 mm
Castor diameter
150 mm
Max. load capacity
150 kg
Design type
Free-standing | Single-sided access | With castors | Flexible
Weight
33 kg
Transport dimensions
2420 x 770 x 390 mm, 27 kg
Transport dimensions 2
1145 x 565 x 105 mm, 6 kg
Business division
MUNK Günzburger Steigtechnik
Article no.
052534
Price
€ 1,658.00
Information
- Platform ladder made of aluminium
- Stable rectangular tube side-rails
- Rectangular rungs grooved on both sides, 30 x 30 mm
- Spacious platform made of grooved aluminium chequered plate 480 x 655 mm
- 4-fold edged rung-to-side-rail connection
- With handrail on both sides, 3-sided, 1,000 mm high railing with knee and foot rails

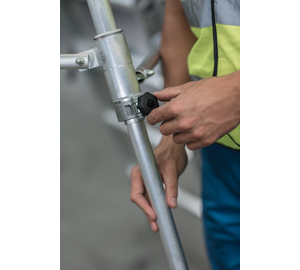

- Infinitely variably adjustable outriggers on both sides

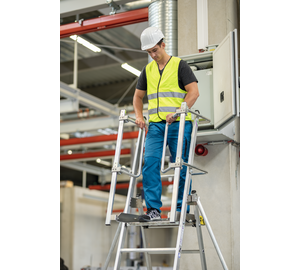

- Automatically closing safety door
- Generous sized tool tray

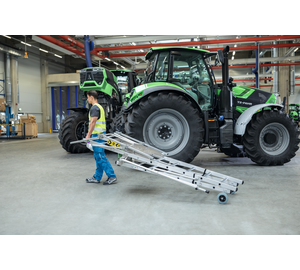

- Integrated Ø 150 mm castors and practical folding mechanism for quickly moving to a new location
- Design compliant DIN EN 131-7 and the French standards NFP 93-352/353
- Height-adjustable and suitable for stairs by means of telescopic outrigger that can be mounted without tools
- Maximum load: 150 kg
- Corporate certification: ISO 9001
- Corporate certification: EN 1090
- Corporate certification: EcoVadis
- RoHS
- REACH
- The MUNK Group complies with a Code of Conduct
- The Supply Chain Act does not apply due to our size
- The materials used are listed in the technical specification
- Resource-saving production: own photovoltaic systems
- Energy-efficient consumption during production: LED lighting
- Repairability, durability and quality: 15-year warranty on series products made in Germany
- Recyclability: Our products are mostly made of aluminium, steel or wood and can be fed directly into the recycling process.
- Socially acceptable working conditions in production: fair wages, gender equality
- Economical and recyclable packaging: no use of polystyrene, predominantly use of wood and cardboard, small amounts of plastic
- No health hazards for the users
Scope of supply
- Ladder: 1 x
- Instructions for use and operation: 1 x
Safety. Made in Germany.
Comparison table
| Product name | FlexxStep platform ladder 4 rungs with telescopic attachment 2 rungs | FlexxStep platform ladder 5 rungs with telescopic attachment 2 rungs | FlexxStep platform ladder 5 rungs with telescopic attachment 3 rungs | FlexxStep platform ladder 6 rungs with telescopic attachment 2 rungs | FlexxStep platform ladder 6 rungs with telescopic attachment 3 rungs |
|---|---|---|---|---|---|
| Step design | Rungs | Rungs | Rungs | Rungs | Rungs |
| Number of steps/rungs | 4 + 2 rungs | 5 + 2 rungs | 5 + 3 rungs | 6 + 2 rungs | 6 + 3 rungs |
| Platform included as step | Yes | Yes | Yes | Yes | Yes |
| Platform height | 1.58 m | 1.84 m | 2.1 m | 2.1 m | 2.37 m |
| Step/Rung height | 30 mm | 30 mm | 30 mm | 30 mm | 30 mm |
| Step depth | 30 mm | 30 mm | 30 mm | 30 mm | 30 mm |
| Step/Rung distance | 280 mm | 280 mm | 280 mm | 280 mm | 280 mm |
| Inclination | 70 ° | 70 ° | 70 ° | 70 ° | 70 ° |
| Outer width | 672 mm | 672 mm | 672 mm | 672 mm | 672 mm |
| Depth of side-rails | 58 mm | 58 mm | 58 mm | 58 mm | 58 mm |
| Width of side-rails | 25 mm | 25 mm | 25 mm | 25 mm | 25 mm |
| Castor diameter | 150 mm | 150 mm | 150 mm | 150 mm | 150 mm |
| Max. load capacity | 150 kg | 150 kg | 150 kg | 150 kg | 150 kg |
| Design type | Free-standing | Single-sided access | With castors | Flexible | Free-standing | Single-sided access | With castors | Flexible | Free-standing | Single-sided access | With castors | Flexible | Free-standing | Single-sided access | With castors | Flexible | Free-standing | Single-sided access | With castors | Flexible |
| Weight | 33 kg | 35 kg | 36.5 kg | 36.5 kg | 38 kg |
| Transport dimensions | 2420 x 770 x 390 mm, 27 kg | 2735 x 760 x 390 mm, 29 kg | 2735 x 760 x 390 mm, 29 kg | 3000 x 785 x 390 mm, 30.5 kg | 3000 x 785 x 390 mm, 30.5 kg |
| Transport dimensions 2 | 1145 x 565 x 105 mm, 6 kg | 1145 x 565 x 105 mm, 6 kg | 1430 x 575 x 105 mm, 7.5 kg | 1145 x 565 x 105 mm, 6 kg | 1430 x 575 x 105 mm, 7.5 kg |
| Business division | MUNK Günzburger Steigtechnik | MUNK Günzburger Steigtechnik | MUNK Günzburger Steigtechnik | MUNK Günzburger Steigtechnik | MUNK Günzburger Steigtechnik |
| Article no. | 052534 | 052535 | 052536 | 052537 | 052538 |
| Price | € 1,658.00 | € 1,765.00 | € 1,795.00 | € 1,828.00 | € 1,858.00 |
| Buy online |
Product video
Technical changes and price changes reserved. Dimensions and weights are approximate values. Liability for errors and mistakes excluded. Illustrations similar, some illustrations show special equipment. Preview images are representative of a product family and may therefore differ visually from the actual product you are looking for, e.g. in terms of number of steps or material.
