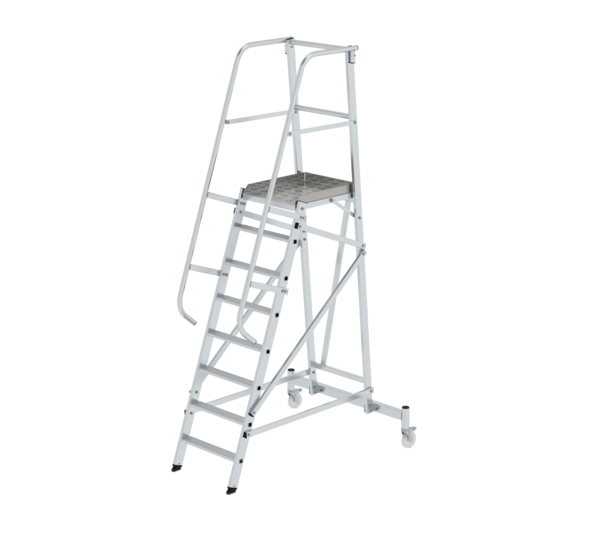

Specifications
Working height
3.85 m
Step design
Steps
Number of steps/rungs
8 steps
Platform included as step
Yes
Platform height
1.85 m
Step width
530 mm
Step depth
80 mm
Step/Rung distance
235 mm
Height
2.87 m
Base spread
1.46 m
Inclination
70 °
Outer width
650 mm
Stabiliser width
1.2 m
Depth of side-rails
73 mm
Depth of side-rails, support
58 mm
Width of side-rails
25 mm
Max. load capacity
150 kg
Design type
Freestanding | Single-sided access | With chassis beam
Weight
46.8 kg
Transport dimensions
2660 x 656 x 275 mm, 48 kg
Business division
MUNK Günzburger Steigtechnik
Article no.
052508
Price
€ 1,734.00
Information
- Platform ladder made of aluminium
- Stable rectangular tube side-rails
- Grooved steps with a depth of 80 mm
- Spacious platform with grooves for secure footing (510 x 600 mm)
- 4-fold edged step-to-side-rail connection
- With handrail on both sides, 3-sided, 1,000 mm high railing with knee and foot rails
- Support part with stabilising stabiliser bar for high stability
- Integrated Ø 125 mm fixed castors with locking device for quickly moving to a new location
- nivello® ladder shoes with patented 2-axis inclination technology
- Easy to assemble (delivered unassembled)
- Outer width: 650 mm (without stabiliser)
- Step spacing: 235 mm
- Ladder inclination: 70°
- Maximum load: 150 kg
- Corporate certification: ISO 9001
- Corporate certification: EN 1090
- Corporate certification: EcoVadis
- RoHS
- REACH
- The MUNK Group complies with a Code of Conduct
- The Supply Chain Act does not apply due to our size
- The materials used are listed in the technical specification
- Resource-saving production: own photovoltaic systems
- Energy-efficient consumption during production: LED lighting
- Repairability, durability and quality: 15-year warranty on series products made in Germany
- Recyclability: Our products are mostly made of aluminium, steel or wood and can be fed directly into the recycling process.
- Socially acceptable working conditions in production: fair wages, gender equality
- Economical and recyclable packaging: no use of polystyrene, predominantly use of wood and cardboard, small amounts of plastic
- No health hazards for the users
Scope of supply
- Ladder: 1 x
- Handrail (enclosed separately): 2 x
- Instructions for use and operation: 1 x
Certificates
Safety. Made in Germany.
Comparison table
| Product name | Platform ladder, mobile 8 steps | Platform ladder, mobile 9 steps | Platform ladder, mobile 11 steps |
|---|---|---|---|
| Working height | 3.85 m | 4.1 m | 4.55 m |
| Step design | Steps | Steps | Steps |
| Number of steps/rungs | 8 steps | 9 steps | 11 steps |
| Platform included as step | Yes | Yes | Yes |
| Platform height | 1.85 m | 2.08 m | 2.55 m |
| Step width | 530 mm | - | - |
| Step depth | 80 mm | 80 mm | 80 mm |
| Step/Rung distance | 235 mm | 235 mm | 235 mm |
| Height | 2.87 m | 3.12 m | 3.57 m |
| Base spread | 1.46 m | 1.57 m | 1.78 m |
| Inclination | 70 ° | 70 ° | 70 ° |
| Outer width | 650 mm | 650 mm | 650 mm |
| Lower outer width | - | - | 1.46 m |
| Stabiliser width | 1.2 m | 1.55 m | 1.9 m |
| Depth of side-rails | 73 mm | 73 mm | 73 mm |
| Depth of side-rails, support | 58 mm | 58 mm | 58 mm |
| Width of side-rails | 25 mm | 25 mm | 25 mm |
| Max. load capacity | 150 kg | 150 kg | 150 kg |
| Design type | Freestanding | Single-sided access | With chassis beam | Freestanding | Single-sided access | With chassis beam | Freestanding | Single-sided access | With chassis beam |
| Weight | 46.8 kg | 48.8 kg | 54.8 kg |
| Transport dimensions | 2660 x 656 x 275 mm, 48 kg | 2930 x 670 x 275 mm, 50 kg | 3375 x 685 x 295 mm, 58.5 kg |
| Business division | MUNK Günzburger Steigtechnik | MUNK Günzburger Steigtechnik | MUNK Günzburger Steigtechnik |
| Article no. | 052508 | 052509 | 052511 |
| Price | € 1,734.00 | € 1,822.00 | € 1,921.00 |
| Buy online |
Technical changes and price changes reserved. Dimensions and weights are approximate values. Liability for errors and mistakes excluded. Illustrations similar, some illustrations show special equipment. Preview images are representative of a product family and may therefore differ visually from the actual product you are looking for, e.g. in terms of number of steps or material.
