Specifications
Working height
2.9 m
Step design
Steps
Number of steps/rungs
4 steps
Platform included as step
Yes
Platform height
900 mm
Step depth
80 mm
Step/Rung distance
235 mm
Height
1.65 m
Base spread
1.16 m
Inclination
70 °
Lower outer width
610 mm
Depth of side-rails
73 mm
Depth of side-rails, support
58 mm
Width of side-rails
25 mm
Castor diameter
125 mm
Max. load capacity
150 kg
Design type
Freestanding | Single-sided access | With castors
Weight
13 kg
Transport dimensions
1751 x 605 x 180 mm, 13 kg
Business division
MUNK Günzburger Steigtechnik
Article no.
051084
Price
€ 600.00
Information

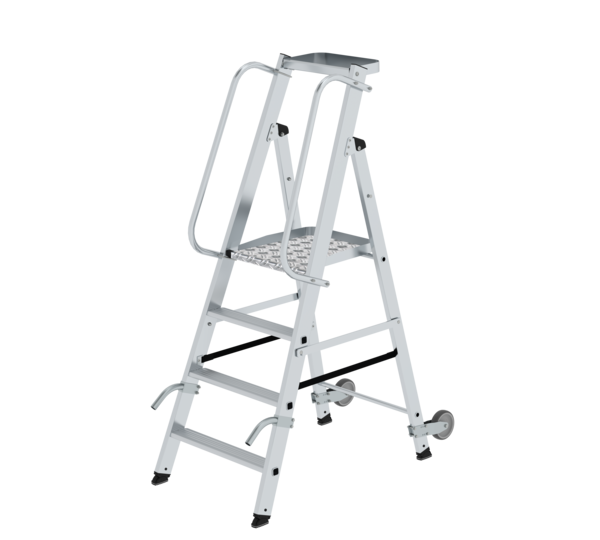

- Platform ladder made of aluminium
- Stable rectangular tube side-rails
- Grooved steps with a depth of 80 mm
- Large, trapeze-shaped platform (400 / 360 x 425 mm)
- 4-fold edged step-to-side-rail connection
- Conical side-rail guide for safe stance
- Two handrails for safe ascent and descent (enclosed separately)
- 'safe-cap' ladder joint
- nivello® ladder shoes with patented 2-axis inclination technology
- Practical storage tray (350 x 200 mm)
- Rigid connection through metal struts detachable on both sides
- Spreader lock with two high-strength polyester straps

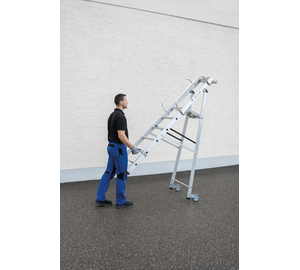

- Two lifting rollers Ø 125 mm and handles (supplied loose)
- Step spacing: 235 mm
- Ladder inclination: 70°
- Maximum load: 150 kg
- Corporate certification: ISO 9001
- Corporate certification: EN 1090
- Corporate certification: EcoVadis
- RoHS
- REACH
- The MUNK Group complies with a Code of Conduct
- The Supply Chain Act does not apply due to our size
- The materials used are listed in the technical specification
- Resource-saving production: own photovoltaic systems
- Energy-efficient consumption during production: LED lighting
- Repairability, durability and quality: 15-year warranty on series products made in Germany
- Recyclability: Our products are mostly made of aluminium, steel or wood and can be fed directly into the recycling process.
- Socially acceptable working conditions in production: fair wages, gender equality
- Economical and recyclable packaging: no use of polystyrene, predominantly use of wood and cardboard, small amounts of plastic
- No health hazards for the users
Scope of supply
- Ladder: 1 x
- Handrail (enclosed separately): 2 x
- Lifting castors: 2 x
- Instructions for use and operation: 1 x
Certificates
Safety. Made in Germany.
Comparison table
| Product name | Platform ladder with castors and handle 4 steps with storage tray | Platform ladder with castors and handle 5 steps with storage tray | Platform ladder with castors and handle 6 steps with storage tray | Platform ladder with castors and handle 7 steps with storage tray | Platform ladder with castors and handle 8 steps with storage tray | Platform ladder with castors and handle 9 steps with storage tray | Platform ladder with castors and handle 10 steps with storage tray |
|---|---|---|---|---|---|---|---|
| Working height | 2.9 m | 3.15 m | 3.4 m | 3.6 m | 3.85 m | 4.1 m | 4.3 m |
| Step design | Steps | Steps | Steps | Steps | Steps | Steps | Steps |
| Number of steps/rungs | 4 steps | 5 steps | 6 steps | 7 steps | 8 steps | 9 steps | 10 steps |
| Platform included as step | Yes | Yes | Yes | Yes | Yes | Yes | Yes |
| Platform height | 900 mm | 1.13 m | 1.37 m | 1.6 m | 1.84 m | 2.07 m | 2.3 m |
| Step depth | 80 mm | 80 mm | 80 mm | 80 mm | 80 mm | 80 mm | 80 mm |
| Step/Rung distance | 235 mm | 235 mm | 235 mm | 235 mm | 235 mm | 235 mm | 235 mm |
| Height | 1.65 m | 1.88 m | 2.12 m | 2.35 m | 2.59 m | 2.82 m | 3.05 m |
| Base spread | 1.16 m | 1.31 m | 1.45 m | 1.6 m | 1.76 m | 1.91 m | 2.06 m |
| Inclination | 70 ° | 70 ° | 70 ° | 70 ° | 70 ° | 70 ° | 70 ° |
| Lower outer width | 610 mm | 640 mm | 660 mm | 690 mm | 720 mm | 750 mm | 780 mm |
| Depth of side-rails | 73 mm | 73 mm | 73 mm | 73 mm | 73 mm | 73 mm | 73 mm |
| Depth of side-rails, support | 58 mm | 58 mm | 58 mm | 58 mm | 58 mm | 58 mm | 58 mm |
| Width of side-rails | 25 mm | 25 mm | 25 mm | 25 mm | 25 mm | 25 mm | 25 mm |
| Castor diameter | 125 mm | 125 mm | 125 mm | 125 mm | 125 mm | 125 mm | 125 mm |
| Max. load capacity | 150 kg | 150 kg | 150 kg | 150 kg | 150 kg | 150 kg | 150 kg |
| Design type | Freestanding | Single-sided access | With castors | Freestanding | Single-sided access | With castors | Freestanding | Single-sided access | With castors | Freestanding | Single-sided access | With castors | Freestanding | Single-sided access | With castors | Freestanding | Single-sided access | With castors | Freestanding | Single-sided access | With castors |
| Weight | 13 kg | 13.98 kg | 15 kg | 17 kg | 19 kg | 20.5 kg | 22 kg |
| Transport dimensions | 1751 x 605 x 180 mm, 13 kg | 2005 x 635 x 158 mm, 13.98 kg | 2000 x 667 x 160 mm, 15 kg | 2508 x 690 x 175 mm, 17 kg | 2755 x 720 x 175 mm, 19 kg | 3001 x 750 x 185 mm, 20.5 kg | 3250 x 778 x 182 mm, 22 kg |
| Business division | MUNK Günzburger Steigtechnik | MUNK Günzburger Steigtechnik | MUNK Günzburger Steigtechnik | MUNK Günzburger Steigtechnik | MUNK Günzburger Steigtechnik | MUNK Günzburger Steigtechnik | MUNK Günzburger Steigtechnik |
| Article no. | 051084 | 051085 | 051086 | 051087 | 051088 | 051089 | 051090 |
| Price | € 600.00 | € 649.00 | € 707.00 | € 765.00 | € 785.00 | € 852.00 | € 906.00 |
| Buy online |
Technical changes and price changes reserved. Dimensions and weights are approximate values. Liability for errors and mistakes excluded. Illustrations similar, some illustrations show special equipment. Preview images are representative of a product family and may therefore differ visually from the actual product you are looking for, e.g. in terms of number of steps or material.
