Order no.
: 019236

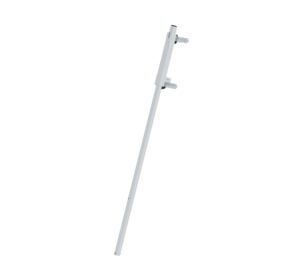

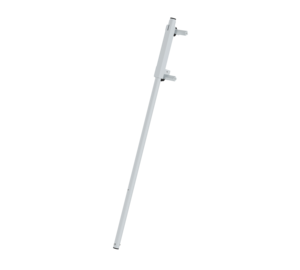

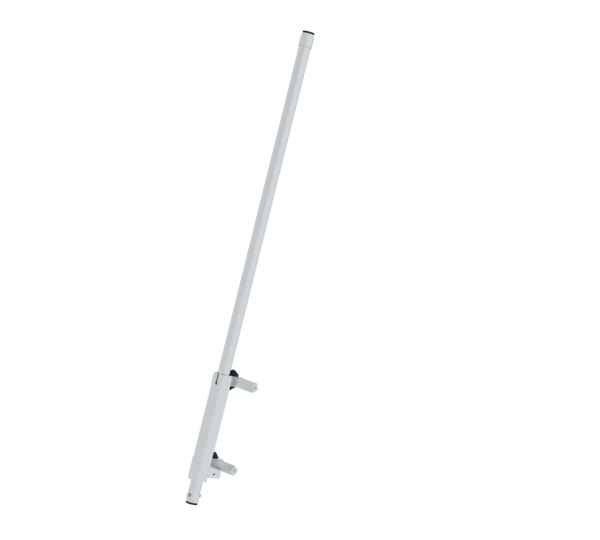

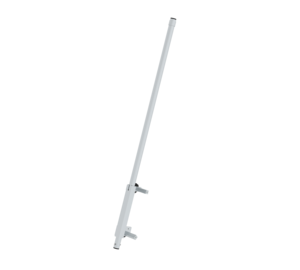

Push-fit, retractable exit side-rail
€ 166.00
RRP without VAT
Specifications
Product type
Accessories
Length
1.4 m
Width
118 mm
Diameter
35 mm
Material
Aluminium
Weight
1.91 kg
Transport dimensions
1400 x 130 x 60 mm, 1.91 kg
Business division
MUNK Günzburger Steigtechnik
Article no.
019236
Price
€ 166.00
Information
- Retractable handrail made of aluminium tube Ø 35 mm
- For vertical extension of the ladder for a safe bridging step
- Suitable for all ladders with rung spacing of 280 mm and step spacing of 235 mm or 263 mm

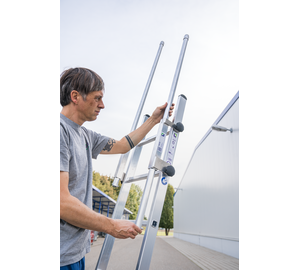

- For tool-free installation via ergonomic star handle
- Fastening via clamping mechanism in the uppermost rung/step holes
- Available as a variant for mounting on the left or right
- Corporate certification: ISO 9001
- Corporate certification: EN 1090
- Corporate certification: EcoVadis
- RoHS
- REACH
- The MUNK Group complies with a Code of Conduct
- The Supply Chain Act does not apply due to our size
- The materials used are listed in the technical specification
- Resource-saving production: own photovoltaic systems
- Energy-efficient consumption during production: LED lighting
- Repairability, durability and quality: 15-year warranty on series products made in Germany
- Recyclability: Our products are mostly made of aluminium, steel or wood and can be fed directly into the recycling process.
- Socially acceptable working conditions in production: fair wages, gender equality
- Economical and recyclable packaging: no use of polystyrene, predominantly use of wood and cardboard, small amounts of plastic
- No health hazards for the users
Scope of supply
- Exit rail: 1 x
Comparison table
| Product name | Push-fit, retractable exit side-rail left | Push-fit, retractable exit side-rail right |
|---|---|---|
| Product type | Accessories | Accessories |
| Length | 1.4 m | 1.4 m |
| Width | 118 mm | 118 mm |
| Diameter | 35 mm | 35 mm |
| Material | Aluminium | Aluminium |
| Weight | 1.91 kg | 1.91 kg |
| Transport dimensions | 1400 x 130 x 60 mm, 1.91 kg | 1400 x 130 x 60 mm, 1.91 kg |
| Business division | MUNK Günzburger Steigtechnik | MUNK Günzburger Steigtechnik |
| Article no. | 019236 | 019235 |
| Price | € 166.00 | € 166.00 |
| Buy online |
Technical changes and price changes reserved. Dimensions and weights are approximate values. Liability for errors and mistakes excluded. Illustrations similar, some illustrations show special equipment. Preview images are representative of a product family and may therefore differ visually from the actual product you are looking for, e.g. in terms of number of steps or material.
