Order no.
: 116050

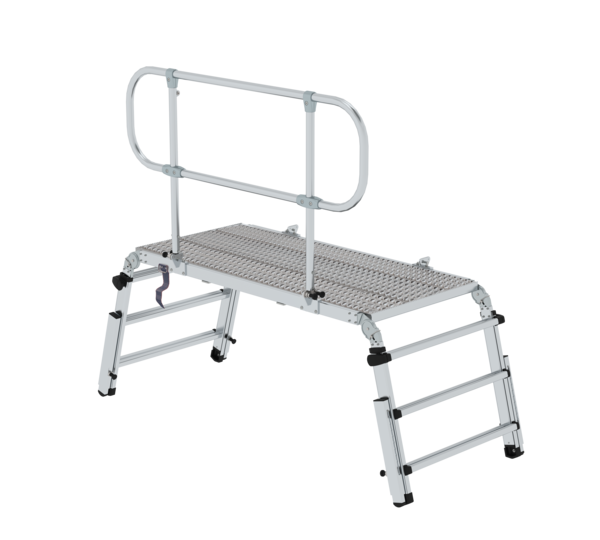

Rescue and working platform Premium
Price on demand
Specifications
Platform height min.
880 mm
Platform height max.
1.68 m
Platform length
1.72 m
Platform width
830 mm
Railing height
1 m
Surface
Aluminium heavily corrugated
Non-slip class
R13
Outer width
929 mm
Clear width
2.29 m
Compensation of floor unevenness
250 mm
Step/Rung height
28 mm
Step depth
29 mm
Number of steps/rungs
2x
3 rungs
Max. load capacity
500 kg
Material
Aluminium
Weight
49 kg
Transport dimensions
1800 x 1045 x 277 mm, 49 kg
Business division
MUNK Rettungstechnik
Article no.
116050
Information
- Rescue platform compliant with DIN 14830

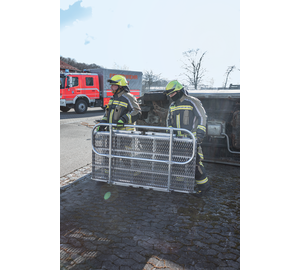

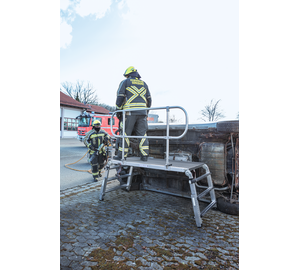

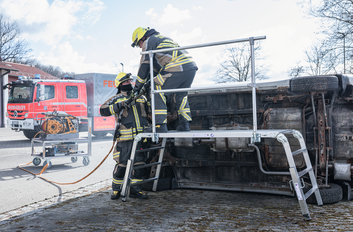

- For rescuing injured persons from trucks, buses and trains
- Can also be used as a working platform
- Sturdy structure made of aluminium
- Platform with non-slip coating (R 13)
- Non-slip and ribbed rungs

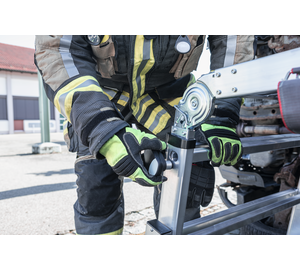

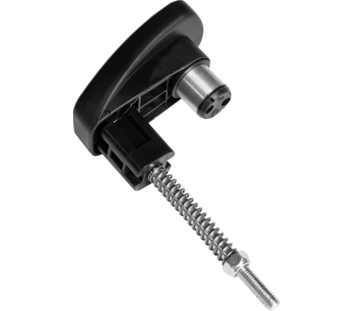

- Adjustable platform height using ergonomically shaped handles
- Sturdy locking bolts for secure locking in a grid of 265 mm

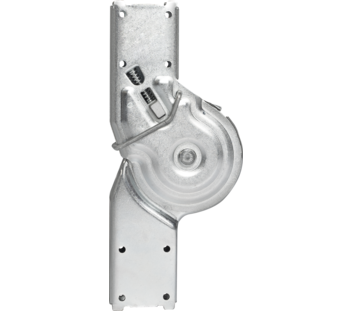

- Folding access ladders on both sides with self-locking steel hinges
- All four side-rails with side-rail extensions as standard (height compensation of max. 250 mm, locking in 30 mm increments)

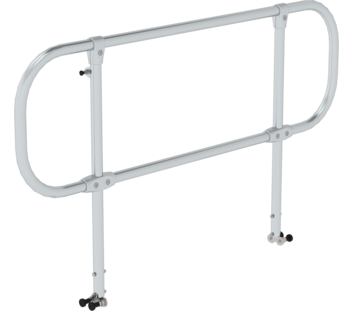

- Folding railing can be used on the left or right

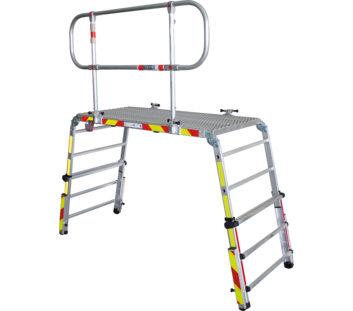

- Long luminescent markings for better visibility in the dark
- Platform size: 1,720 x 830 mm
- Permissible load: 500 kg
- Corporate certification: ISO 9001
- Corporate certification: EN 1090
- Corporate certification: EcoVadis
- RoHS
- REACH
- The MUNK Group complies with a Code of Conduct
- The Supply Chain Act does not apply due to our size
- The materials used are listed in the technical specification
- Resource-saving production: own photovoltaic systems
- Energy-efficient consumption during production: LED lighting
- Repairability, durability and quality: 15-year warranty on series products made in Germany
- Recyclability: Our products are mostly made of aluminium, steel or wood and can be fed directly into the recycling process.
- Socially acceptable working conditions in production: fair wages, gender equality
- Economical and recyclable packaging: no use of polystyrene, predominantly use of wood and cardboard, small amounts of plastic
- No health hazards for the users
Product video
Technical changes and price changes reserved. Dimensions and weights are approximate values. Liability for errors and mistakes excluded. Illustrations similar, some illustrations show special equipment. Preview images are representative of a product family and may therefore differ visually from the actual product you are looking for, e.g. in terms of number of steps or material.
