Order no.
: 033120

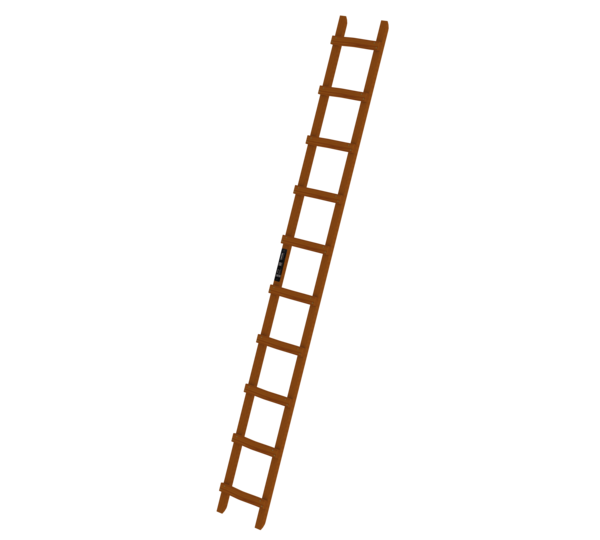

Roof ladder wood
€ 219.00
RRP without VAT
Specifications
Ladder length
2.8 m
Number of steps/rungs
10 rungs
Step/Rung distance
280 mm
Outer width
350 mm
Depth of side-rails
29 mm
Design type
To hang up
Weight
6.5 kg
Transport dimensions
2800 x 350 x 65 mm, 6.5 kg
Business division
MUNK Günzburger Steigtechnik
Article no.
033120
Price
€ 219.00
Information
- For installation on roof pitches from 22.5° to 75° and for load distribution during roofing work according to standard DIN 4567-4
- Caroline pine or finger-jointed pine side-rails with bevelled ends for easy handling
- Side-rails with strong, upwardly curved rungs; waterproof glued, weatherproof glazed and screwed 4 times per rung
- Ladder width: 350 mm
- Rung distance: 280 mm
- Note: In accordance with German Social Accident Insurance (DGUV) information sheet 201-054, roof ladders must be suspended in safety roof hooks as per DIN EN 517 (not in the top rung). Use as a straight ladder is not permitted
- Corporate certification: ISO 9001
- Corporate certification: EN 1090
- Corporate certification: EcoVadis
- RoHS
- REACH
- The MUNK Group complies with a Code of Conduct
- The Supply Chain Act does not apply due to our size
- The materials used are listed in the technical specification
- Resource-saving production: own photovoltaic systems
- Energy-efficient consumption during production: LED lighting
- Repairability, durability and quality: 15-year warranty on series products made in Germany
- Recyclability: Our products are mostly made of aluminium, steel or wood and can be fed directly into the recycling process.
- Socially acceptable working conditions in production: fair wages, gender equality
- Economical and recyclable packaging: no use of polystyrene, predominantly use of wood and cardboard, small amounts of plastic
- No health hazards for the users
Scope of supply
- Ladder: 1 x
- Instructions for use and operation: 1 x
Safety. Made in Germany.
Comparison table
| Product name | Roof ladder wood 10 rungs | Roof ladder wood 12 rungs | Roof ladder wood 14 rungs | Roof ladder wood 16 rungs | Roof ladder wood 18 rungs |
|---|---|---|---|---|---|
| Ladder length | 2.8 m | 3.36 m | 3.92 m | 4.48 m | 5 m |
| Number of steps/rungs | 10 rungs | 12 rungs | 14 rungs | 16 rungs | 18 rungs |
| Step/Rung distance | 280 mm | 280 mm | 280 mm | 280 mm | 280 mm |
| Outer width | 350 mm | 350 mm | 350 mm | 350 mm | 350 mm |
| Depth of side-rails | 29 mm | 29 mm | 29 mm | 29 mm | 29 mm |
| Design type | To hang up | To hang up | To hang up | To hang up | To hang up |
| Weight | 6.5 kg | 8 kg | 9.5 kg | 10.44 kg | 12 kg |
| Transport dimensions | 2800 x 350 x 65 mm, 6.5 kg | 3360 x 350 x 65 mm, 8 kg | 3920 x 350 x 65 mm, 9.5 kg | 4480 x 350 x 65 mm, 10.44 kg | 5040 x 350 x 65 mm, 12 kg |
| Business division | MUNK Günzburger Steigtechnik | MUNK Günzburger Steigtechnik | MUNK Günzburger Steigtechnik | MUNK Günzburger Steigtechnik | MUNK Günzburger Steigtechnik |
| Article no. | 033120 | 033121 | 033122 | 033123 | 033124 |
| Price | € 219.00 | € 268.00 | € 313.00 | € 359.00 | € 410.00 |
| Buy online |
Technical changes and price changes reserved. Dimensions and weights are approximate values. Liability for errors and mistakes excluded. Illustrations similar, some illustrations show special equipment. Preview images are representative of a product family and may therefore differ visually from the actual product you are looking for, e.g. in terms of number of steps or material.
