Order no.
: 063183

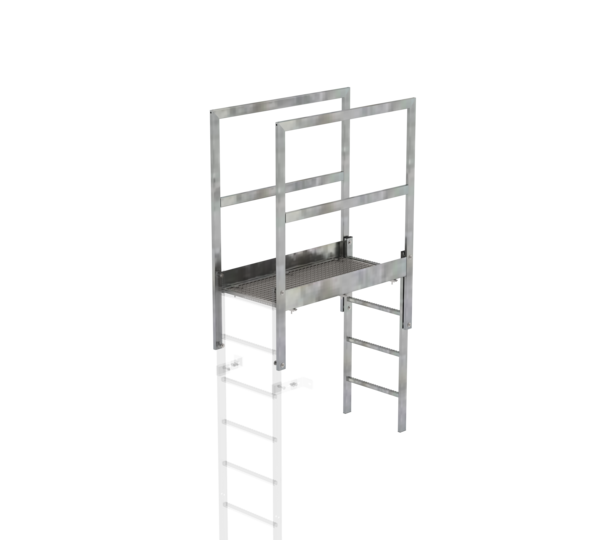

Roof parapet bridge galvanised steel special length
€ 1,689.00
RRP without VAT
Specifications
Length
1.2 m
Step width
470 mm
Step/Rung height
29 mm
Step depth
30 mm
Step/Rung distance
280 mm
Number of steps/rungs
4 rungs
Ladder length
1.22 m
Ladder length incl. exit side-rail
2.21 m
Entry/Exit
Roof parapet bridge
Non-slip class
R10
Material
Galvanised steel
Passage width
536 mm
Clear length
1.08 m
Weight
53 kg
Business division
MUNK Günzburger Steigtechnik
Article no.
063183
Price
€ 1,689.00
Information
- With grating
- Passage width 536 mm, special widths on request
- Recommendation for the bottom end at the exit point: Adjustable wall anchors or foot plates
- Descent ladder: Length 1,220 mm, Length to be cut to size by client
- Longer delivery times thanks to order-related production
- Corporate certification: ISO 9001
- Corporate certification: EN 1090
- Corporate certification: EcoVadis
- RoHS
- REACH
- The MUNK Group complies with a Code of Conduct
- The Supply Chain Act does not apply due to our size
- The materials used are listed in the technical specification
- Resource-saving production: own photovoltaic systems
- Energy-efficient consumption during production: LED lighting
- Repairability, durability and quality: 15-year warranty on series products made in Germany
- Recyclability: Our products are mostly made of aluminium, steel or wood and can be fed directly into the recycling process.
- Socially acceptable working conditions in production: fair wages, gender equality
- Economical and recyclable packaging: no use of polystyrene, predominantly use of wood and cardboard, small amounts of plastic
- No health hazards for the users
Scope of supply
- Grating: 1 x
- Garde-corps: 2 x
- Descent ladder: 1 x
- Assembly kit: 1 x
- Assembly instructions: 1 x
Safety. Made in Germany.
Comparison table
| Product name | Roof parapet bridge galvanised steel special length 1080 mm clear length | Roof parapet bridge galvanised steel special length 1880 mm clear length | Roof parapet bridge galvanised steel special length 1280 mm clear length | Roof parapet bridge galvanised steel special length 1480 mm clear length |
|---|---|---|---|---|
| Length | 1.2 m | 2 m | 1.4 m | 1.6 m |
| Step width | 470 mm | 470 mm | - | - |
| Step/Rung height | 29 mm | 29 mm | - | - |
| Step depth | 30 mm | 30 mm | - | - |
| Step/Rung distance | 280 mm | 280 mm | - | - |
| Number of steps/rungs | 4 rungs | 4 | - | - |
| Ladder length | 1.22 m | 1.22 m | 1.22 m | 1.22 m |
| Ladder length incl. exit side-rail | 2.21 m | 2.21 m | 2.21 m | 2.21 m |
| Entry/Exit | Roof parapet bridge | Roof parapet bridge | Roof parapet bridge | Roof parapet bridge |
| Non-slip class | R10 | R10 | R10 | R10 |
| Material | Galvanised steel | Galvanised steel | Galvanised steel | Galvanised steel |
| Passage width | 536 mm | 536 mm | 536 mm | 536 mm |
| Clear length | 1.08 m | 1.88 m | 1.28 m | 1.48 m |
| Weight | 53 kg | 81.7 kg | 56 kg | 59 kg |
| Transport dimensions | 2220 x 1400 x 590 mm, 62.8 kg | 2220 x 1600 x 590 mm, 59.8 kg | - | - |
| Business division | MUNK Günzburger Steigtechnik | MUNK Günzburger Steigtechnik | MUNK Günzburger Steigtechnik | MUNK Günzburger Steigtechnik |
| Article no. | 063183 | 063187 | 063184 | 063185 |
| Price | € 1,689.00 | € 2,900.00 | € 1,748.00 | € 1,837.00 |
| Buy online |
Fixed ladders overview
All fixed ladders / vertical ladders at a glance:
- Single-flight vertical ladders in accordance with DIN 18799-1/-3, DIN 14094-1 and DIN EN ISO 14122-4 (depending on the choice of standard and the situation on site at the exit, additional components such as exit steps, railings and safety doors may be required)
- DIN 18799-1: Stationary multiple-flight vertical ladders on buildings
- DIN 14094-1: Multiple-flight emergency ladder systems (emergency ladders)
- DIN EN ISO 14122-4: Stationary multiple-flight vertical ladders on machinery
