Order no.
: 068507

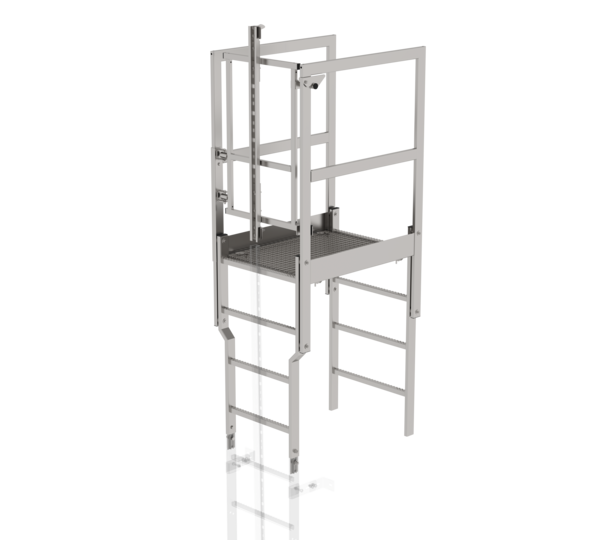

Roof parapet bridge with safety door and fall protection rail
€ 3,779.00
RRP without VAT
Specifications
Material
Stainless steel
Weight
11.48 kg
Business division
MUNK Günzburger Steigtechnik
Article no.
068507
Price
€ 3,779.00
Information
- With grating
- Passage width 536 mm, special widths on request
- Recommendation for the bottom end at the exit point: Adjustable wall anchors or foot plates
- Descent ladder: Length 1,220 mm, Length to be cut to size by client
- Automatically closes thanks to concealed spring mechanism
- For mounting on steel / stainless steel vertical ladders only
- With pre-assembled fall protection rail, incl. upper and lower detachable end protection
- Corporate certification: ISO 9001
- Corporate certification: EN 1090
- Corporate certification: EcoVadis
- RoHS
- REACH
- The MUNK Group complies with a Code of Conduct
- The Supply Chain Act does not apply due to our size
- The materials used are listed in the technical specification
- Resource-saving production: own photovoltaic systems
- Energy-efficient consumption during production: LED lighting
- Repairability, durability and quality: 15-year warranty on series products made in Germany
- Recyclability: Our products are mostly made of aluminium, steel or wood and can be fed directly into the recycling process.
- Socially acceptable working conditions in production: fair wages, gender equality
- Economical and recyclable packaging: no use of polystyrene, predominantly use of wood and cardboard, small amounts of plastic
- No health hazards for the users
Scope of supply
- Grating: 1 x
- Garde-corps: 2 x
- Descent ladder: 1 x
- Safety door with fall protection rail: 1 x
- Rail barrier, detachable: 1 x
- Assembly kit: 1 x
- Assembly instructions: 1 x
Safety. Made in Germany.
Comparison table

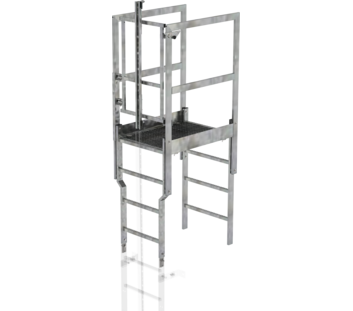

| Product name | Roof parapet bridge with safety door and fall protection rail Stainless steel V2A | Roof parapet bridge with safety door and fall protection rail Galvanised steel |
|---|---|---|
| Material | Stainless steel | Galvanised steel |
| Weight | 11.48 kg | 43 kg |
| Transport dimensions | 1500 x 923 x 330 mm, 43 kg | - |
| Business division | MUNK Günzburger Steigtechnik | MUNK Günzburger Steigtechnik |
| Article no. | 068507 | 063507 |
| Price | € 3,779.00 | € 1,775.00 |
| Buy online |
Fixed ladders overview
All fixed ladders / vertical ladders at a glance:
- Single-flight vertical ladders in accordance with DIN 18799-1/-3, DIN 14094-1 and DIN EN ISO 14122-4 (depending on the choice of standard and the situation on site at the exit, additional components such as exit steps, railings and safety doors may be required)
- DIN 18799-1: Stationary multiple-flight vertical ladders on buildings
- DIN 14094-1: Multiple-flight emergency ladder systems (emergency ladders)
- DIN EN ISO 14122-4: Stationary multiple-flight vertical ladders on machinery
Technical changes and price changes reserved. Dimensions and weights are approximate values. Liability for errors and mistakes excluded. Illustrations similar, some illustrations show special equipment. Preview images are representative of a product family and may therefore differ visually from the actual product you are looking for, e.g. in terms of number of steps or material.
