Specifications
Ladder length
1.85 m
Number of steps/rungs
6 rungs
Outer width
350 mm
Depth of side-rails
58 mm
Max. load capacity
200 kg
Weight
9 kg
Transport dimensions
2130 x 470 x 415 mm, 9 kg
Business division
MUNK Günzburger Steigtechnik
Order no.
116006
Price
€ 671.00
Information
- Stable rectangular tube side-rails
- Rectangular rungs grooved on both sides, 30 x 30 mm
- 4-fold edged rung-to-side-rail connection
- Hanging hook, Ø 320 mm, made of galvanised steel and chains with snap hook for maximum stability
- Non-slip ladder shoes
- Rung distance: 280 mm
- Load hanging vertically: 200 kg (higher loads on request)
- Corporate certification: ISO 9001
- Corporate certification: ISO 14001
- Corporate certification: EN 1090
- Corporate certification: EcoVadis
- RoHS
- REACH
- The MUNK Group complies with a Code of Conduct
- The Supply Chain Act does not apply due to our size
- The materials used are listed in the technical specification
- Resource-saving production: own photovoltaic systems
- Energy-efficient consumption during production: LED lighting
- Repairability, durability and quality: 15-year warranty on series products made in Germany
- Recyclability: Our products are mostly made of aluminium, steel or wood and can be fed directly into the recycling process.
- Socially acceptable working conditions in production: fair wages, gender equality
- Economical and recyclable packaging: no use of polystyrene, predominantly use of wood and cardboard, small amounts of plastic
- No health hazards for the users
Scope of supply
- Ladder: 1 x
- Instructions for use and operation: 1 x
Certificates
Safety. Made in Germany.
Comparison table

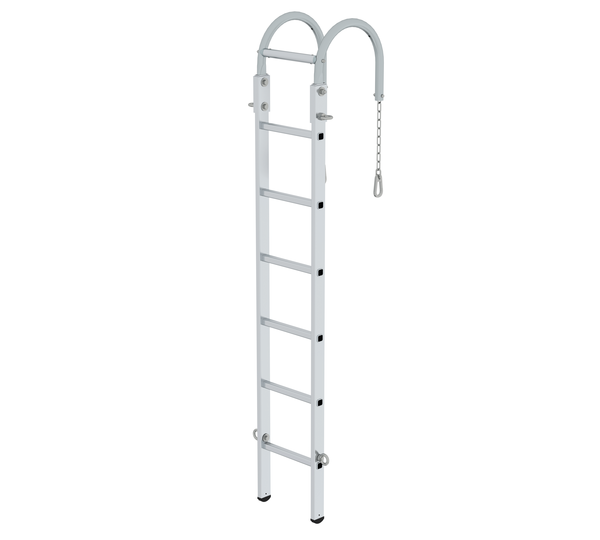

| Product name | Rung mast hanging ladder 2.14 m 6 rungs | Rung mast hanging ladder 2.70 m 8 rungs | Rung mast hanging ladder 3.26 m 10 rungs | Rung mast hanging ladder 3.82 m 12 rungs | Rung mast hanging ladder 4.38 m 14 rungs | Rung mast hanging ladder 4.94 m 16 rungs | Rung mast hanging ladder 6.06 m 20 rungs |
|---|---|---|---|---|---|---|---|
| Ladder length | 1.85 m | 2.41 m | 2.97 m | 3.53 m | 4.09 m | 4.65 m | 5.77 m |
| Number of steps/rungs | 6 rungs | 8 rungs | 10 rungs | 12 rungs | 14 rungs | 16 rungs | 20 rungs |
| Outer width | 350 mm | 350 mm | 350 mm | 350 mm | 350 mm | 350 mm | 350 mm |
| Depth of side-rails | 58 mm | 58 mm | 58 mm | 58 mm | 58 mm | 73 mm | 84 mm |
| Max. load capacity | 200 kg | 200 kg | 200 kg | 200 kg | 200 kg | 200 kg | 200 kg |
| Weight | 9 kg | 9.9 kg | 10.8 kg | 11.7 kg | 12.5 kg | 16.3 kg | 19.8 kg |
| Transport dimensions | 2130 x 470 x 415 mm, 9 kg | 2670 x 470 x 415 mm, 9.5 kg | 3234 x 470 x 415 mm, 11 kg | 3800 x 470 x 415 mm, 11.5 kg | 4350 x 470 x 415 mm, 12.5 kg | 4915 x 470 x 430 mm, 16.3 kg | 6009.5 x 470 x 445 mm, 19.8 kg |
| Business division | MUNK Günzburger Steigtechnik | MUNK Günzburger Steigtechnik | MUNK Günzburger Steigtechnik | MUNK Günzburger Steigtechnik | MUNK Günzburger Steigtechnik | MUNK Günzburger Steigtechnik | MUNK Günzburger Steigtechnik |
| Order no. | 116006 | 116008 | 116010 | 116012 | 116014 | 116016 | 116020 |
| Price | € 671.00 | € 717.00 | € 764.00 | € 815.00 | € 869.00 | € 915.00 | € 1,013.00 |
Technical changes and price changes reserved. Dimensions and weights are approximate values. Liability for errors and mistakes excluded. Illustrations similar, some illustrations show special equipment. Preview images are representative of a product family and may therefore differ visually from the actual product you are looking for, e.g. in terms of number of steps or material.
