Order no.
: 011609

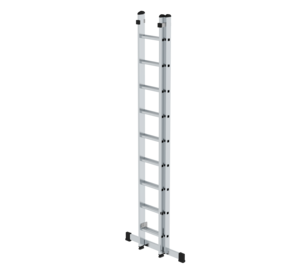

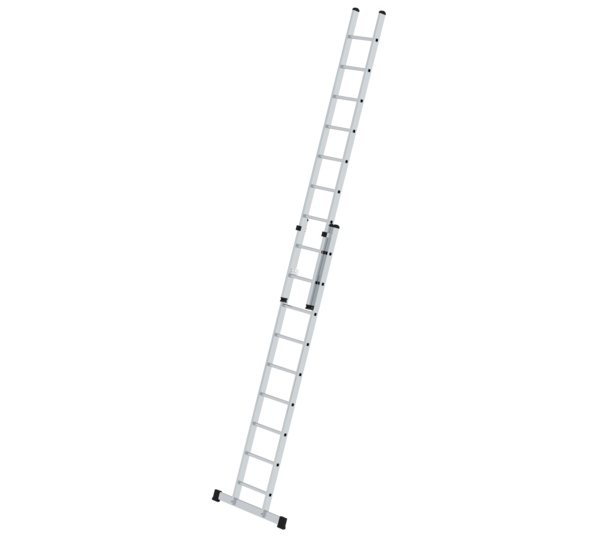

Rung push-up extension ladder with standard stabiliser
€ 308.00
RRP without VAT
Specifications
Working height
5.7 m
Step design
Rungs
Number of steps/rungs
2x
9 rungs
Step/Rung height
30 mm
Step depth
30 mm
Step/Rung distance
280 mm
Retracted length
2.8 m
Extended length
4.6 m
Outer width
420 mm
Stabiliser width
930 mm
Depth of side-rails
73 mm
Width of side-rails
25 mm
Design type
To lean against | 2-part
Weight
12.5 kg
Transport dimensions
2750 x 425 x 150 mm, 12.5 kg
Business division
MUNK Günzburger Steigtechnik
Article no.
011609
Price
€ 308.00
Information
- Rung push-up extension ladder made of aluminium
- Stable rectangular tube side-rails
- Rectangular rungs grooved on both sides, 30 x 30 mm
- 4-fold edged rung-to-side-rail connection
- Simple height adjustment from rung to rung thanks to insertion hook with automatically engaging lift-off protection
- Upper ladder from size 2x14 rungs with wall castors
- Corrosion-resistant guide fixtures
- Upper ladders up to 3.0 m with nivello® ladder shoes
- Rung distance: 280 mm
- Ladder width: 420 mm (without stabiliser)
- Maximum load: 150 kg
- Standard stabiliser with non-slip ladder shoes with optimum width for the selected product. Ensures maximum stability and safe ascent for straight ladders over 3.0 m. The stabiliser is enclosed separately and is screwed to the lower end of the rail in two places
- Note: In accordance with standards, the attached push-up extension ladder section cannot be separated from the ladder with lengths over 3.0 m
- Corporate certification: ISO 9001
- Corporate certification: EN 1090
- Corporate certification: EcoVadis
- RoHS
- REACH
- The MUNK Group complies with a Code of Conduct
- The Supply Chain Act does not apply due to our size
- The materials used are listed in the technical specification
- Resource-saving production: own photovoltaic systems
- Energy-efficient consumption during production: LED lighting
- Repairability, durability and quality: 15-year warranty on series products made in Germany
- Recyclability: Our products are mostly made of aluminium, steel or wood and can be fed directly into the recycling process.
- Socially acceptable working conditions in production: fair wages, gender equality
- Economical and recyclable packaging: no use of polystyrene, predominantly use of wood and cardboard, small amounts of plastic
- No health hazards for the users
Scope of supply
- Ladder: 1 x
- Stabiliser (enclosed separately): 1 x
- Instructions for use and operation: 1 x
Certificates
Safety. Made in Germany.
Comparison table
| Product name | Rung push-up extension ladder with standard stabiliser 2x9 rungs | Rung push-up extension ladder with standard stabiliser 2x11 rungs | Rung push-up extension ladder with standard stabiliser 2x13 rungs | Rung push-up extension ladder with standard stabiliser 2x15 rungs | Rung push-up extension ladder with standard stabiliser 2x17 rungs |
|---|---|---|---|---|---|
| Working height | 5.7 m | 6.6 m | 7.7 m | 8.8 m | 10 m |
| Step design | Rungs | Rungs | Rungs | Rungs | Rungs |
| Number of steps/rungs | 2x9 rungs | 2x11 rungs | 2x13 rungs | 2x15 rungs | 2x17 rungs |
| Step/Rung height | 30 mm | 30 mm | 30 mm | 30 mm | 30 mm |
| Step depth | 30 mm | 30 mm | 30 mm | 30 mm | 30 mm |
| Step/Rung distance | 280 mm | 280 mm | 280 mm | 280 mm | 280 mm |
| Retracted length | 2.8 m | 3.3 m | 3.8 m | 4.4 m | 4.9 m |
| Extended length | 4.6 m | 5.5 m | 6.6 m | 7.7 m | 8.9 m |
| Outer width | 420 mm | 420 mm | 420 mm | 420 mm | 420 mm |
| Stabiliser width | 930 mm | 930 mm | 1.2 m | 1.2 m | 1.2 m |
| Depth of side-rails | 73 mm | 73 mm | 73 mm | 85 mm | 85 mm |
| Width of side-rails | 25 mm | 25 mm | 25 mm | 25 mm | 25 mm |
| Design type | To lean against | 2-part | To lean against | 2-part | To lean against | 2-part | To lean against | 2-part | To lean against | 2-part |
| Weight | 12.5 kg | 15 kg | 17 kg | 24 kg | 25.5 kg |
| Transport dimensions | 2750 x 425 x 150 mm, 12.5 kg | 3307 x 425 x 150 mm, 15 kg | 3868 x 425 x 140 mm, 17 kg | 4430 x 425 x 160 mm, 24 kg | 4989 x 425 x 160 mm, 25.5 kg |
| Business division | MUNK Günzburger Steigtechnik | MUNK Günzburger Steigtechnik | MUNK Günzburger Steigtechnik | MUNK Günzburger Steigtechnik | MUNK Günzburger Steigtechnik |
| Article no. | 011609 | 011611 | 011613 | 011615 | 011617 |
| Price | € 308.00 | € 361.00 | € 404.00 | € 541.00 | € 621.00 |
| Buy online |
Technical changes and price changes reserved. Dimensions and weights are approximate values. Liability for errors and mistakes excluded. Illustrations similar, some illustrations show special equipment. Preview images are representative of a product family and may therefore differ visually from the actual product you are looking for, e.g. in terms of number of steps or material.
