Order no.
: 011173

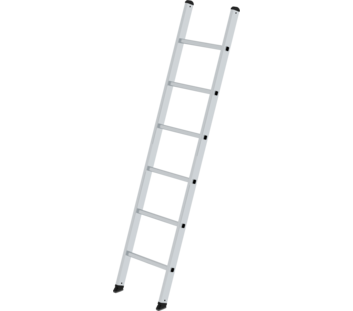

Rung straight ladder 350 mm wide without stabiliser
€ 85.00
RRP without VAT
Specifications
Working height
3 m
Step design
Rungs
Number of steps/rungs
6 rungs
Step/Rung height
30 mm
Step depth
30 mm
Step/Rung distance
280 mm
Type of non-slip protection
Aluminium corrugated
Ladder length
1.9 m
Inclination
70 °
Outer width
350 mm
Depth of side-rails
58 mm
Width of side-rails
24.5 mm
Max. load capacity
150 kg
Design type
To lean against
Weight
3 kg
Transport dimensions
1913 x 355 x 69 mm, 3 kg
Business division
MUNK Günzburger Steigtechnik
Article no.
011173
Price
€ 85.00
Information
- Aluminium rung straight ladder
- Stable rectangular tube side-rails
- Rectangular rungs grooved on both sides, 30 x 30 mm
- 4-fold edged rung-to-side-rail connection
- Rung distance: 280 mm
- Ladder width: 350 mm
- nivello® ladder shoes with patented 2-axis inclination technology
- Maximum load: 150 kg
- Note: Straight ladders over 3.0 m can be used without a stabiliser only when they are used exclusively for their intended purpose (e.g. permanently installed, fitted with hooks, fastened with a belt)
- Corporate certification: ISO 9001
- Corporate certification: EN 1090
- Corporate certification: EcoVadis
- RoHS
- REACH
- The MUNK Group complies with a Code of Conduct
- The Supply Chain Act does not apply due to our size
- The materials used are listed in the technical specification
- Resource-saving production: own photovoltaic systems
- Energy-efficient consumption during production: LED lighting
- Repairability, durability and quality: 15-year warranty on series products made in Germany
- Recyclability: Our products are mostly made of aluminium, steel or wood and can be fed directly into the recycling process.
- Socially acceptable working conditions in production: fair wages, gender equality
- Economical and recyclable packaging: no use of polystyrene, predominantly use of wood and cardboard, small amounts of plastic
- No health hazards for the users
Scope of supply
- Ladder: 1 x
Certificates
Safety. Made in Germany.
Comparison table
| Product name | Rung straight ladder 350 mm wide without stabiliser 6 rungs | Rung straight ladder 350 mm wide without stabiliser 7 rungs | Rung straight ladder 350 mm wide without stabiliser 8 rungs | Rung straight ladder 350 mm wide without stabiliser 9 rungs | Rung straight ladder 350 mm wide without stabiliser 10 rungs | Rung straight ladder 350 mm wide without stabiliser 12 rungs | Rung straight ladder 350 mm wide without stabiliser 14 rungs | Rung straight ladder 350 mm wide without stabiliser 16 rungs | Rung straight ladder 350 mm wide without stabiliser 18 rungs | Rung straight ladder 350 mm wide without stabiliser 20 rungs | Rung straight ladder 350 mm wide without stabiliser 22 rungs | Rung straight ladder 350 mm wide without stabiliser 24 rungs |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Working height | 3 m | 3.3 m | 3.5 m | 3.7 m | 4.1 m | 4.4 m | 4.9 m | 5.4 m | 5.9 m | 6.4 m | 6.9 m | 7.4 m |
| Step design | Rungs | Rungs | Rungs | Rungs | Rungs | Rungs | Rungs | Rungs | Rungs | Rungs | Rungs | Rungs |
| Number of steps/rungs | 6 rungs | 7 rungs | 8 rungs | 9 rungs | 10 rungs | 12 rungs | 14 rungs | 16 rungs | 18 rungs | 20 rungs | 22 rungs | 24 rungs |
| Step/Rung height | 30 mm | 30 mm | 30 mm | 30 mm | 30 mm | 30 mm | 30 mm | 30 mm | 30 mm | 30 mm | 30 mm | 30 mm |
| Step depth | 30 mm | 30 mm | 30 mm | 30 mm | 30 mm | 30 mm | 30 mm | 30 mm | 30 mm | 30 mm | 30 mm | 30 mm |
| Step/Rung distance | 280 mm | 280 mm | 280 mm | 280 mm | 280 mm | 280 mm | 280 mm | 280 mm | 280 mm | 280 mm | 280 mm | 280 mm |
| Type of non-slip protection | Aluminium corrugated | Aluminium corrugated | Aluminium corrugated | Aluminium corrugated | Aluminium corrugated | Aluminium corrugated | Aluminium corrugated | Aluminium corrugated | Aluminium corrugated | Aluminium corrugated | Aluminium corrugated | Aluminium corrugated |
| Ladder length | 1.9 m | 2.2 m | 2.5 m | 2.8 m | 3 m | 3.59 m | 4.15 m | 4.72 m | 5.28 m | 5.85 m | 6.41 m | 6.97 m |
| Inclination | 70 ° | 70 ° | 70 ° | 70 ° | 70 ° | 70 ° | 70 ° | 70 ° | 70 ° | 70 ° | 70 ° | 70 ° |
| Outer width | 350 mm | 350 mm | 350 mm | 350 mm | 350 mm | 350 mm | 350 mm | 350 mm | 350 mm | 350 mm | 350 mm | 350 mm |
| Depth of side-rails | 58 mm | 58 mm | 58 mm | 58 mm | 58 mm | 58 mm | 58 mm | 73 mm | 73 mm | 85 mm | 85 mm | 85 mm |
| Width of side-rails | 24.5 mm | 24.5 mm | 24.5 mm | 24.5 mm | 24.5 mm | 24.5 mm | 24.5 mm | 24.5 mm | 24.5 mm | 24.5 mm | 24.5 mm | 24.5 mm |
| Max. load capacity | 150 kg | 150 kg | 150 kg | 150 kg | 150 kg | 150 kg | 150 kg | 150 kg | 150 kg | 150 kg | 150 kg | 150 kg |
| Design type | To lean against | To lean against | To lean against | To lean against | To lean against | To lean against | To lean against | To lean against | To lean against | To lean against | To lean against | To lean against |
| Weight | 3 kg | 3.44 kg | 4.06 kg | 4.5 kg | 5 kg | 7 kg | 8 kg | 9 kg | 12 kg | 13.1 kg | 14 kg | 15 kg |
| Transport dimensions | 1913 x 355 x 69 mm, 3 kg | 2195 x 355 x 69 mm, 3.44 kg | 2472 x 355 x 68 mm, 4.06 kg | 2755 x 355 x 68 mm, 4.5 kg | 3034 x 355 x 65 mm, 5 kg | 3594 x 355 x 68 mm, 7 kg | 4160 x 355 x 68 mm, 8 kg | 4720 x 355 x 83 mm, 9 kg | 5280 x 355 x 83 mm, 12 kg | 5851 x 355 x 95 mm, 13.1 kg | 6411 x 355 x 95 mm, 14 kg | 6971 x 355 x 95 mm, 15 kg |
| Business division | MUNK Günzburger Steigtechnik | MUNK Günzburger Steigtechnik | MUNK Günzburger Steigtechnik | MUNK Günzburger Steigtechnik | MUNK Günzburger Steigtechnik | MUNK Günzburger Steigtechnik | MUNK Günzburger Steigtechnik | MUNK Günzburger Steigtechnik | MUNK Günzburger Steigtechnik | MUNK Günzburger Steigtechnik | MUNK Günzburger Steigtechnik | MUNK Günzburger Steigtechnik |
| Article no. | 011173 | 011148 | 011149 | 011100 | 011150 | 011101 | 011151 | 011152 | 011169 | 011170 | 011171 | 011172 |
| Price | € 85.00 | € 89.00 | € 98.00 | € 109.00 | € 120.00 | € 149.00 | € 179.00 | € 233.00 | € 315.00 | € 375.00 | € 420.00 | € 468.00 |
| Buy online |
Note: Working heights
- National regulations (e.g. TRBS 2121 Part 2 in Germany) must be complied with with regard to the maximum working height when using the ladder as a workstation.
- Information on TRBS 2121 Part 2 has been summarised on our Service page
- Read our tips and tricks on how to calculate working height
