Order no.
: 011013

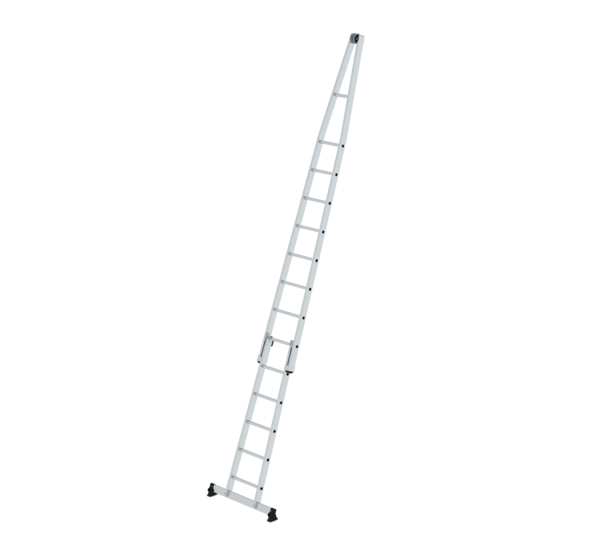

Rung window cleaner’s ladder set with nivello® stabiliser
€ 567.00
RRP without VAT
Specifications
Working height
5 m
Ladder length
4.69 m
Step/Rung height
30 mm
Step depth
30 mm
Step/Rung distance
280 mm
Upper outer width
128 mm
Lower outer width
900 mm
Stabiliser width
900 mm
Inclination
70 °
Depth of side-rails
73 mm
Width of side-rails
25 mm
Max. load capacity
120 kg
Design type
To lean against | 2-part
Weight
12.7 kg
Transport dimensions
1702 x 905 x 95 mm, 4.5 kg
Transport dimensions 2
2900 x 430 x 137 mm, 6.5 kg
Business division
MUNK Günzburger Steigtechnik
Article no.
011013
Price
€ 567.00
Information
- Rung window cleaner's ladder made of aluminium
- Stable rectangular tube side-rails
- Rectangular rungs grooved on both sides, 30 x 30 mm
- 4-fold edged step-to-side-rail connection
- Secure push-fit connection with additional hook lock
- Upper ladder with castors and abrasion-resistant contact rubber pad with wedge cut-out
- Lower ladder with nivello® stabiliser for extra stability and safe ascent (enclosed separately)
- Rung distance: 280 mm
- Maximum load: 120 kg
- Corporate certification: ISO 9001
- Corporate certification: EN 1090
- Corporate certification: EcoVadis
- RoHS
- REACH
- The MUNK Group complies with a Code of Conduct
- The Supply Chain Act does not apply due to our size
- The materials used are listed in the technical specification
- Resource-saving production: own photovoltaic systems
- Energy-efficient consumption during production: LED lighting
- Repairability, durability and quality: 15-year warranty on series products made in Germany
- Recyclability: Our products are mostly made of aluminium, steel or wood and can be fed directly into the recycling process.
- Socially acceptable working conditions in production: fair wages, gender equality
- Economical and recyclable packaging: no use of polystyrene, predominantly use of wood and cardboard, small amounts of plastic
- No health hazards for the users
Scope of supply
- Ladder: 1 x
- Stabiliser (enclosed separately): 1 x
- Instructions for use and operation: 1 x
Certificates
Safety. Made in Germany.
Comparison table
| Product name | Rung window cleaner’s ladder set with nivello® stabiliser 2-section | Rung window cleaner’s ladder set with nivello® stabiliser 3-section | Rung window cleaner’s ladder set with nivello® stabiliser 4-section |
|---|---|---|---|
| Working height | 5 m | 6.4 m | 8 m |
| Ladder length | 4.69 m | 6.09 m | 7.49 m |
| Step/Rung height | 30 mm | 30 mm | 30 mm |
| Step depth | 30 mm | 30 mm | 30 mm |
| Step/Rung distance | 280 mm | 280 mm | 280 mm |
| Upper outer width | 128 mm | 128 mm | 128 mm |
| Lower outer width | 900 mm | 900 mm | 900 mm |
| Stabiliser width | 900 mm | 900 mm | 900 mm |
| Inclination | 70 ° | 70 ° | 70 ° |
| Depth of side-rails | 73 mm | 73 mm | 73 mm |
| Width of side-rails | 25 mm | 25 mm | 25 mm |
| Max. load capacity | 120 kg | 120 kg | 120 kg |
| Design type | To lean against | 2-part | To lean against | 3-part | To lean against | 4-part |
| Weight | 12.7 kg | 17 kg | 21.3 kg |
| Transport dimensions | 1702 x 905 x 95 mm, 4.5 kg | 1712 x 905 x 135 mm, 7.5 kg | 1712 x 905 x 195 mm, 10.5 kg |
| Transport dimensions 2 | 2900 x 430 x 137 mm, 6.5 kg | 2900 x 430 x 137 mm, 6.5 kg | 2900 x 430 x 137 mm, 6.5 kg |
| Business division | MUNK Günzburger Steigtechnik | MUNK Günzburger Steigtechnik | MUNK Günzburger Steigtechnik |
| Article no. | 011013 | 011018 | 011023 |
| Price | € 567.00 | € 785.00 | € 1,003.00 |
| Buy online |
Technical changes and price changes reserved. Dimensions and weights are approximate values. Liability for errors and mistakes excluded. Illustrations similar, some illustrations show special equipment. Preview images are representative of a product family and may therefore differ visually from the actual product you are looking for, e.g. in terms of number of steps or material.
