Show all photos
Order no.
: 111001

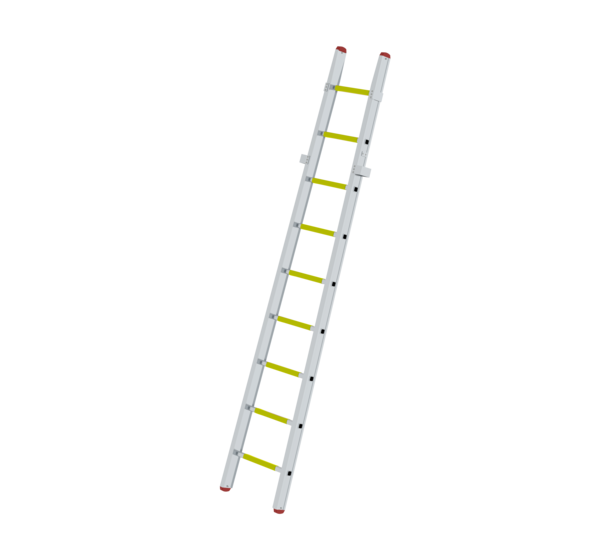

Scaling ladder lower section DIN EN 1147, photoluminescent
Price on demand
Specifications
Rescue height
1.6 m
Intended use
Rescue
Ladder length
2.7 m
Ladder length, 4 scaling ladders
8.4 m
Setting angle
70 °
Outer width
485 mm
Ladder feet
Ladder shoe
Depth of side-rails
74 mm
Width of side-rails
35 mm
Step/Rung height
28 mm
Step depth
29 mm
Number of steps/rungs
9 rungs
Step/Rung distance
273 mm
Max. load capacity
216 kg
Persons max.
2
Material
Aluminium
Rung covering
Glow (yellow luminescent)
Weight
9 kg
Transport dimensions
84 x 489 x 2665 mm, 7.5 kg
Business division
MUNK Rettungstechnik
Article no.
111001
Information
- Rescue ladder compliant with DIN EN 1147
- Made of aluminium
- Secure push-fit connections with spring-loaded locking pin
- Conical side-rail guide for safe stance
- Corrosion-resistant fixtures made of galvanised steel
- Permissible load: 216 kg / 2 people
- Side-rails and rungs made of high-strength aluminium
- With yellow luminescent, heat-insulating and non-slip plastic covering
- 4-fold edged rung-to-side-rail connection
- Non-slip and replaceable ladder shoes
- Corporate certification: ISO 9001
- Corporate certification: EN 1090
- Corporate certification: EcoVadis
- RoHS
- REACH
- The MUNK Group complies with a Code of Conduct
- The Supply Chain Act does not apply due to our size
- The materials used are listed in the technical specification
- Resource-saving production: own photovoltaic systems
- Energy-efficient consumption during production: LED lighting
- Repairability, durability and quality: 15-year warranty on series products made in Germany
- Recyclability: Our products are mostly made of aluminium, steel or wood and can be fed directly into the recycling process.
- Socially acceptable working conditions in production: fair wages, gender equality
- Economical and recyclable packaging: no use of polystyrene, predominantly use of wood and cardboard, small amounts of plastic
- No health hazards for the users
Comparison table
| Product name | Scaling ladder lower section DIN EN 1147, photoluminescent | Scaling ladder lower section DIN EN 1147 |
|---|---|---|
| Rescue height | 1.6 m | 1.6 m |
| Intended use | Rescue | Rescue |
| Ladder length | 2.7 m | 2.7 m |
| Ladder length, 4 scaling ladders | 8.4 m | 8.4 m |
| Setting angle | 70 ° | 70 ° |
| Outer width | 485 mm | 485 mm |
| Ladder feet | Ladder shoe | Ladder shoe |
| Depth of side-rails | 74 mm | 74 mm |
| Width of side-rails | 35 mm | 35 mm |
| Step/Rung height | 28 mm | 28 mm |
| Step depth | 29 mm | 29 mm |
| Number of steps/rungs | 9 rungs | 9 rungs |
| Step/Rung distance | 273 mm | 273 mm |
| Max. load capacity | 216 kg | 216 kg |
| Persons max. | 2 | 2 |
| Material | Aluminium | Aluminium |
| Rung covering | Glow (yellow luminescent) | Standard (red) |
| Weight | 9 kg | 9 kg |
| Transport dimensions | 84 x 489 x 2665 mm, 7.5 kg | 84 x 489 x 2665 mm, 7.5 kg |
| Business division | MUNK Rettungstechnik | MUNK Rettungstechnik |
| Article no. | 111001 | 115001 |
Product video
Technical changes and price changes reserved. Dimensions and weights are approximate values. Liability for errors and mistakes excluded. Illustrations similar, some illustrations show special equipment. Preview images are representative of a product family and may therefore differ visually from the actual product you are looking for, e.g. in terms of number of steps or material.
