Specifications
Number of steps/rungs
4 steps
Business division
MUNK Günzburger Steigtechnik
Transport dimensions
1650 x 630 x 100 mm, 6.6 kg
Article no.
600584
Price
€ 472.00
Information
- Fixed stairs with aluminium platform with inclination 60°
- Step and platform widths: 600, 800 and 1,000 mm
- Step depth: 225 mm
- Platform length: 660 mm
- Last step fitted at the same height as the platform
- Standard step and platform surface, grooved aluminium (R 9), optionally also available with other surfaces (see overview on right)

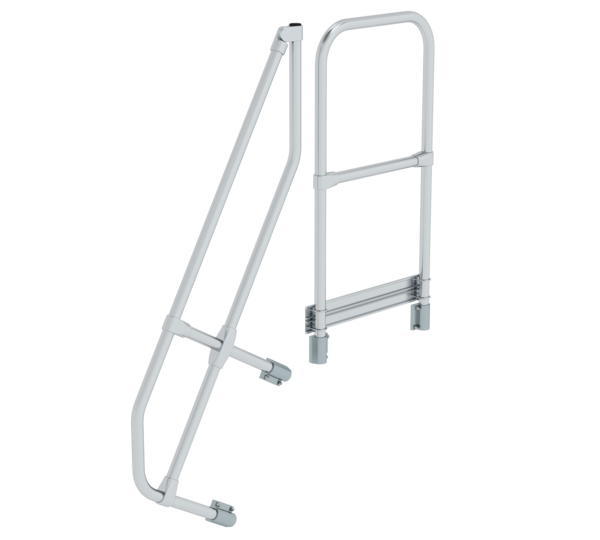

- Handrail and railing on one side, Ø 40 mm, with bolted connecting elements as standard (height: 1,100 mm) as standard
- Second handrail as per DIN EN ISO 14122-3 required and available at asurcharge
- Front side railing available at a surcharge
- Easy installation thanks to delivery in pre-assembled modules including assembly instructions
- Maximum load: 1.5 kN/m2, step load 150 kg, total load 300 kg
- An intermediate platform is required for stairs with a vertical height of 3,000 mm or more (at a surcharge)
- If no support surfaces or attachments are provided by the customer, a triangular console must be used for mounting
- Note: The standard version includes connecting parts of galvanised steel, which are suitable for indoor use. At a surcharge, they can also be made of stainless steel, which is recommended for outdoor use
- Corporate certification: ISO 9001
- Corporate certification: EN 1090
- Corporate certification: EcoVadis
- RoHS
- REACH
- The MUNK Group complies with a Code of Conduct
- The Supply Chain Act does not apply due to our size
- The materials used are listed in the technical specification
- Resource-saving production: own photovoltaic systems
- Energy-efficient consumption during production: LED lighting
- Repairability, durability and quality: 15-year warranty on series products made in Germany
- Recyclability: Our products are mostly made of aluminium, steel or wood and can be fed directly into the recycling process.
- Socially acceptable working conditions in production: fair wages, gender equality
- Economical and recyclable packaging: no use of polystyrene, predominantly use of wood and cardboard, small amounts of plastic
- No health hazards for the users
Scope of supply
- Stair module: 1 x
- Handrail (enclosed separately): 1 x
- Garde-corps: 1 x
- Installation material: 1 x
- Assembly instructions: 1 x
Safety. Made in Germany.
Comparison table
| Product name | Second handrail for 60° stairs with platform 4 steps | Second handrail for 60° stairs with platform 5 steps | Second handrail for 60° stairs with platform 6 steps | Second handrail for 60° stairs with platform 7 steps | Second handrail for 60° stairs with platform 8 steps | Second handrail for 60° stairs with platform 9 steps | Stairs with 60° platform second handrail for 10 steps 10 steps | Second handrail for 60° stairs with platform 11 steps | Second handrail for 60° stairs with platform 12 steps | Second handrail for 60° stairs with platform 13 steps | Second handrail for 60° stairs with platform 14 steps | Second handrail for 60° stairs with platform 15 steps | Second handrail for 60° stairs with platform 16 steps |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Number of steps/rungs | 4 steps | 5 steps | 6 steps | 7 steps | 8 steps | 9 steps | 10 steps | 11 steps | 12 steps | 13 steps | 14 steps | 15 steps | 16 steps |
| Business division | MUNK Günzburger Steigtechnik | MUNK Günzburger Steigtechnik | MUNK Günzburger Steigtechnik | MUNK Günzburger Steigtechnik | MUNK Günzburger Steigtechnik | MUNK Günzburger Steigtechnik | MUNK Günzburger Steigtechnik | MUNK Günzburger Steigtechnik | MUNK Günzburger Steigtechnik | MUNK Günzburger Steigtechnik | MUNK Günzburger Steigtechnik | MUNK Günzburger Steigtechnik | MUNK Günzburger Steigtechnik |
| Transport dimensions | 1650 x 630 x 100 mm, 6.6 kg | 1910 x 630 x 100 mm, 10.1 kg | 2220 x 630 x 100 mm, 8.1 kg | 2480 x 630 x 100 mm, 9.3 kg | 2750 x 630 x 100 mm, 9.6 kg | 3010 x 630 x 100 mm, 9.8 kg | 3280 x 630 x 100 mm, 10.2 kg | 3540 x 630 x 100 mm, 11.3 kg | 3810 x 630 x 100 mm, 11.6 kg | 4080 x 630 x 100 mm, 11.8 kg | 4350 x 630 x 100 mm, 12.1 kg | 4610 x 630 x 100 mm, 12.4 kg | 4980 x 630 x 100 mm, 13.5 kg |
| Article no. | 600584 | 600585 | 600586 | 600587 | 600588 | 600589 | 600590 | 600591 | 600592 | 600593 | 600594 | 600595 | 600596 |
| Price | € 472.00 | € 476.00 | € 534.00 | € 542.00 | € 570.00 | € 587.00 | € 598.00 | € 601.00 | € 632.00 | € 683.00 | € 705.00 | € 711.00 | € 729.00 |
| Buy online |
Configurator
Configuring, enquiring about and ordering individual products could not be easier with our product configurator for stairs, bridging steps and mobile platform stairs. Simply enter your required dimensions and versions step by step, and a rotating 3D model will appear in real time. To save your configuration and request a quotation requires a login which will be set up for you by our Sales team.
Technical changes and price changes reserved. Dimensions and weights are approximate values. Liability for errors and mistakes excluded. Illustrations similar, some illustrations show special equipment. Preview images are representative of a product family and may therefore differ visually from the actual product you are looking for, e.g. in terms of number of steps or material.
