Order no.
: 062004

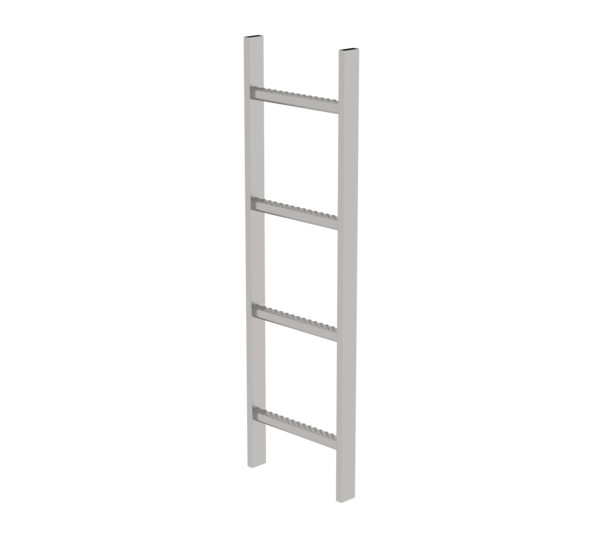

Shaft ladder, V4A stainless steel, 300 mm clear width
€ 211.00
RRP without VAT
Specifications
Clear width
300 mm
Ladder length
1.12 m
Number of steps/rungs
4 rungs
Step depth
30 mm
Depth of side-rails
50 mm
Width of side-rails
20 mm
Outer width
340 mm
Max. load capacity
150 kg
Material
Stainless steel V4A
Weight
5 kg
Transport dimensions
1120 x 340 x 50 mm, 5 kg
Business division
MUNK Günzburger Steigtechnik
Article no.
062004
Price
€ 211.00
Information
- Cured and passivated
- Clear width 300 mm
- Rectangular tube side-rails, 50 x 20 mm
- Non-slip perforated rungs
- Various wall anchors available as accessories
- Corporate certification: ISO 9001
- Corporate certification: EN 1090
- Corporate certification: EcoVadis
- RoHS
- REACH
- The MUNK Group complies with a Code of Conduct
- The Supply Chain Act does not apply due to our size
- The materials used are listed in the technical specification
- Resource-saving production: own photovoltaic systems
- Energy-efficient consumption during production: LED lighting
- Repairability, durability and quality: 15-year warranty on series products made in Germany
- Recyclability: Our products are mostly made of aluminium, steel or wood and can be fed directly into the recycling process.
- Socially acceptable working conditions in production: fair wages, gender equality
- Economical and recyclable packaging: no use of polystyrene, predominantly use of wood and cardboard, small amounts of plastic
- No health hazards for the users
Scope of supply
- Ladder: 1 x
Safety. Made in Germany.
Comparison table
| Product name | Shaft ladder, V4A stainless steel, 300 mm clear width 4 rungs | Shaft ladder, V4A stainless steel, 300 mm clear width 5 rungs | Shaft ladder, V4A stainless steel, 300 mm clear width 6 rungs | Shaft ladder, V4A stainless steel, 300 mm clear width 7 rungs | Shaft ladder, V4A stainless steel, 300 mm clear width 8 rungs | Shaft ladder, V4A stainless steel, 300 mm clear width 9 rungs | Shaft ladder, V4A stainless steel, 300 mm clear width 10 rungs | Shaft ladder, V4A stainless steel, 300 mm clear width 11 rungs | Shaft ladder, V4A stainless steel, 300 mm clear width 12 rungs | Shaft ladder, V4A stainless steel, 300 mm clear width 13 rungs | Shaft ladder, V4A stainless steel, 300 mm clear width 14 rungs | Shaft ladder, V4A stainless steel, 300 mm clear width 15 rungs |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Clear width | 300 mm | 300 mm | 300 mm | 300 mm | 300 mm | 300 mm | 300 mm | 300 mm | 300 mm | 300 mm | 300 mm | 300 mm |
| Ladder length | 1.12 m | 1.4 m | 1.68 m | 1.96 m | 2.24 m | 2.52 m | 2.8 m | 3.08 m | 3.36 m | 3.64 m | 3.92 m | 4.2 m |
| Number of steps/rungs | 4 rungs | 5 rungs | 6 rungs | 7 rungs | 8 rungs | 9 rungs | 10 rungs | 11 rungs | 12 rungs | 13 rungs | 14 rungs | 15 rungs |
| Step depth | 30 mm | 30 mm | 30 mm | 30 mm | 30 mm | 30 mm | 30 mm | 30 mm | 30 mm | 30 mm | 30 mm | 30 mm |
| Depth of side-rails | 50 mm | 50 mm | 50 mm | 50 mm | 50 mm | 50 mm | 50 mm | 50 mm | 50 mm | 50 mm | 50 mm | 50 mm |
| Width of side-rails | 20 mm | 20 mm | 20 mm | 20 mm | 20 mm | 20 mm | 20 mm | 20 mm | 20 mm | 20 mm | 20 mm | 20 mm |
| Outer width | 340 mm | 340 mm | 340 mm | 340 mm | 340 mm | 340 mm | 340 mm | 340 mm | 340 mm | 340 mm | 340 mm | 340 mm |
| Max. load capacity | 150 kg | 150 kg | 150 kg | 150 kg | 150 kg | 150 kg | 150 kg | 150 kg | 150 kg | 150 kg | 150 kg | 150 kg |
| Material | Stainless steel V4A | Stainless steel V4A | Stainless steel V4A | Stainless steel V4A | Stainless steel V4A | Stainless steel V4A | Stainless steel V4A | Stainless steel V4A | Stainless steel V4A | Stainless steel V4A | Stainless steel V4A | Stainless steel V4A |
| Weight | 5 kg | 6 kg | 7.5 kg | 9 kg | 10 kg | 11.5 kg | 12.5 kg | 14 kg | 14.5 kg | 15.5 kg | 17 kg | 19 kg |
| Transport dimensions | 1120 x 340 x 50 mm, 5 kg | 1400 x 340 x 50 mm, 6 kg | 1680 x 340 x 50 mm, 7.5 kg | 1960 x 340 x 50 mm, 9 kg | 2240 x 340 x 50 mm, 10 kg | 2520 x 340 x 50 mm, 11.5 kg | 2800 x 340 x 50 mm, 12.5 kg | 3080 x 340 x 50 mm, 14 kg | 3360 x 340 x 50 mm, 14.5 kg | 3640 x 340 x 50 mm, 15.5 kg | 3920 x 340 x 50 mm, 17 kg | 4200 x 340 x 50 mm, 19 kg |
| Business division | MUNK Günzburger Steigtechnik | MUNK Günzburger Steigtechnik | MUNK Günzburger Steigtechnik | MUNK Günzburger Steigtechnik | MUNK Günzburger Steigtechnik | MUNK Günzburger Steigtechnik | MUNK Günzburger Steigtechnik | MUNK Günzburger Steigtechnik | MUNK Günzburger Steigtechnik | MUNK Günzburger Steigtechnik | MUNK Günzburger Steigtechnik | MUNK Günzburger Steigtechnik |
| Article no. | 062004 | 062005 | 062006 | 062007 | 062008 | 062009 | 062010 | 062011 | 062012 | 062013 | 062014 | 062015 |
| Price | € 211.00 | € 272.00 | € 333.00 | € 356.00 | € 404.00 | € 498.00 | € 511.00 | € 541.00 | € 607.00 | € 637.00 | € 683.00 | € 729.00 |
| Buy online |
Technical changes and price changes reserved. Dimensions and weights are approximate values. Liability for errors and mistakes excluded. Illustrations similar, some illustrations show special equipment. Preview images are representative of a product family and may therefore differ visually from the actual product you are looking for, e.g. in terms of number of steps or material.
