Order no.
: 530100

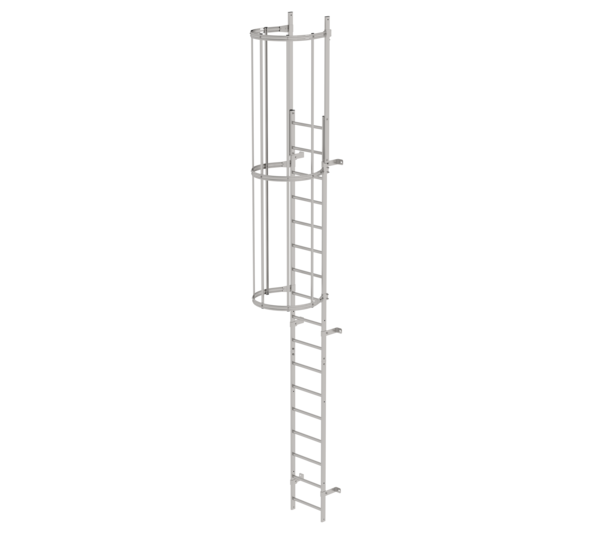

Single-flight vertical ladder with back protection stainless steel
€ 3,331.00
RRP without VAT
Specifications
Climbing height
4.76 m
Ladder length incl. exit side-rail
5.96 m
Outer width
520 mm
Depth of side-rails
60 mm
Max. load capacity
150 kg
Wall distance
200 mm
Design type
Single-flight
Material
Stainless steel
Weight
61 kg
Business division
MUNK Günzburger Steigtechnik
Article no.
530100
Price
€ 3,331.00
Information

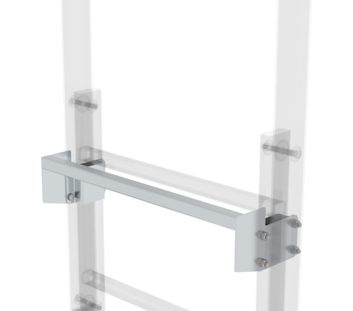

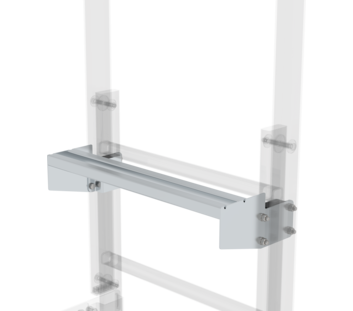

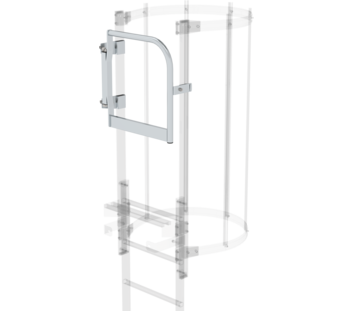

- Single-flight vertical ladders according to DIN 18799-1/-3, DIN 14094-1 and DIN EN ISO 14122-4: Additional components, such as exit steps, railing and safety doors, may be required depending on the exit situation on site. These components are not included as a complete kit and need to be ordered separately.
- Irrespective of the climbing height:
- Either back protection or safety railing can be used as fall protection (combination not permitted as the rescue of persons is then hindered by the back protection)
- The need for an occupational medical examination for suitability for working at height (e.g. G 41) depends on the risk assessment (e.g. total climbing height, type of safety railing) of the respective vertical ladder systems
- Proof of the load-bearing capacity of the underlying surface must be provided for each construction project by a responsible stability expert
- The vertical overlap of successive ladder flights must be at least 1,680 mm
- At unsecured exit points, railings attached to both sides of the vertical ladder or led into the exit level are required

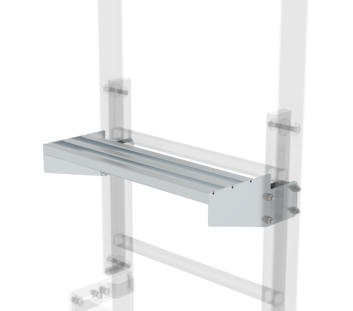

- Gap at exit step must not be larger than 75 mm
- Step-on dimension: Distance from entry level to the first rung 100–400 mm
- When exiting forwards, the uppermost rung must be at the height of the exit side-rail
- Vertical ladders with fall protection require at least 800 × 800 mm clear space available in front of the ladder when climbing off it. These dimensions must also be observed for new installations in the existing system
- These dimensions should also be complied with for new installations in the existing system
- The clearances between the vertical ladder system and the railing must not exceed 180 mm
- The connection to the fall protection must be established and released from a secured standing position
- For safe gripping of the side-rails, the clearance to adjacent parts around the side-rails must be at least 75 mm (except for components forming part of the vertical ladder system)
- Corporate certification: ISO 9001
- Corporate certification: EN 1090
- Corporate certification: EcoVadis
- RoHS
- REACH
- The MUNK Group complies with a Code of Conduct
- The Supply Chain Act does not apply due to our size
- The materials used are listed in the technical specification
- Resource-saving production: own photovoltaic systems
- Energy-efficient consumption during production: LED lighting
- Repairability, durability and quality: 15-year warranty on series products made in Germany
- Recyclability: Our products are mostly made of aluminium, steel or wood and can be fed directly into the recycling process.
- Socially acceptable working conditions in production: fair wages, gender equality
- Economical and recyclable packaging: no use of polystyrene, predominantly use of wood and cardboard, small amounts of plastic
- No health hazards for the users
Scope of supply
- 068264 - Ladder section stainless steel: 1 x
- 068265 - Ladder section stainless steel: 1 x
- 068243 - Exit side-rail straight: 2 x
- 068249 - Wall anchor, rigid, 200 mm, stainless steel: 6 x
- 068234 - Ø 700 mm back protection hoop: 3 x
- 068235 - Back protection hoop strut, 3,000mm long: 5 x
- 068236 - Vertical ladder connector 200 mm: 2 x
Safety. Made in Germany.
Comparison table

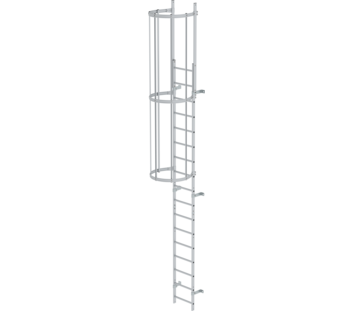

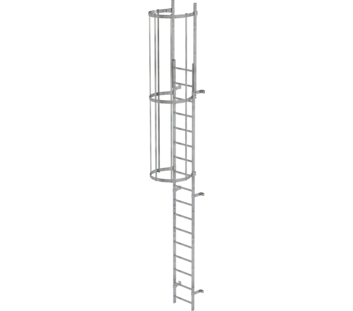

| Product name | Single-flight vertical ladder with back protection stainless steel 5.96m | Single-flight vertical ladder with back protection stainless steel 6.80m | Single-flight vertical ladder with back protection stainless steel 7.64m | Single-flight vertical ladder with back protection stainless steel 8.48m | Single-flight vertical ladder with back protection stainless steel 9.60m | Single-flight vertical ladder with back protection stainless steel 10.72m |
|---|---|---|---|---|---|---|
| Climbing height | 4.76 m | 5.6 m | 6.44 m | 7.28 m | 8.4 m | 9.52 m |
| Ladder length incl. exit side-rail | 5.96 m | 6.8 m | 7.64 m | 8.48 m | 9.6 m | 10.72 m |
| Outer width | 520 mm | 520 mm | 520 mm | 520 mm | 520 mm | 520 mm |
| Depth of side-rails | 60 mm | 60 mm | 60 mm | 60 mm | 60 mm | 60 mm |
| Max. load capacity | 150 kg | 150 kg | 150 kg | 150 kg | 150 kg | 150 kg |
| Wall distance | 200 mm | 200 mm | 200 mm | 200 mm | 200 mm | 200 mm |
| Design type | Single-flight | Single-flight | Single-flight | Single-flight | Single-flight | Single-flight |
| Material | Stainless steel | Stainless steel | Stainless steel | Stainless steel | Stainless steel | Stainless steel |
| Weight | 61 kg | 76 kg | 92 kg | 99 kg | 114 kg | 134 kg |
| Business division | MUNK Günzburger Steigtechnik | MUNK Günzburger Steigtechnik | MUNK Günzburger Steigtechnik | MUNK Günzburger Steigtechnik | MUNK Günzburger Steigtechnik | MUNK Günzburger Steigtechnik |
| Article no. | 530100 | 530105 | 530110 | 530115 | 530120 | 530125 |
| Price | € 3,331.00 | € 4,132.00 | € 5,037.00 | € 5,340.00 | € 6,220.00 | € 7,366.00 |
| Buy online |
Fixed ladders overview
All fixed ladders / vertical ladders at a glance:
- Single-flight vertical ladders in accordance with DIN 18799-1/-3, DIN 14094-1 and DIN EN ISO 14122-4 (depending on the choice of standard and the situation on site at the exit, additional components such as exit steps, railings and safety doors may be required)
- DIN 18799-1: Stationary multiple-flight vertical ladders on buildings
- DIN 14094-1: Multiple-flight emergency ladder systems (emergency ladders)
- DIN EN ISO 14122-4: Stationary multiple-flight vertical ladders on machinery
